General Purpose Batteries

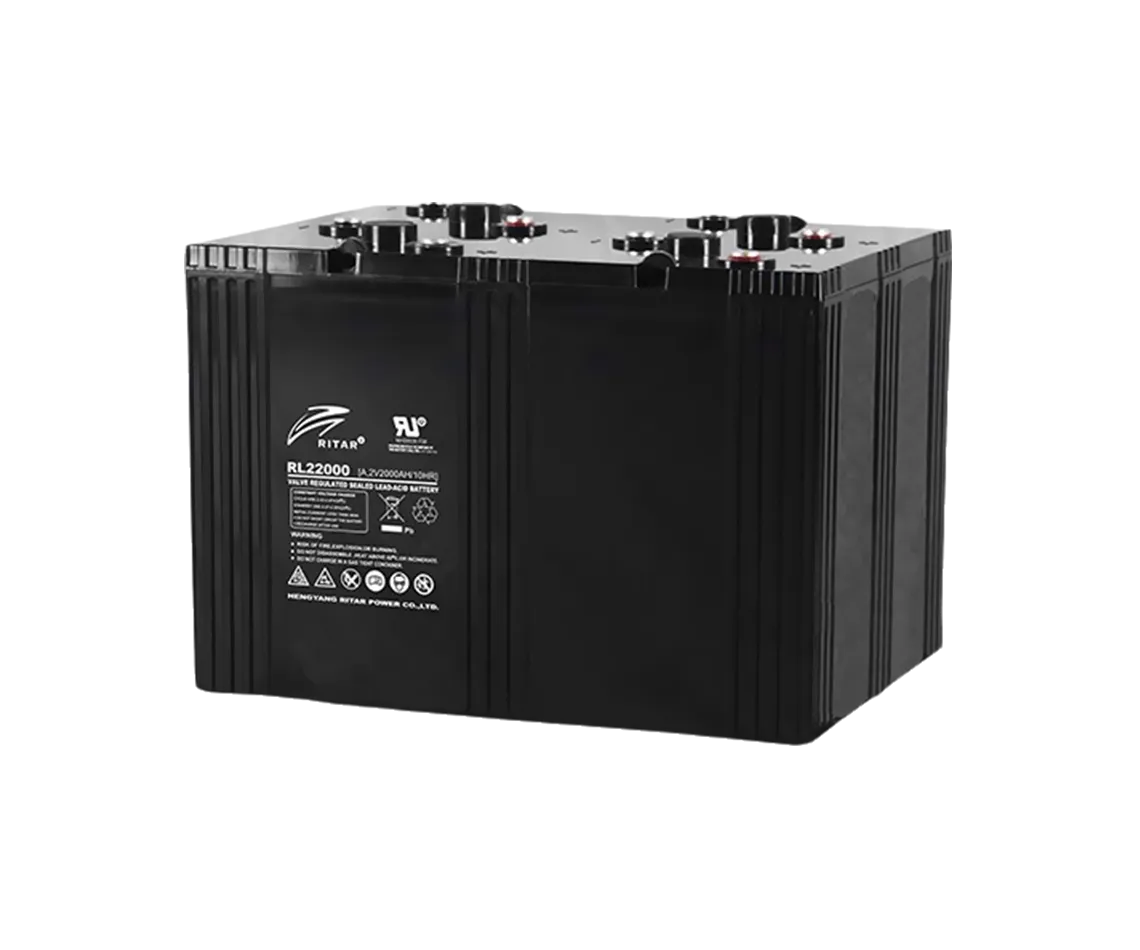

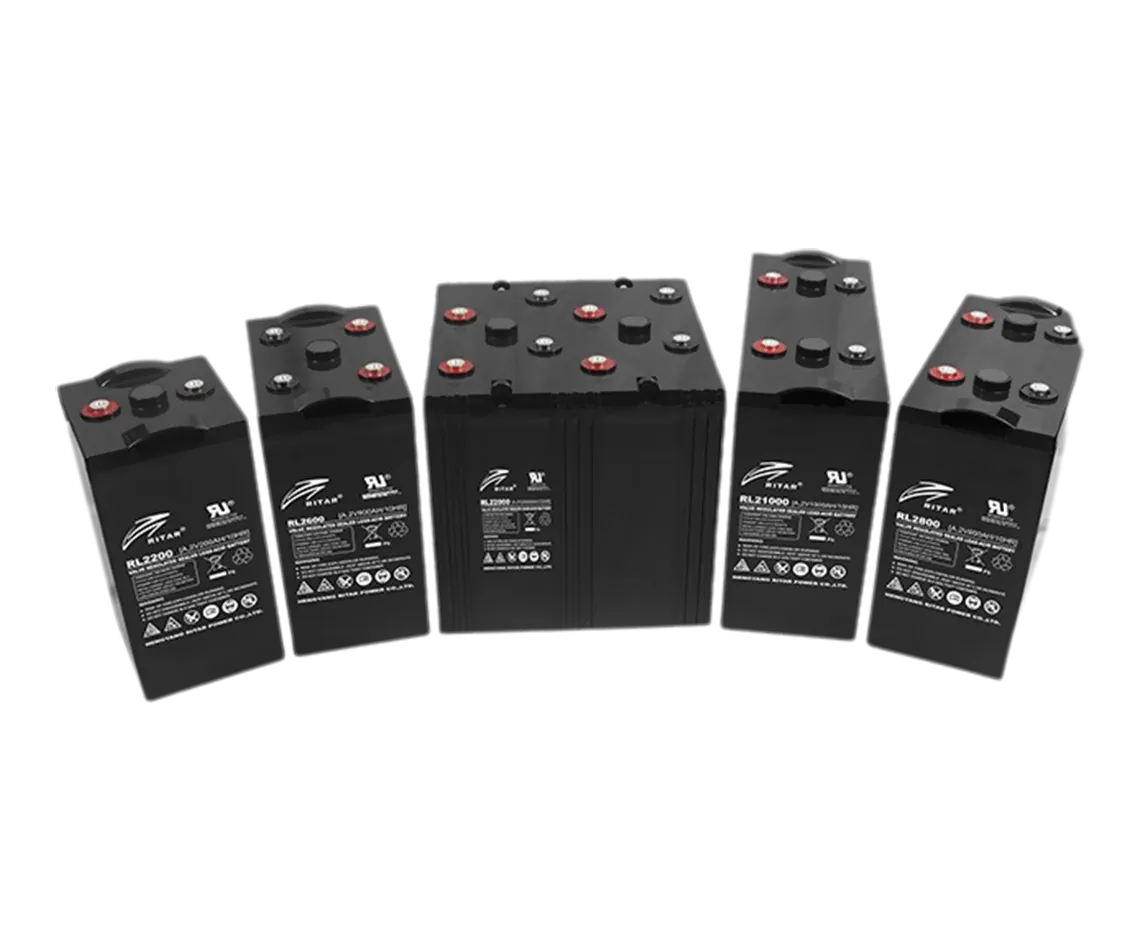

The RL series battery offers a 20-year design life in float service. Featuring heavy-duty grids, thicker plates, special additives, and advanced AGM technology, the RL series delivers consistent performance and extended service life. Its innovative grid design minimizes internal resistance, resulting in higher energy density and superior high-rate discharge capabilities, making it ideal for communication back-up power and EPS/UPS systems.
200Ah-3000Ah
2V
20 years
≤3 %/month
≥99%
-20°C - 60°C
| Battery model | Rated voltage （V） | Rated capacity C10（Ah） | Battery size | Terminal options | Terminal location | |||
| Length/mm | Width/mm | Height/mm | Total height/mm | |||||
| RL2-200 | 2 | 200 | 171 | 111 | 328 | 340 | F10(M8) | G |
| RL2-220 | 2 | 220 | 171 | 110 | 328 | 340 | F10(M8) | G |
| RL2-250 | 2 | 250 | 171 | 111 | 328 | 340 | F10(M8) | G |
| RL2-270 | 2 | 270 | 170 | 102 | 330 | 342 | F10(M8) | G |

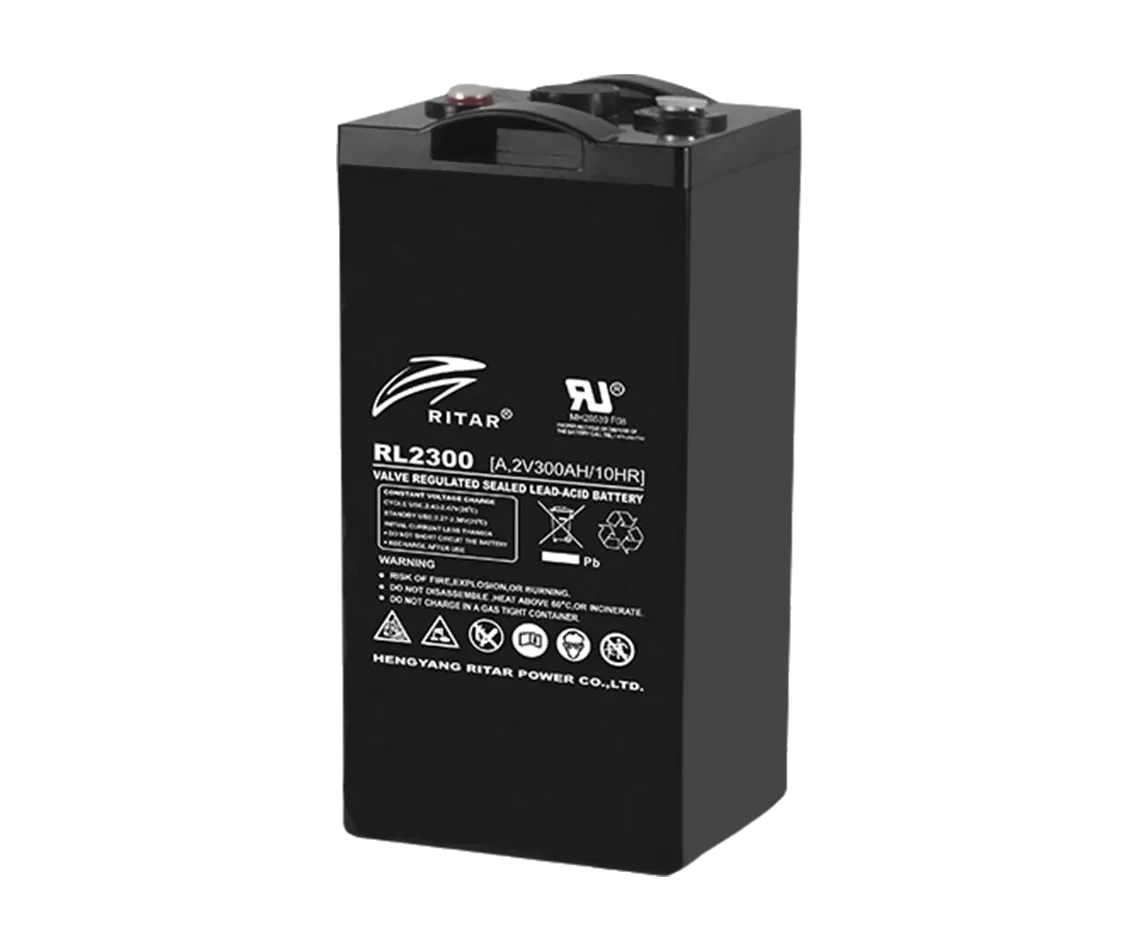

| RL2-300 | 2 | 300 | 170 | 150 | 330 | 342 | F10(M8) | G |
| RL2-400 | 2 | 400 | 170 | 150 | 330 | 342 | F10(M8) | G |

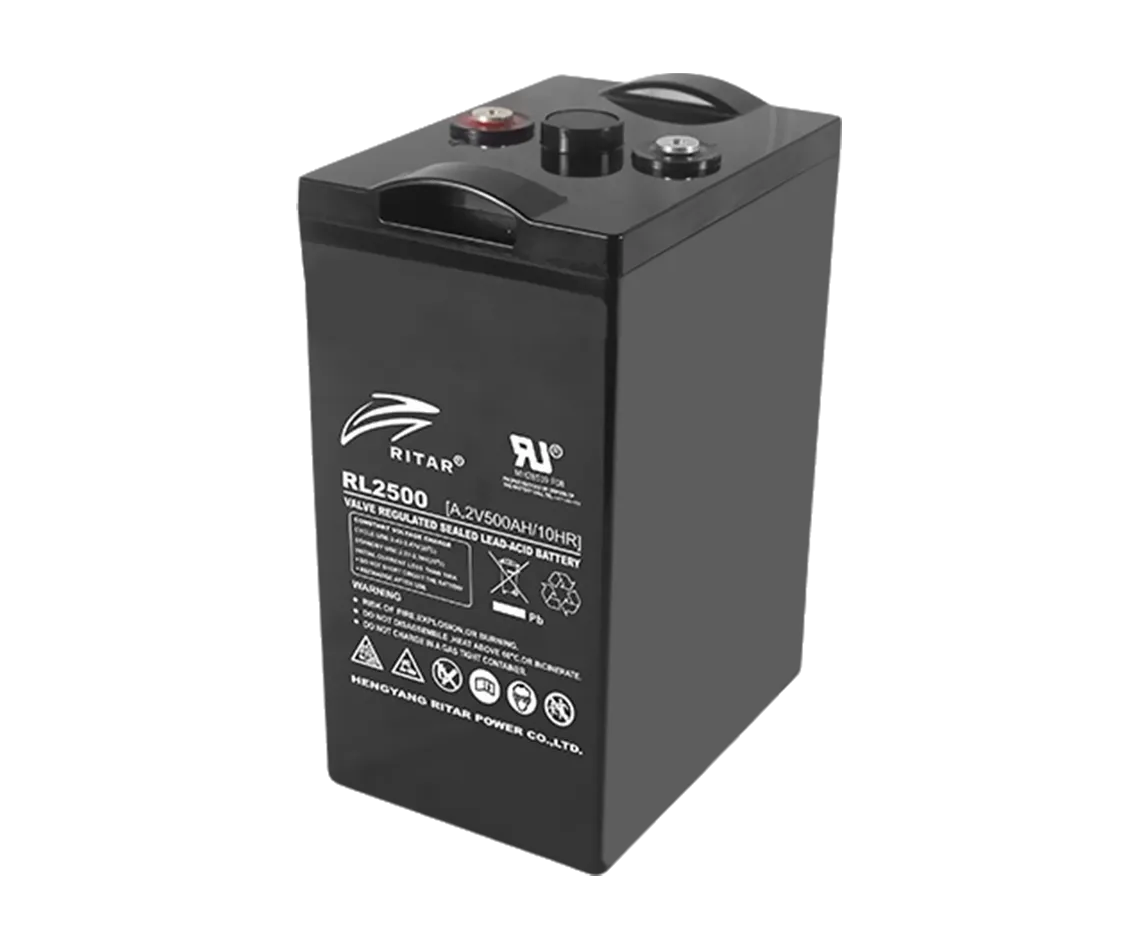

| RL2-500 | 2 | 500 | 211 | 172 | 330 | 342 | F10(M8) | G |
| RL2-600 | 2 | 600 | 241 | 172 | 330 | 342 | F10(M8) | G |

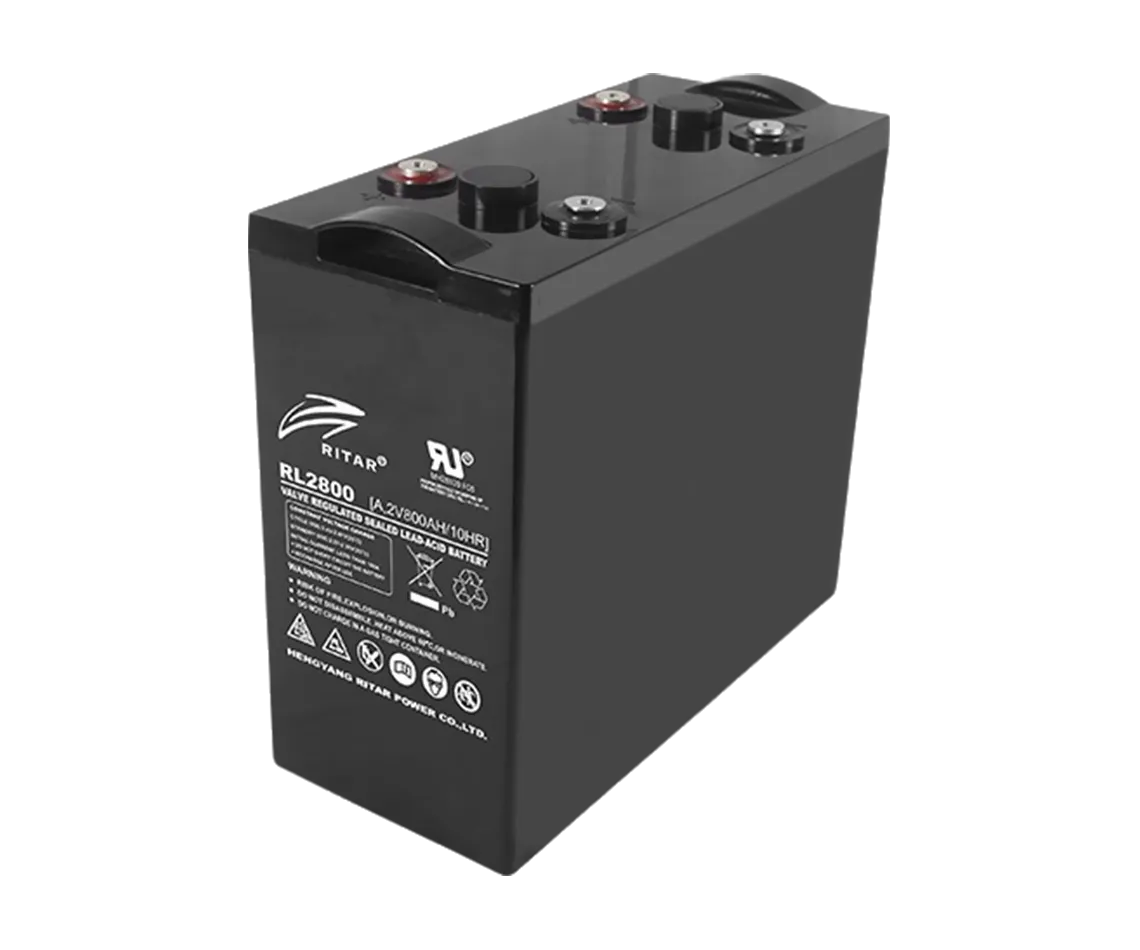

| RL2-800 | 2 | 800 | 301 | 172 | 330 | 342 | F10(M8) | H |
| RL2-1000 | 2 | 1000 | 410 | 172 | 330 | 342 | F10(M8) | H |
| RL2-1200 | 2 | 1200 | 473 | 172 | 330 | 342 | F10(M8) | H |
| RL2-1500 | 2 | 1500 | 355 | 337 | 330 | 342 | F10(M8) | K |
| RL2-2000 | 2 | 2000 | 476 | 337 | 330 | 342 | F10(M8) | K |
| RL2-2500 | 2 | 2500 | 476 | 337 | 330 | 342 | F10(M8) | K |
| RL2-3000 | 2 | 3000 | 696 | 340 | 330 | 342 | F10(M8) | L |
