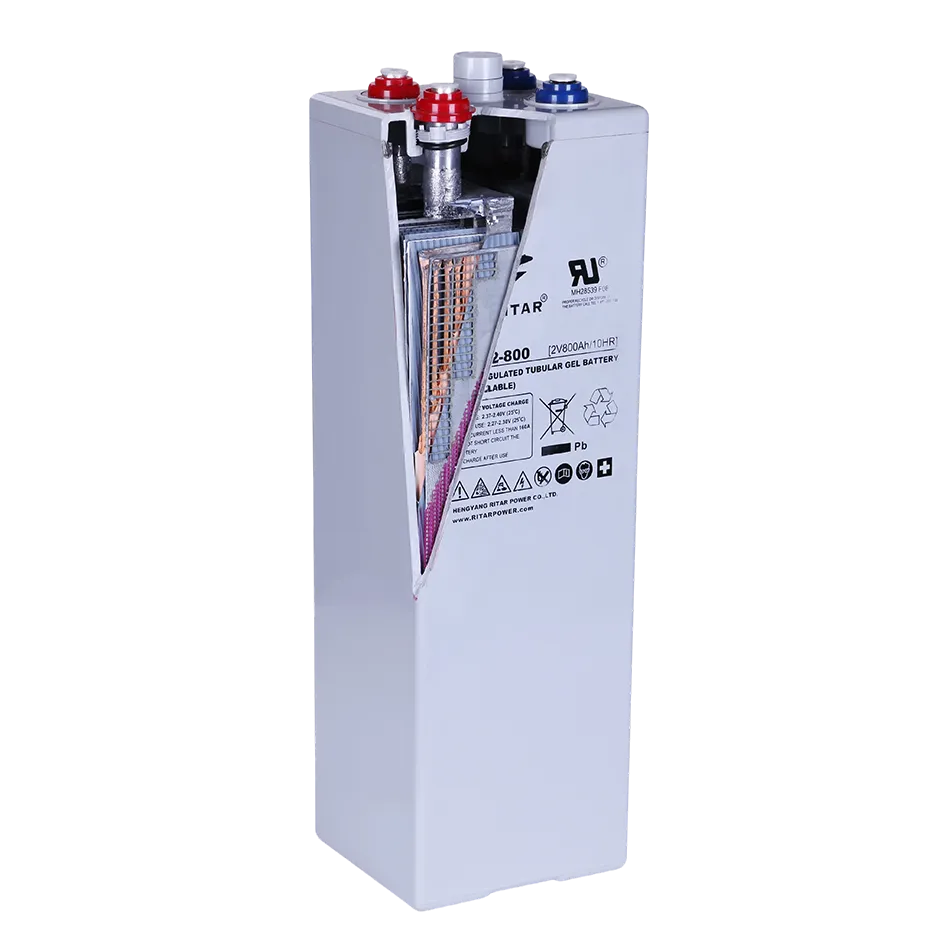

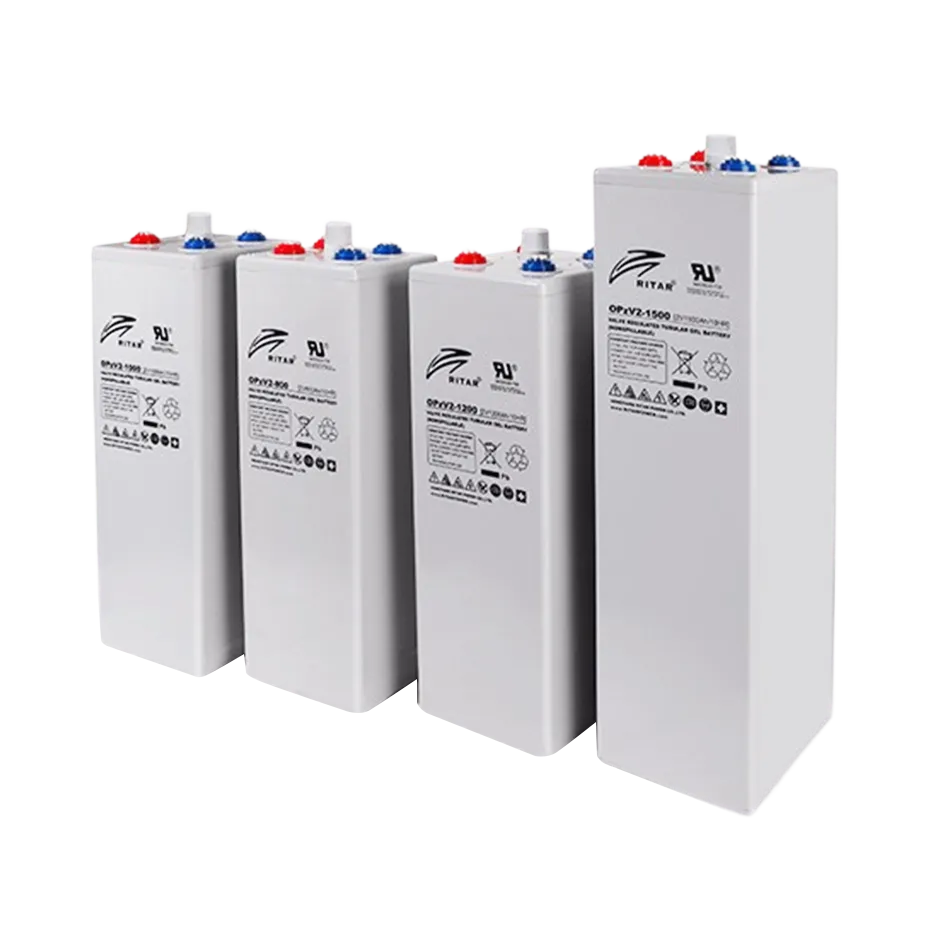

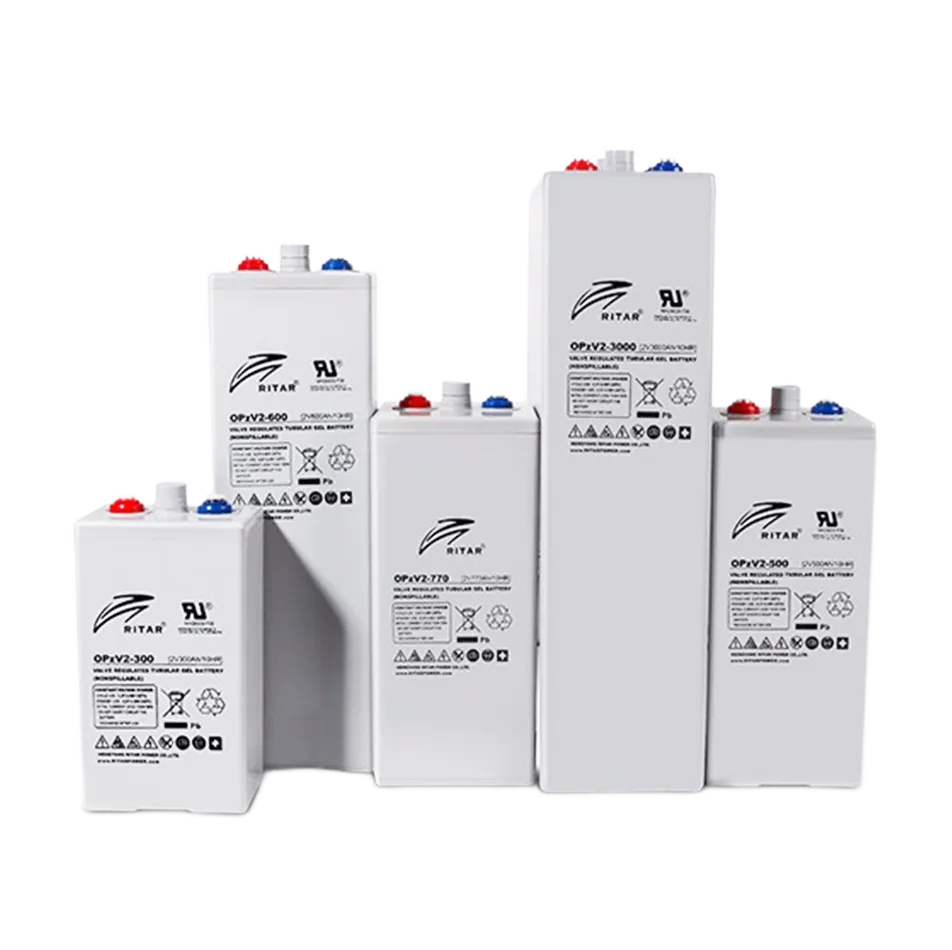

Solid-state Lead Battery
OPzV series adopts nano gas-phase silica solid-state electrolyte and TubularPlate technology, offering high reliability and stable performance.The OPzVseries is designed and manufactured according to DIN standards, withdie-casted positive grid and patented active material formula, they exceedthe DIN standard values. They offer 20~25 cyclic years design life in floatservice 25°C and are suitable for cyclic use under extreme operating conditions.Suitable for power supply in photovoltaic/wind energy storage,telecommunication and UPS applications.
160Ah-3000Ah
2V/12V
20-25年
≤2 %/month
3500 at 80%DOD (2V)
2200 at 80%DOD (12V)
-40°C - 60°C

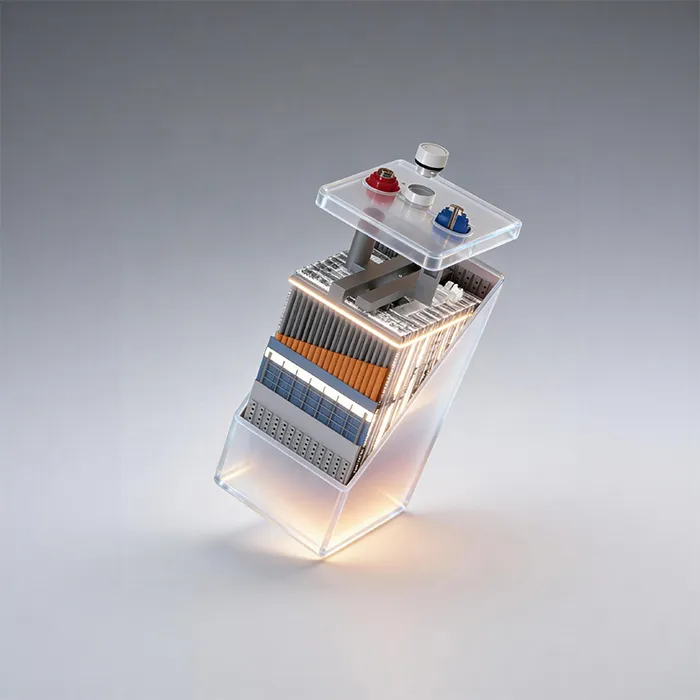

Featuring Advanced Tubular Plates and Silica Nanofibre Gel for Superior Deep Cycle Performance in Extreme Environments.
Superior thermal stability and a wide operating temperature range, performing perfectly in scorched deserts or freezing remote areas.
Exceptional recovery capabilities after deep discharges, making it the ideal choice for solar, wind, and renewable energy systems.

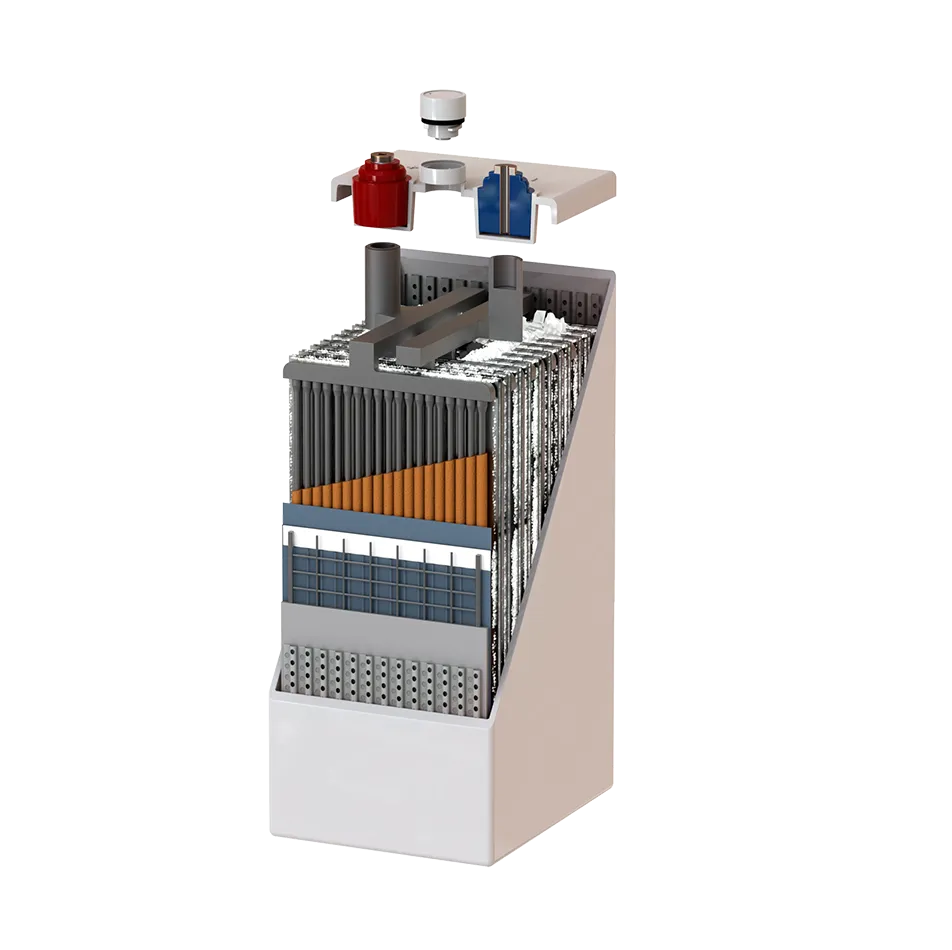

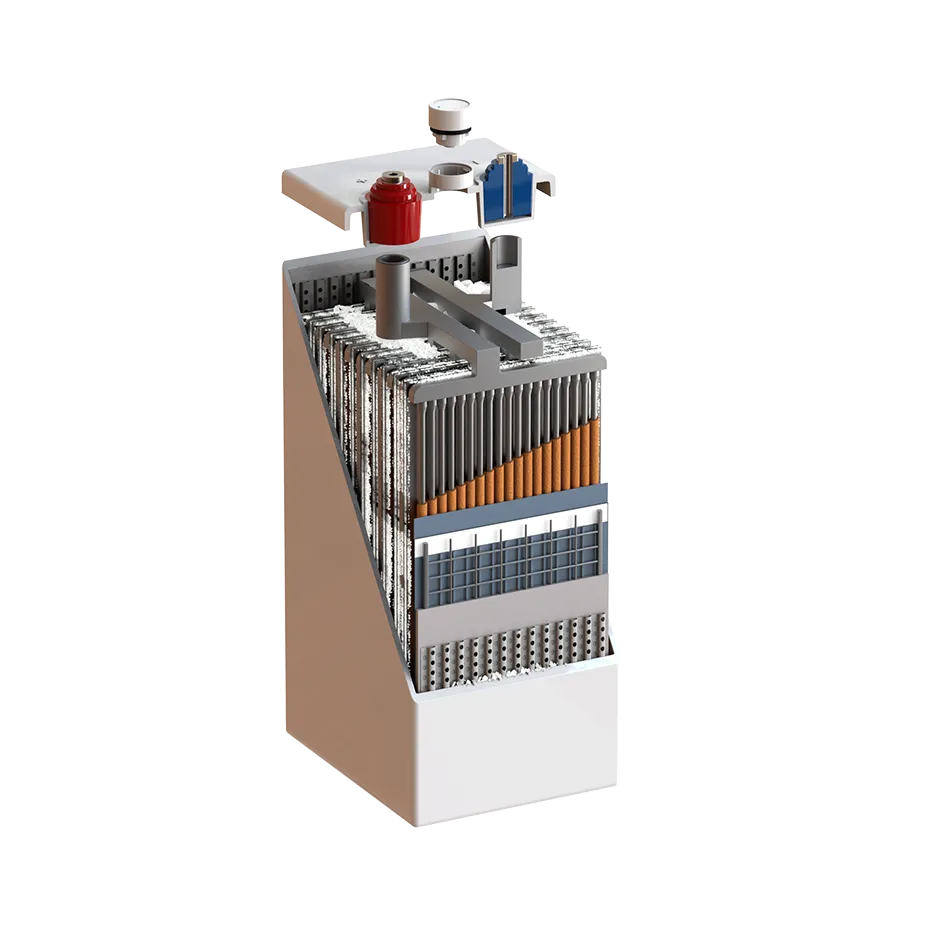

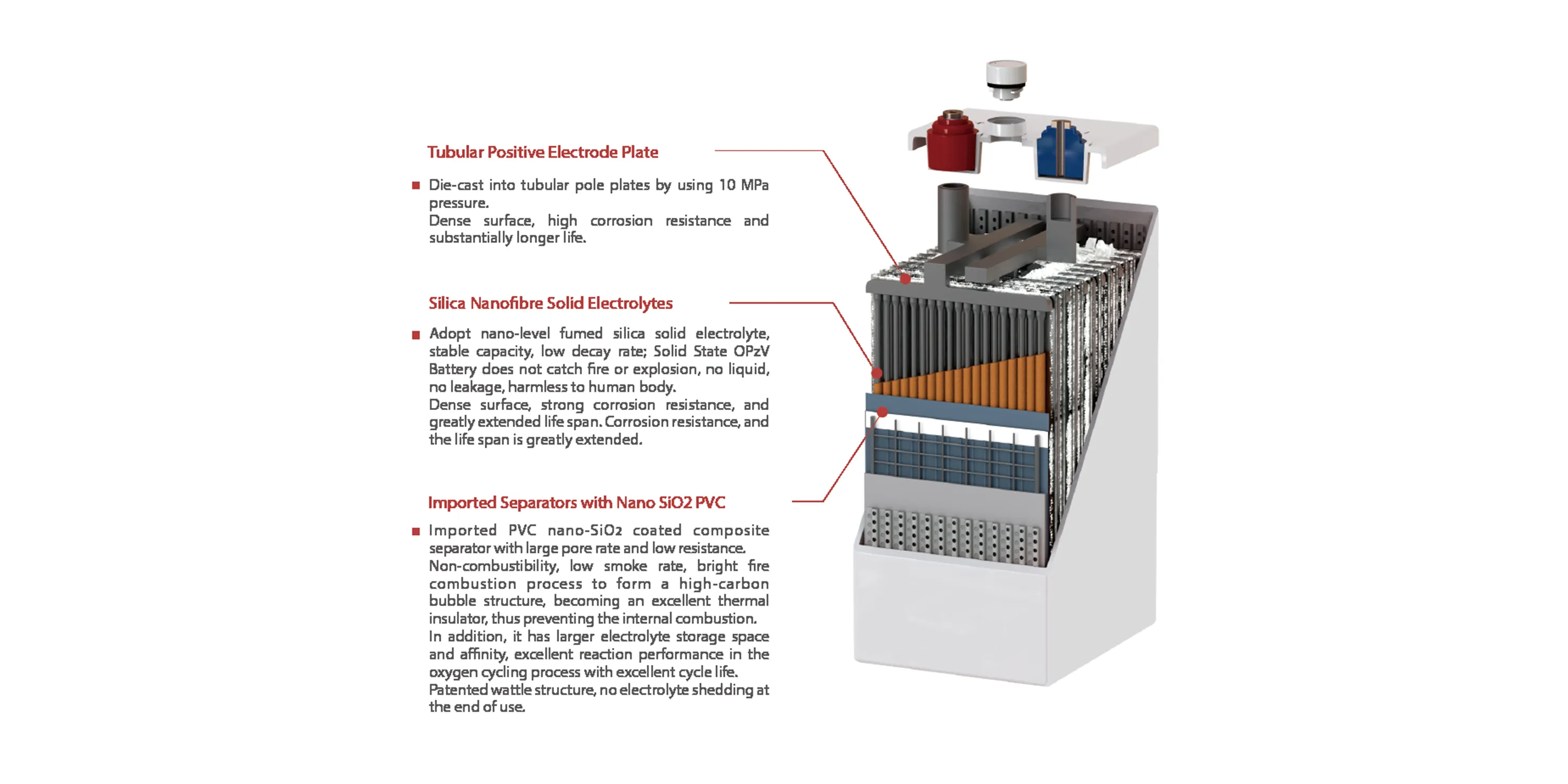

Robust tubular positive plates prevent active material shedding, ensuring consistent performance even under frequent deep cycles.
| Battery Model | Rated Voltage (V) | Rated Capacity C₁₀ (Ah) | Battery Dimensions (mm) | Terminal Option | Terminal Position | |||
|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | |||||
| OPzV6-160 | 6 | 160 | 322 | 177.5 | 226 | 231 | F14(M8) | C |
| OPzV12-70 | 12 | 70 | 306.5 | 168.5 | 210 | 215 | F12(M8) | C |
| OPzV12-80 | 12 | 80 | 328 | 172 | 215 | 220 | F12(M8) | C |
| OPzV12-90 | 12 | 90 | 407 | 177 | 225 | 225 | F12(M8) | C |
| OPzV12-110 | 12 | 110 | 483 | 170 | 241 | 241 | F12(M8) | C |
| OPzV12-120 | 12 | 120 | 483 | 170 | 241 | 241 | F12(M8) | C |
| OPzV12-140 | 12 | 140 | 532 | 207 | 214 | 219 | F12(M8) | E |
| OPzV12-160 | 12 | 160 | 522 | 240 | 219 | 224 | F12(M8) | E |
| OPzV12-180 | 12 | 180 | 522 | 240 | 219 | 224 | F10(M8) | E |
| OPzV12-200 | 12 | 200 | 521 | 268 | 220 | 225 | F14(M8) | E |
| OPzV2-200 | 2 | 200 | 103 | 206 | 355 | 390 | F10(M8) | G |
| OPzV2-250 | 2 | 250 | 124 | 206 | 355 | 390 | F10(M8) | G |
| OPzV2-300 | 2 | 300 | 145 | 206 | 355 | 390 | F10(M8) | G |
| OPzV2-350 | 2 | 350 | 124 | 206 | 470 | 505 | F10(M8) | G |
| OPzV2-420 | 2 | 420 | 145 | 206 | 470 | 505 | F10(M8) | G |
| OPzV2-500 | 2 | 490 | 166 | 206 | 470 | 505 | F10(M8) | G |
| OPzV2-770 | 2 | 770 | 210 | 254 | 470 | 505 | F10(M8) | G |
| OPzV2-600 | 2 | 600 | 145 | 206 | 645 | 680 | F10(M8) | G |
| OPzV2-800 | 2 | 800 | 191 | 210 | 645 | 680 | F10(M8) | H |

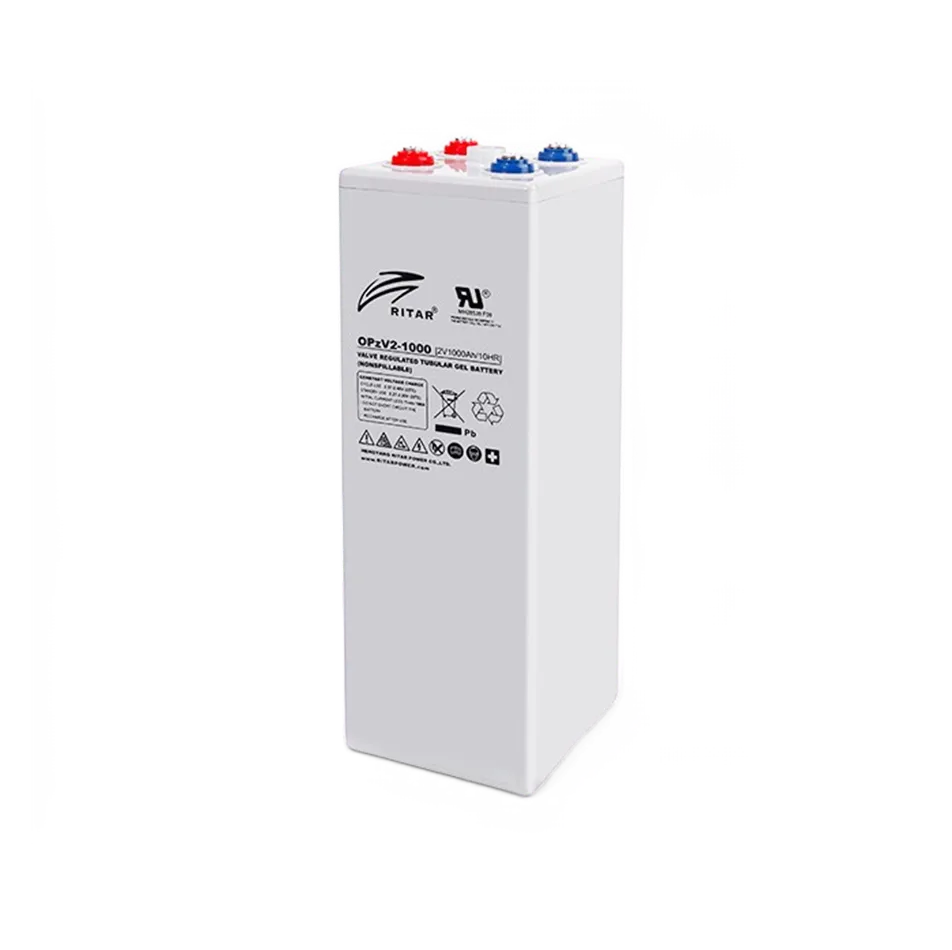

| OPzV2-1000 | 2 | 1000 | 233 | 210 | 645 | 680 | F10(M8) | H |
| OPzV2-1200 | 2 | 1200 | 276 | 210 | 645 | 680 | F10(M8) | H |
| OPzV2-1500 | 2 | 1500 | 275 | 210 | 795 | 830 | F10(M8) | H |
| OPzV2-2000 | 2 | 2000 | 399 | 214 | 770 | 805 | F10(M8) | I |
| OPzV2-2500 | 2 | 2500 | 487 | 212 | 770 | 805 | F10(M8) | J |
| OPzV2-3000 | 2 | 3000 | 576 | 212 | 770 | 805 | F10(M8) | J |
