Home Energy Storage System (LiFePO4)
Elevate your home energy management with Ritar’s Wall-Mounted Lithium Storage System. Engineered with high-density A-grade LiFePO4 cells, this series offers a sophisticated, ultra-slim form factor that saves valuable floor space while delivering superior performance. With an industry-leading service life of over 6,000 cycles, it provides a decades-long solution for residential solar storage, ensuring your home remains powered by clean, reliable energy day and night.
Designed for seamless integration, our wall-mounted units are perfectly compatible with mainstream hybrid inverters, making system setup effortless. Whether you are starting with a single 5kWh module or expanding to a massive 90kWh energy bank, Ritar’s modular scalability ensures your energy independence grows with your needs.
Space-Optimized Design: Elegant wall-mount installation that blends perfectly into modern garages or utility rooms.
Intelligent Life-Cycle Protection: Integrated Smart BMS provides 24/7 all-round monitoring of battery health and safety.
Flexible Scalability: Modular design supports parallel expansion from 5kWh to 90kWh for customized energy sizing.
Outdoor 5kWh/10kWh/15kWh
Indoor 2.5kWh/5kWh/10kWh/15kWh
51.2V
10 years
>6000
Outdoor IP65 & Indoor IP20
UN38.3, MSDS, CE, IEC62619.
Max. 15 Sets
-20°C -55°C

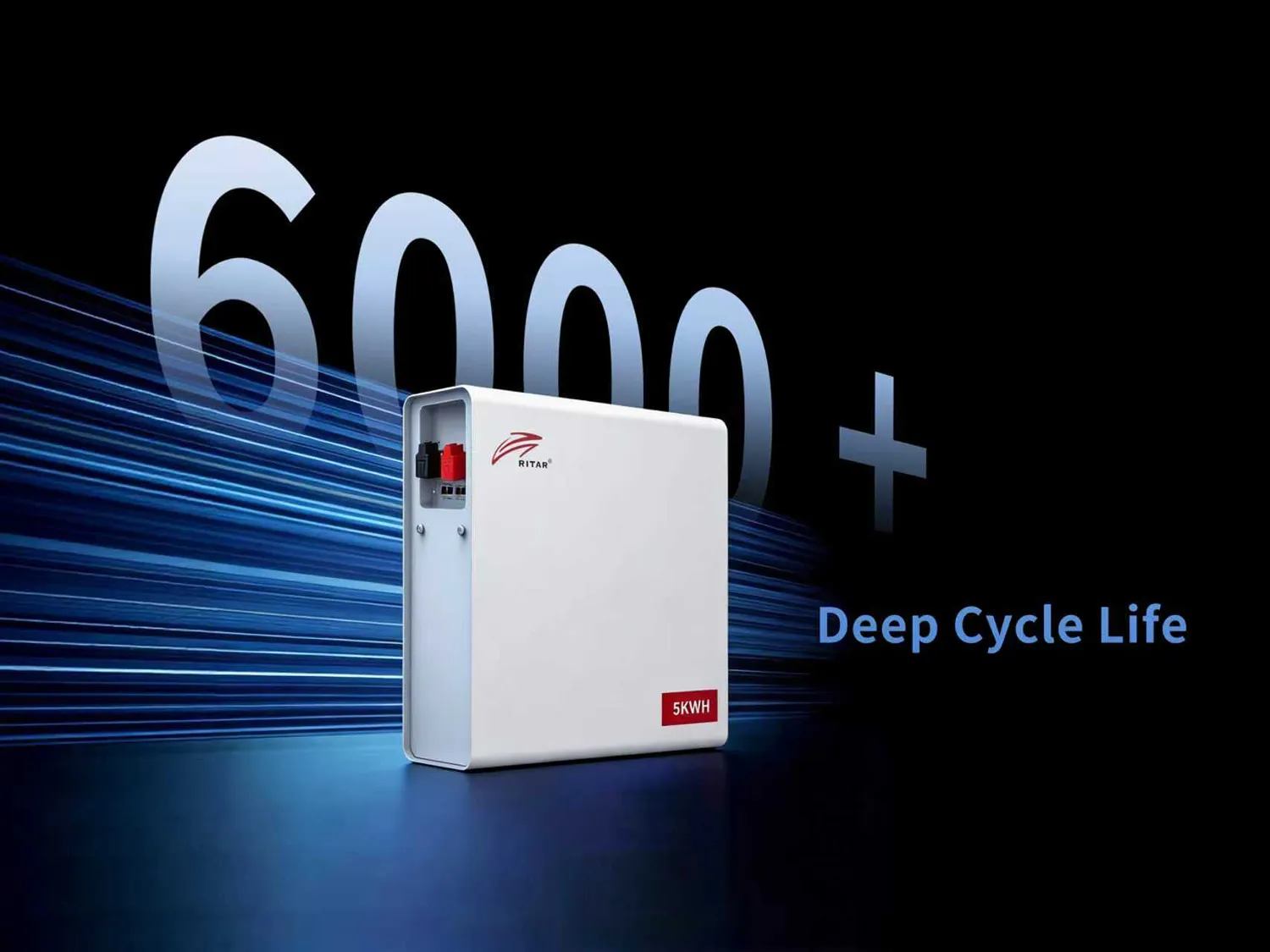

Powered by LiFePO4 Technology with 6,000+ Deep Cycles and Seamless Compatibility with Global Inverter Brands.

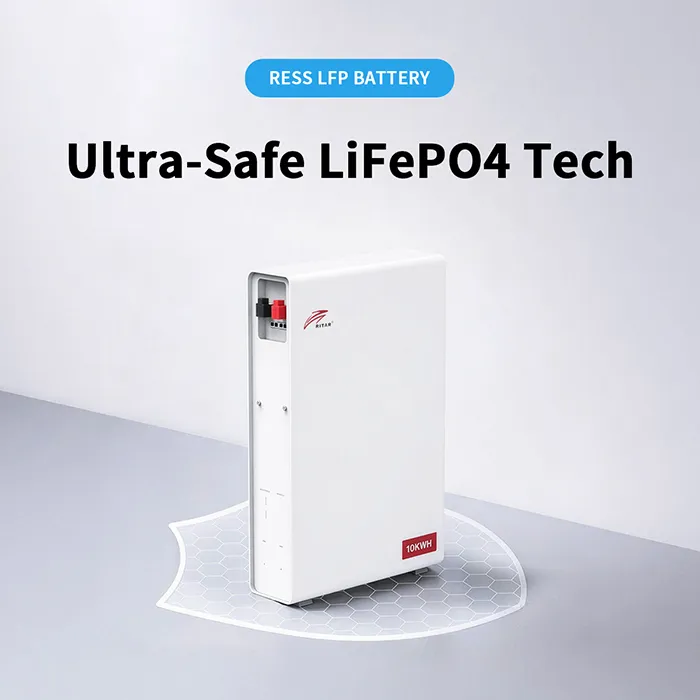

Utilizing premium long-life prismatic LiFePO4 cells specifically engineered for high-performance energy storage and ultimate safety.

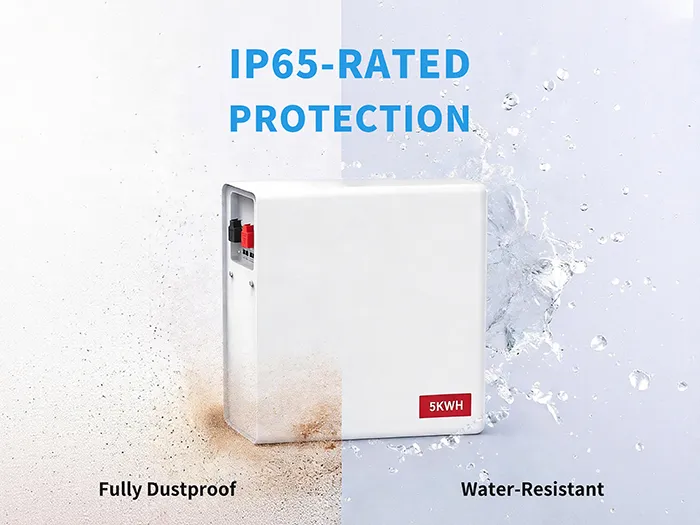

Fully Dustproof and Water-Resistant Design to Protect Your Energy Investment in Any Condition.
Powered by Premium LiFePO4 for Over 10 Years of Daily Sustainable Energy.
Fully Compliant with CE, IEC62619, UN38.3, and MSDS for Peace of Mind.

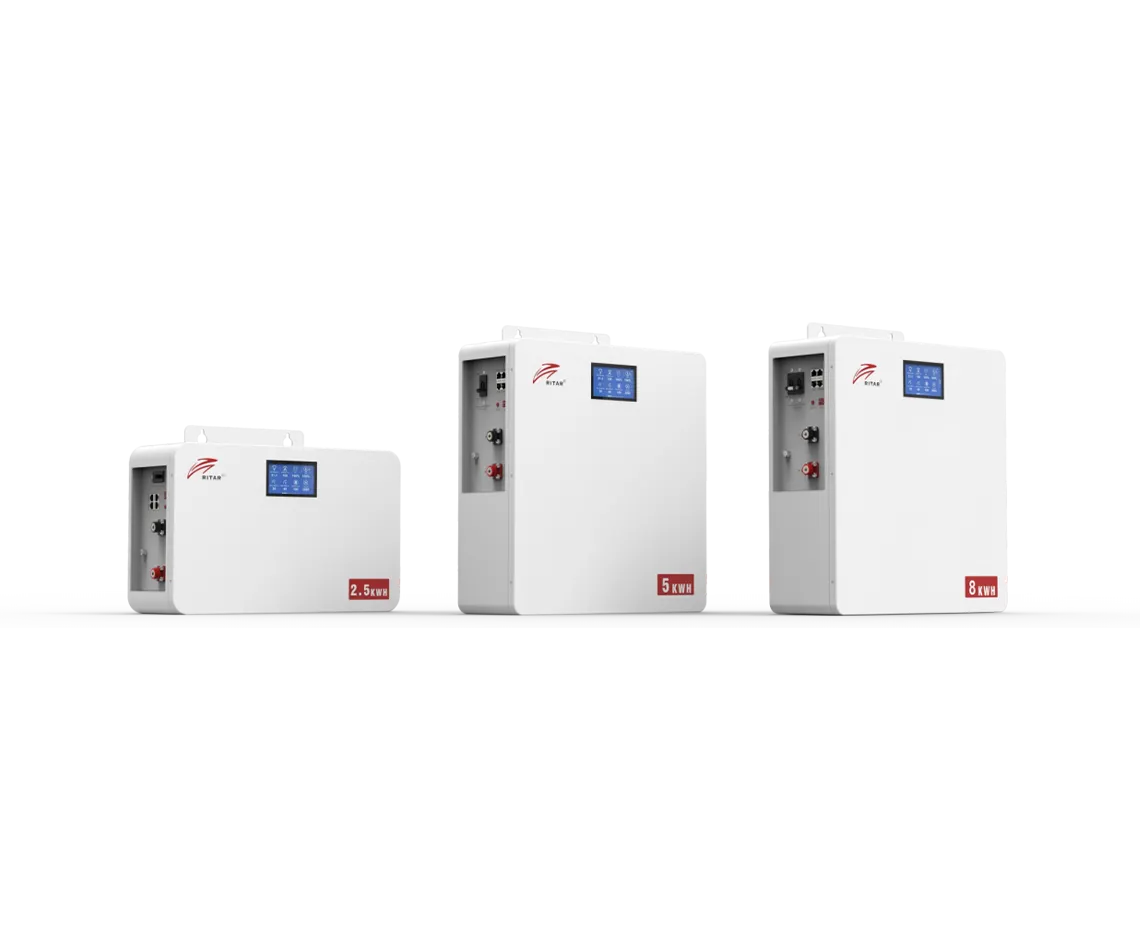

| Model | GE-W2.5kWh-25.6V | GE-W5kWh GE-W5kWh GE-W5kWh -25.6V(100A) -25.6V(150A) -25.6V(200A) | GE-W8 kWh -25.6V(100A) | |||||||||||||||||||||||||
| NominalVoltage [V] | 25.6 | 25.6 25.6 25.6 | 25.6 | |||||||||||||||||||||||||
| Nominal Capacity [Ah] | 100 | 200 200 200 | 314 | |||||||||||||||||||||||||
| Total Energy [Wh] | 2560 | 5120 5120 5120 | 8038 | |||||||||||||||||||||||||
| Dimension (W*D*H,mm) | 470*295*160 | 442*470*160 442*470*160 442*470*160 | 442*470*210 | |||||||||||||||||||||||||
| Weight [Kg] | 23.0 | 41.0 41.0 41.0 | 60.0 | |||||||||||||||||||||||||
| Max.Charging Current [A] | 100 | 100 150 150 | 100 | |||||||||||||||||||||||||
| Max.Discharging Current [A] | 100 | 100 150 200 | 100 | |||||||||||||||||||||||||
| Pulse Discharge Current | 110A@10S | 110A@10S 180A@10S 220A@10S | 110A@10S | |||||||||||||||||||||||||
| Charging Voltage [V] | 27.6~28.8 | |||||||||||||||||||||||||||
| End of Dicharge Voltage [V] | 22.4 | |||||||||||||||||||||||||||
| Operation Humidity | 0~95% RH(No condensing) | |||||||||||||||||||||||||||
| Operating Temperature Range | Charge: 0~+55°C Discharge: -20~+55°C | |||||||||||||||||||||||||||
| CycleLife(1) | >6000 | |||||||||||||||||||||||||||
| Designed Calendar Life | 10 Years | |||||||||||||||||||||||||||
| Communication interface | For inverter : RS485, Parallel: CAN For inverter : CAN, Parallel: RS485 | |||||||||||||||||||||||||||
| Protection | Over voltage, Low voltage, Over current, Over Temperature, Low Temperature, Short circuit | |||||||||||||||||||||||||||
| Parallel Support(2) | Max. 4 Sets | |||||||||||||||||||||||||||
| Series Support | Not support | |||||||||||||||||||||||||||
| Note: (1) 25°C, 0.5C/0.5C, 80% DOD to 70% of initial capacity. (2) For parallel connection, an additional combiner box is recommended. | ||||||||||||||||||||||||||||

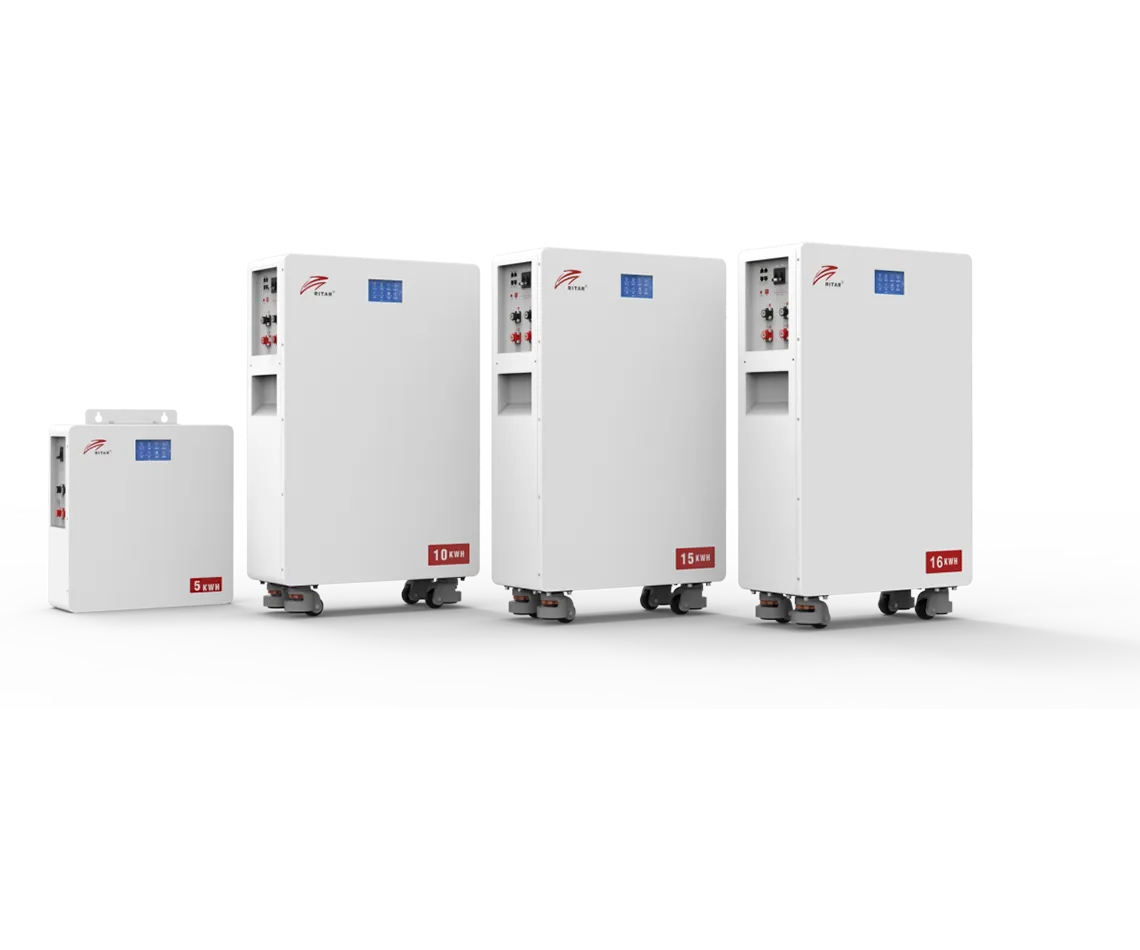

Model | GE-W5kWh | GE-W10kWh | GE-W15kWh | GE-W16kWh |
NominalVoltage [V] | 51.2 | 51.2 | 51.2 | 51.2 |
Nominal Capacity [Ah] 100 200 280 314 | ||||
Dimension (W*D*H,mm) | 442*470*160 | 550*880*220 | 550*880*220 | 550*880*220 |
Weight [Kg] | 41.0 | 93.0 123.0 133.0 | ||
Max.Charging Current [A] | 100 | 150 140 150 | ||
Max.Discharging Current [A] | 100 | 150 140 150 | ||
Pulse Discharge Current | 110A@10S | 180A@10S 180A@10S 180A@10S | ||
Charging Voltage [V] | 55.2~57.6 | |||
End of Dicharge Voltage [V] | 44.8 | |||
Operation Humidity | 0~95% RH(No condensing) | |||
Operating Temperature Range | Standard Product: Charge: 0 ~ +55°C; Discharge: -20 ~ +55°C | |||
CycleLife(1) | >6000 | |||
Designed Calendar Life | 10 Years | |||
Communication interface | For inverter : RS485, CAN | |||
Protection | Over voltage, Low voltage, Over current, Over Temperature, | |||
Parallel Support(2) | Max.15 Sets | |||
Series Support | Not support | |||
Note: 25°C, 0.5C/0.5C, 80% DOD to 70% of initial capacity | ||||

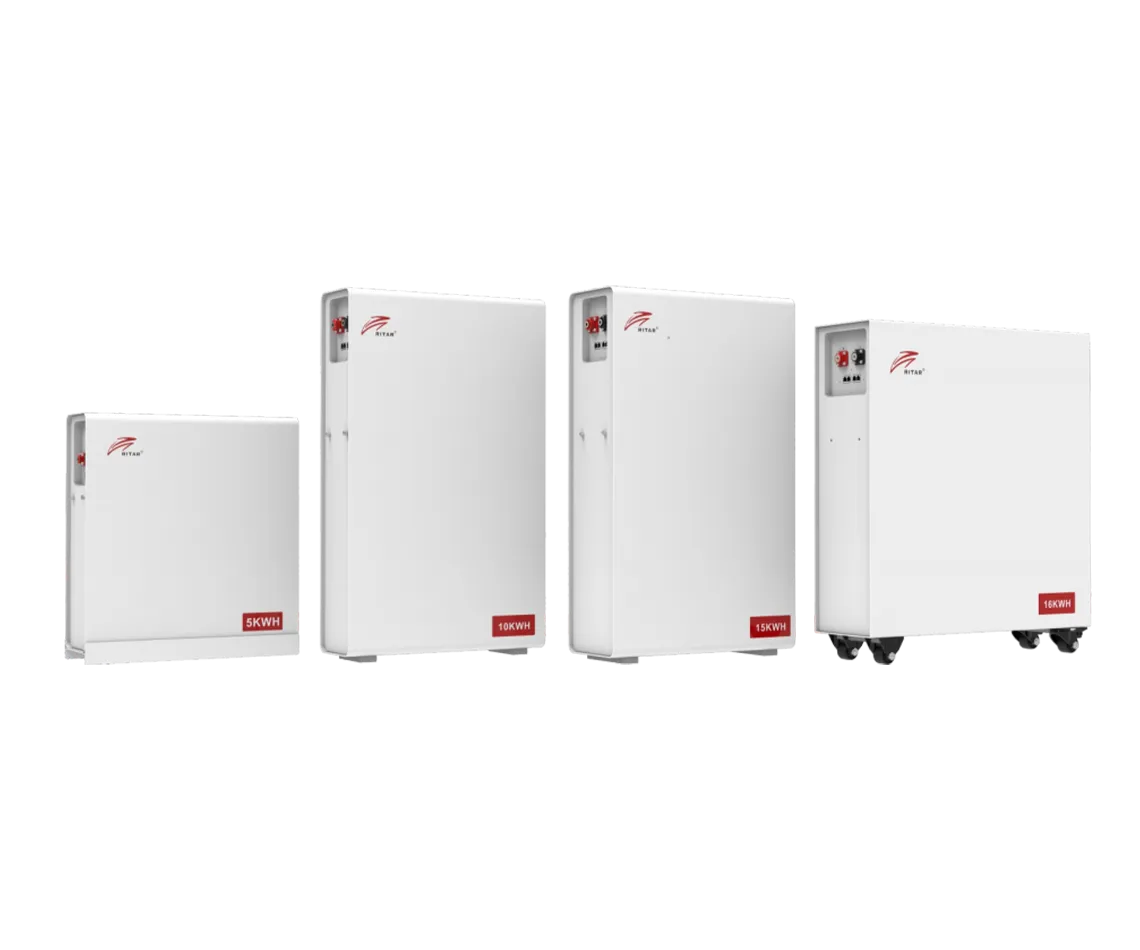

| Model | BAT-5kWh -51.2V | BAT-10kWh -51.2V | BAT-15kWh -51.2V | BAT-16kWh -51.2V | ||||||||||||||||||||||||
| NominalVoltage [V] | 51.2 51.2 51.2 51.2 | |||||||||||||||||||||||||||
| Nominal Capacity [Ah] | 100 200 280 314 | |||||||||||||||||||||||||||
| Total Energy [Wh] | 5120 10240 14336 16076 | |||||||||||||||||||||||||||
| Dimension (W*D*H,mm) | 520*165*566 520*165*865 520*200*865 695*200*775 | |||||||||||||||||||||||||||
| Weight [Kg] | 50 103.5 125.0 133.0 | |||||||||||||||||||||||||||
| Max.Charging Current [A] | 100 100/150/200 140 150 | |||||||||||||||||||||||||||
| Max.Discharging Current [A] | 100 100/150/200 140 150 | |||||||||||||||||||||||||||
| Pulse Discharge Current | 110A@10min 120A@10S | 110/165/210A@10min 120/180/220A@10S | 165A@10min 180A@60S | 180A@10S | ||||||||||||||||||||||||
| Charging Voltage [V] | 55.2~57.6 | |||||||||||||||||||||||||||
| End of Dicharge Voltage [V] | 44.8 | |||||||||||||||||||||||||||
| Operation Humidity | 0~95% RH(No condensing) | |||||||||||||||||||||||||||
| Operating Temperature Range | Standard Product: Charge: 0~+55°C; Discharge: -20~+55°C With Optional Heater: Charge / Discharge:-30~+55°C | |||||||||||||||||||||||||||
| CycleLife(1) | >6000 | |||||||||||||||||||||||||||
| Designed Calendar Life | 10 Years | |||||||||||||||||||||||||||
| Communication interface | RS485, CAN | |||||||||||||||||||||||||||
| Protection | Over voltage, Low voltage, Over current, Over Temperature, Low Temperature, Short circuit | |||||||||||||||||||||||||||
| Parallel Support(2) | Max. 15 Sets Max. 15 Sets Max. 15 Sets Max. 6 Sets | |||||||||||||||||||||||||||
| Series Support | Not support | |||||||||||||||||||||||||||
| Optional Part | Bluetooth Module, Heater parts (400W), Distribution box (for parallel connection) | |||||||||||||||||||||||||||
