High-Rate (HR) UPS Lithium Battery
Flexible & Scalable UPS Power
Ensure zero downtime for your mission-critical systems with Ritar’s HR UPS Lithium Battery Series. Engineered to replace traditional Lead-Acid UPS batteries, our high-rate LFP (Lithium Iron Phosphate) cells deliver superior power density and long-cycle reliability. Featuring a multi-level safety protection design, this 48V system is controlled by an intelligent BMS with full-life protection, ensuring independent charge and discharge management for maximum stability.
The standard 19-inch rack-mount design allows for effortless integration into existing server cabinets, making it the ideal choice for 5KVA to 10KVA UPS systems. Whether operating in a controlled data center or a harsh industrial environment, its wide temperature tolerance (-20°C to +55°C) guarantees consistent performance when every second counts.
Smart Data Visualization: Equipped with a 4.3-inch LED display, providing real-time, detailed operational insights at a glance.
Seamless Installation: Standardized form factor reduces deployment time and space requirements in high-density racks.
Mission-Critical Safety: Multi-stage protection protocols to prevent overvoltage, overheating, and short circuits.
5KVA-10KVA
12.8V/350V
>3000 cycles
UN38.3, CE
10 Years
-20°C -55°C

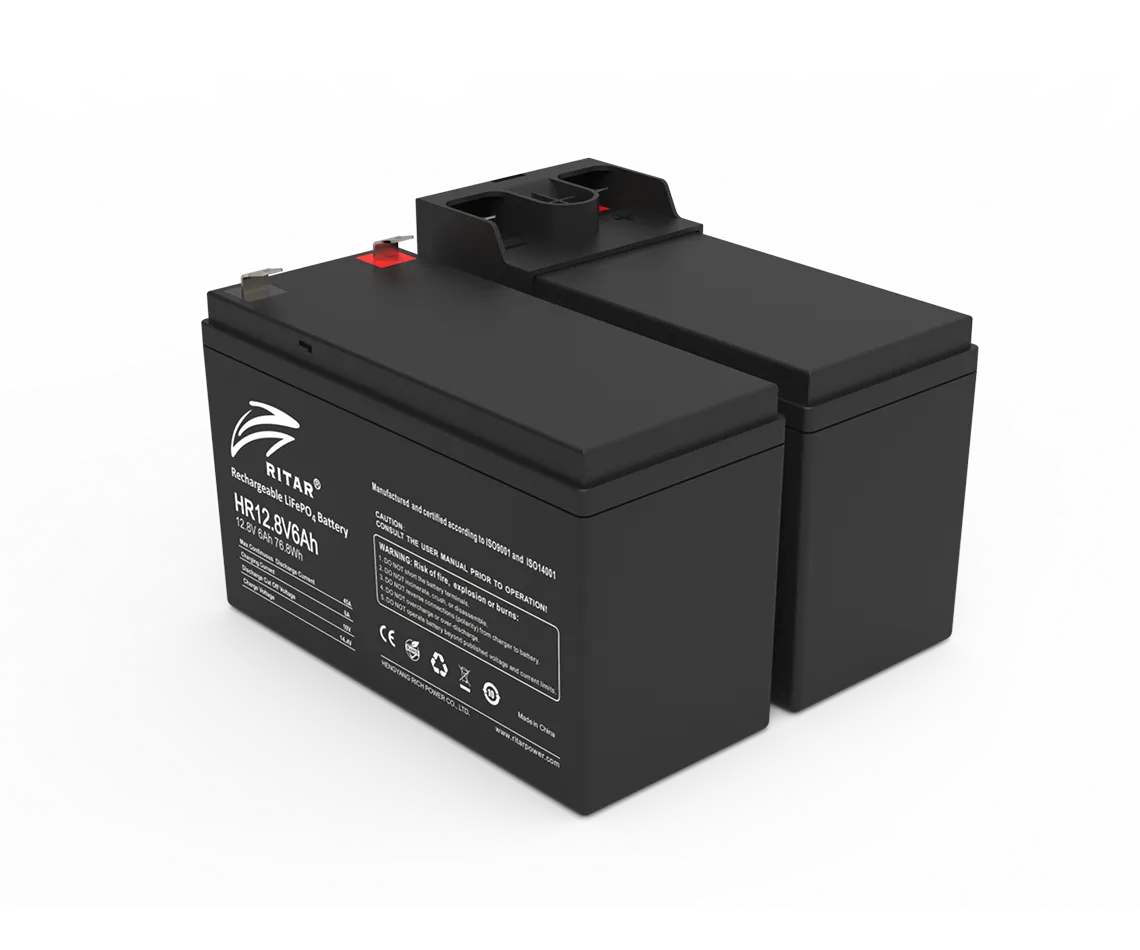

| Model | HR12.8ModelV6Ah |
| Nominal Voltage [Vdc] | 12.8 |
| Typical Capacity [Ah] | 6 |
| Energy [Wh] | 76.8 |
| Voltage Range [Vdc] | 10~14.4 |
| Max Continuous Discharge Current [A] | 45 |
| Peak Discharge Current [A] | 57@1s |
| Charge Voltage [Vdc] | 14.4±0.1 |
| Charge Current [A] | 6 |
| Max Continuous Charge Current [A] | 12 |
| Standard Charge Method | CC-CV 1C charge to 14.4V, then 14.4V charge till charge current decline to ≤0.12A. The maximum time is no more than 1.5 hours |
| Inner Resistance [mΩ] | ≤40 |
| Operation Temperature Range [°C] | Charge: 0~+45 Discharge : -20~+60 |
| Operation Elevation Range | ≤3000m |
| Storage Temperature Range [°C] | -20~+45 |
| Storage Environment Humidity | ≤ 95% RH |
| Dimension (W*D*H) | 151*65*93.5 |
| Terminal | F2, Nickel plated bras，sT=0.8mm |
| Protection Function | Over voltage, Low voltage, Over current, Over temperature, Short circuit |
| Series Connection | Yes, Max 4 pcs |
| Parallel Connection | Yes, Max 10 pcs |
| Weight [Kg] | ≈1.0 |
| Case Material | ABS+PC |
| Certification | UN38.3, MSDS，CE, ROHS, UL1973 |

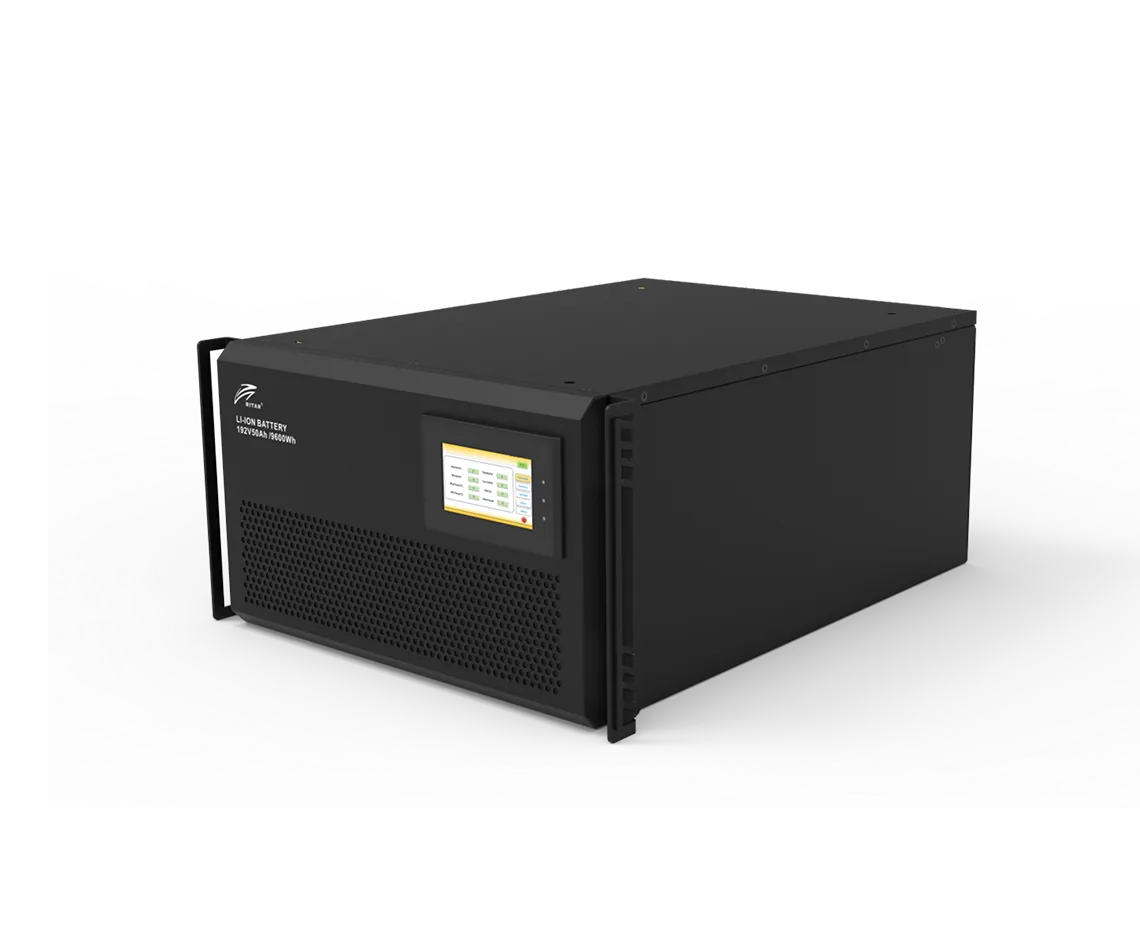

| Model | R-LFP192V50Ah |
| Part Number | 1.8.0.192.050.00.000 |
| Cell Type and connection | Prismatic LiFePO4 Cell 3.2V50Ah, 1P60S |
| Nominal voltage [V] | 192 |
| Nominal capacity [Ah] | 50 |
| Total energy [KWh] | 9.6 |
| Max. charging current [A] | 50 |
| Charging voltage [V] | 207~216 |
| Max discharging current A . continuous [A] | 100 |
| Recommended discharging current [A] | 50 |
| Peak discharging current eak [A] | 120A-30s |
| End of discharge voltage [V] | 168 |
| Product dimension [W*D*H] | 430*600*259 |
| Product weight [Kg] | 90 |
| Protection class | IP20 |
| Operating humidity | 0-95%RH(No condensing) |
| Operating temperature range | Charge: 0~+45°C Discharge : -20~+45°C |
| Communication interface | RS485, CAN |
| Cycle Life | >3000 (25°C)/ > 2500(45°C) |
| Designed life | 10 Years |
| Protection | Over voltage, Low voltage, Over current, Over Temperature, Low Temperature, Short circuit |
| Certication | UN38.3 |
| Parallel Support | Yes, Max. 8 Sets |
| Seires Support | Yes, ±192V |
