Applications
Replace lead-acid batteries.
RV & camping energy storage.
Solar off-grid energy storage system.
Security monitoring & camera backup power.
Marine & yacht auxiliary power supply.
Communication base station backup power.
High safety, no thermal runaway.
Ultra-wide temperature range applications: -30°C~60°C.
Lightweight, easy installation & replacement.
High consistency & good compatibility.
Smart BMS inside, with bluetooth function.
IP65 protection.

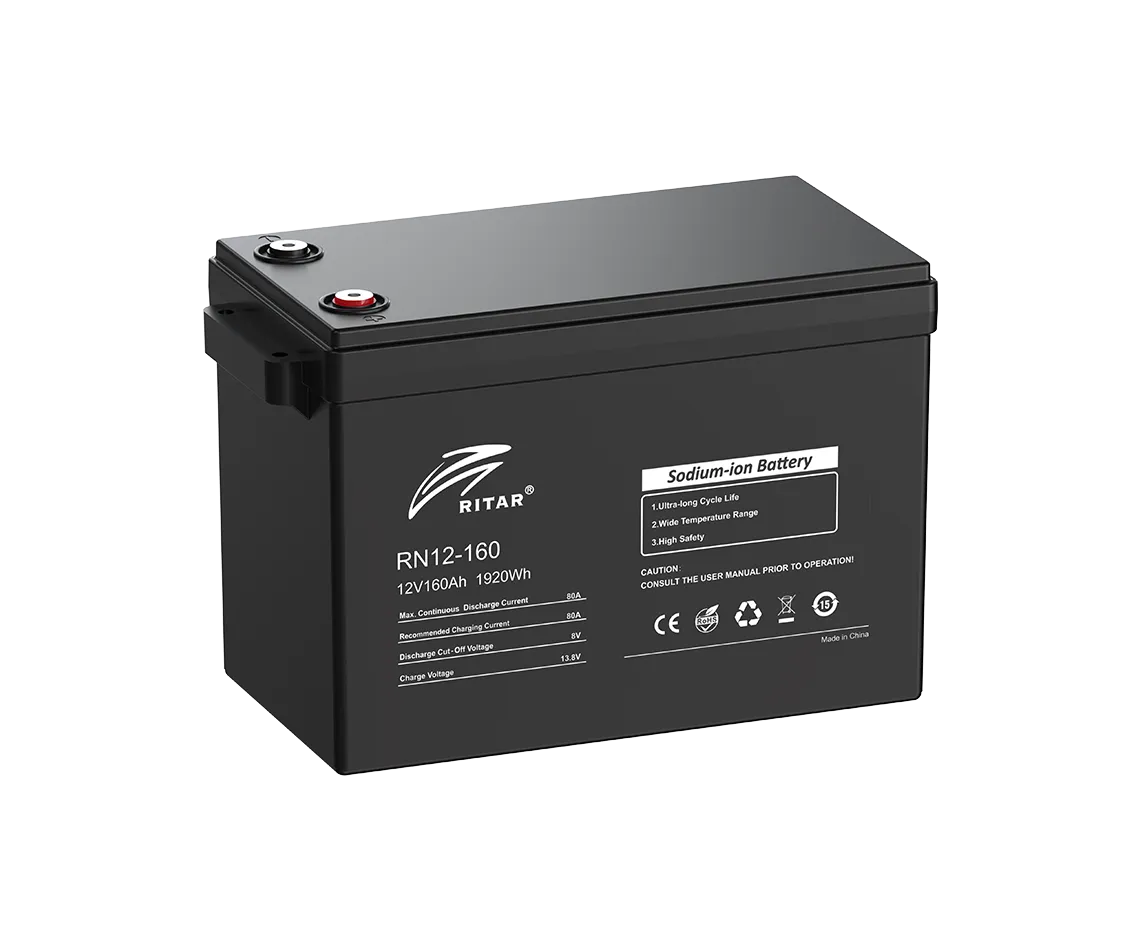

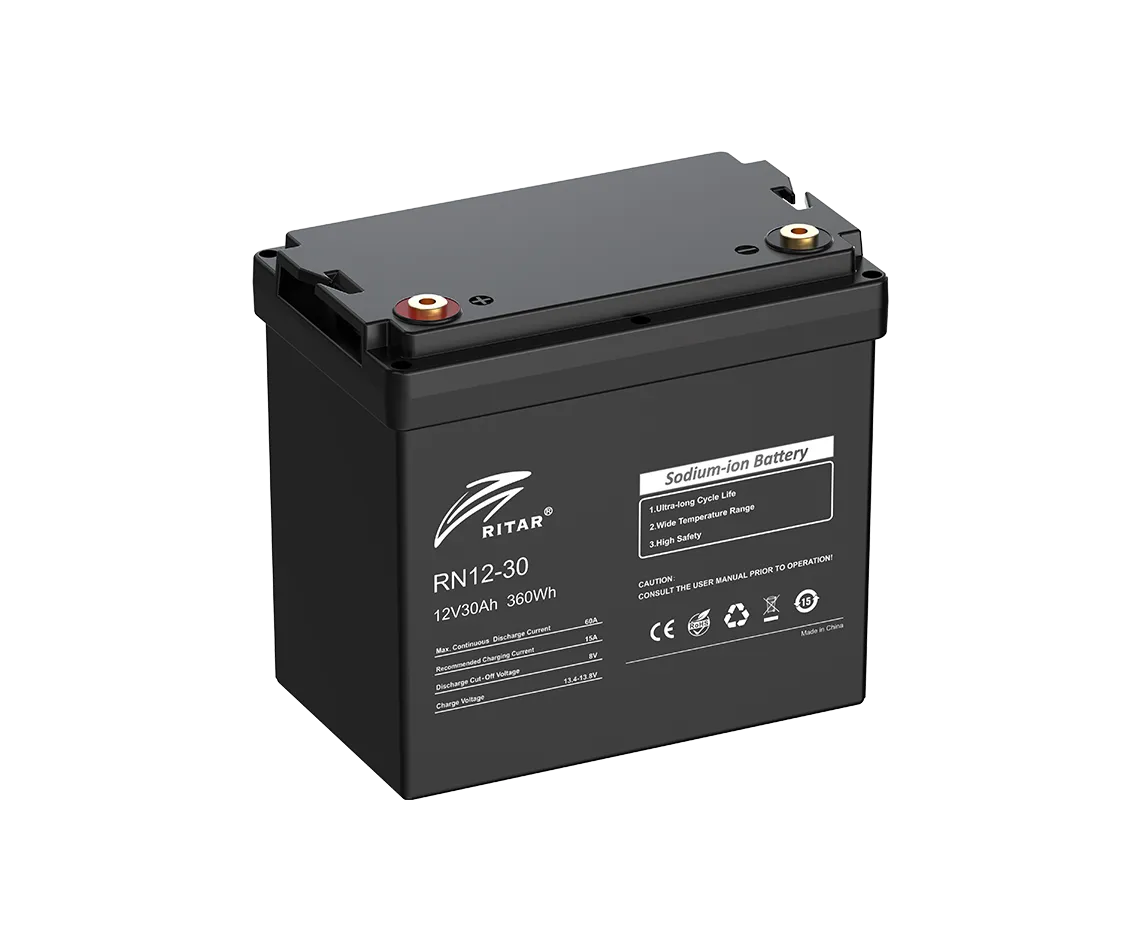

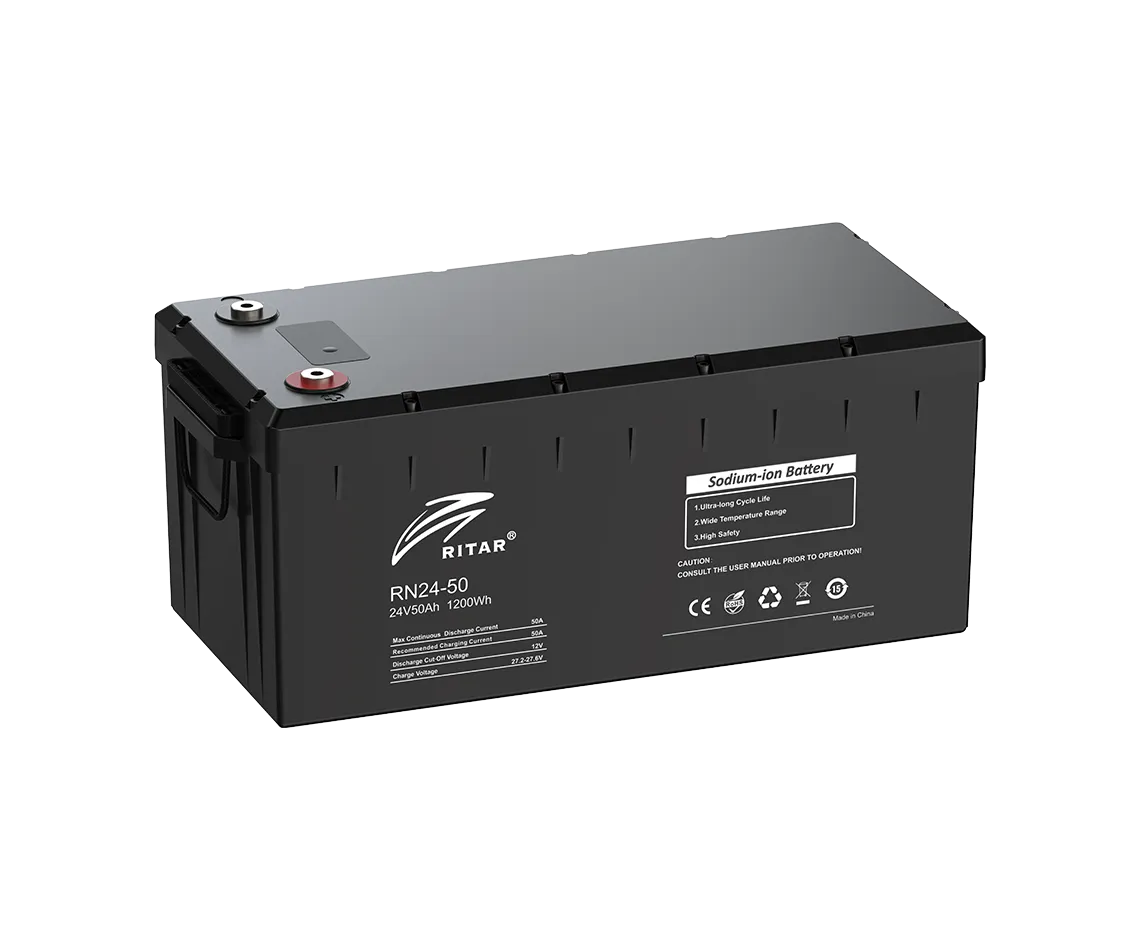

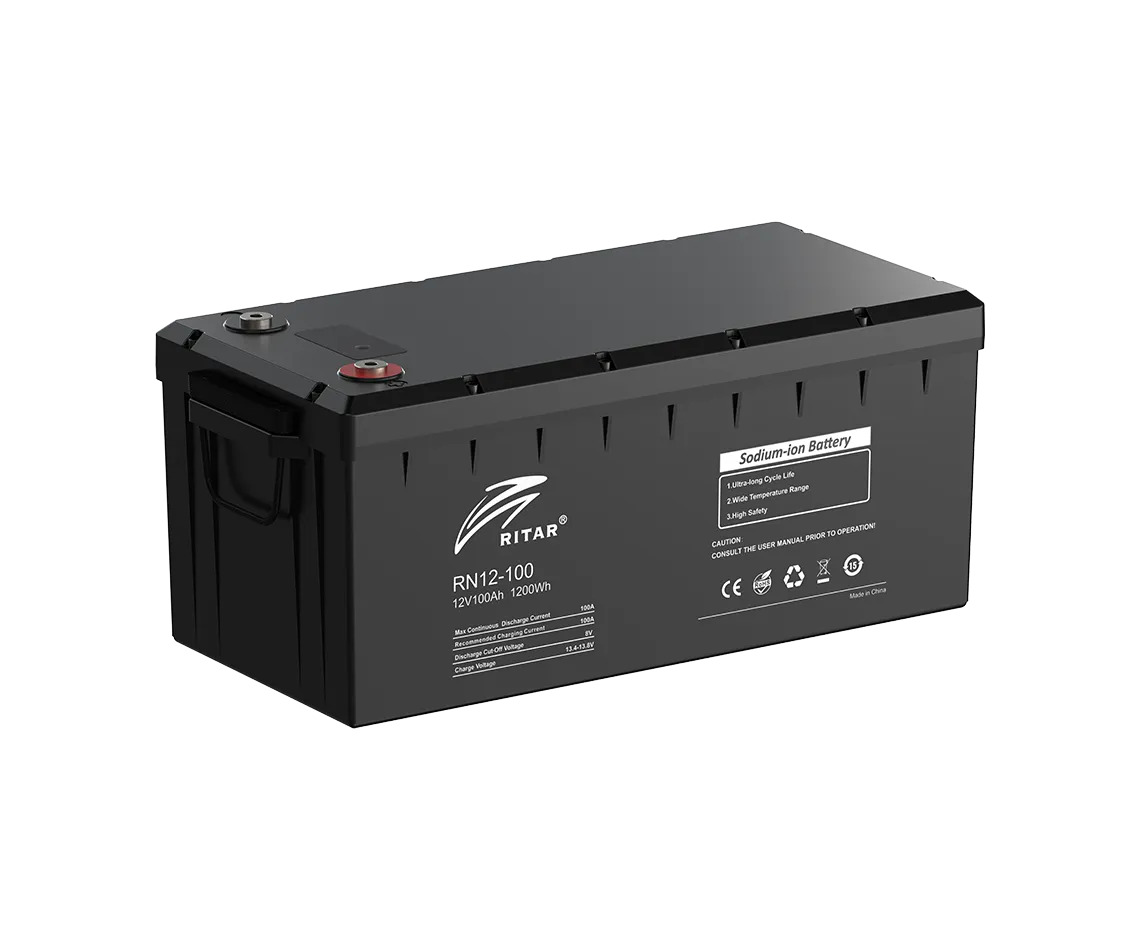

Model | RN12-30 | RN12-100 | RN12-160 | RN24-50 |
Cell and Connection | 3.0V15Ah, 2P4S | 3.0V50Ah, 2P4S | 3.0V160Ah, 1P4S | 3.0V50Ah, 1P8S |
Nominal Voltage (V) | 12 | 12 | 12 | 24 |
Nominal Capacity (Ah) | 30 | 100 | 160 | 50 |
Total Energy (Wh) | 360 | 1200 | 1920 | 1200 |
Voltage Range (V) | 8 ~ 13.8 | 8 ~ 13.8 | 8 ~ 13.8 | 12 ~ 27.6 |
End of Discharge Voltage (V) | 8 | 12 | 8 | 12 |
Charging Voltage Range (V) | 13.4 ~ 13.8 | 13.6 ~ 13.8 | 13.4 ~ 13.8 | 12.7 ~ 27.6 |
Max. Charging Current (A) | 30 | 100 | 80 | 50 |
Max. Discharging Current (A) | 60 | 100 | 80 | 50 |
Operating Temperature Range | Charge: 0℃ ~ 60℃, Discharge: -30℃ ~ 60℃ | Charge: 0℃ ~ 60℃, Discharge: -30℃ ~ 60℃ | Charge: 0℃ ~ 60℃, Discharge: -30℃ ~ 60℃ | Charge: 0℃ ~ 60℃, Discharge: -30℃ ~ 60℃ |
Protection | Over charge, Over discharge, Over temperature, Low Temperature, Over Current, Short circuit. | Over charge, Over discharge, Over temperature, Low Temperature, Over Current, Short circuit. | Over charge, Over discharge, Over temperature, Low Temperature, Over Current, Short circuit. | Over charge, Over discharge, Over temperature, Low Temperature, Over Current, Short circuit. |
Cycle Life | > 4000 cycles | > 8000 cycles | > 8000 cycles | > 8000 cycles |
Designed Calendar Life | > 10 Years | > 15 Years | > 15 Years | > 15 Years |
Bluetooth Function | Yes | Yes | Yes | Yes |
Dimension (W*D*H, mm) | 229*144*209 | 522*240*219 | 384*204*272 | 522*240*219 |
Weight (Kg) | 5.5 ± 3% | 18 ± 3% | 23.5 ± 3% | 18 ± 3% |
Operation Humidity | 5~95% RH (No condensing) | 5~95% RH (No condensing) | 5~95% RH (No condensing) | 5~95% RH (No condensing) |
IP Rating | IP65 | IP65 | IP65 | IP65 |
Parallel Connection | Yes, Max 16 Sets | Yes, Max 16 Sets | Yes, Max 16 Sets | Yes, Max 16 Sets |
Series Connection | Yes, Max 4 Sets | Yes, Max 4 Sets | Yes, Max 4 Sets | Yes, Max 4 Sets |
Cell Certification | IEC62619, UL1973, UN38.3, MSDS | IEC62619, UL1973, UN38.3, MSDS | IEC62619, UL1973, UN38.3, MSDS | IEC62619, UL1973, UN38.3, MSDS |
Battery Certification | IEC62619, UN38.3, MSDS, UL1973, UL9540A | IEC62619, UN38.3, MSDS, UL1973, UL9540A | IEC62619, UN38.3, MSDS, UL1973, UL9540A | IEC62619, UN38.3, MSDS, UL1973, UL9540A |
Note 1: 0.5C/0.5C, 25℃, 80% DOD to 70% of initial capacity. | ||||
