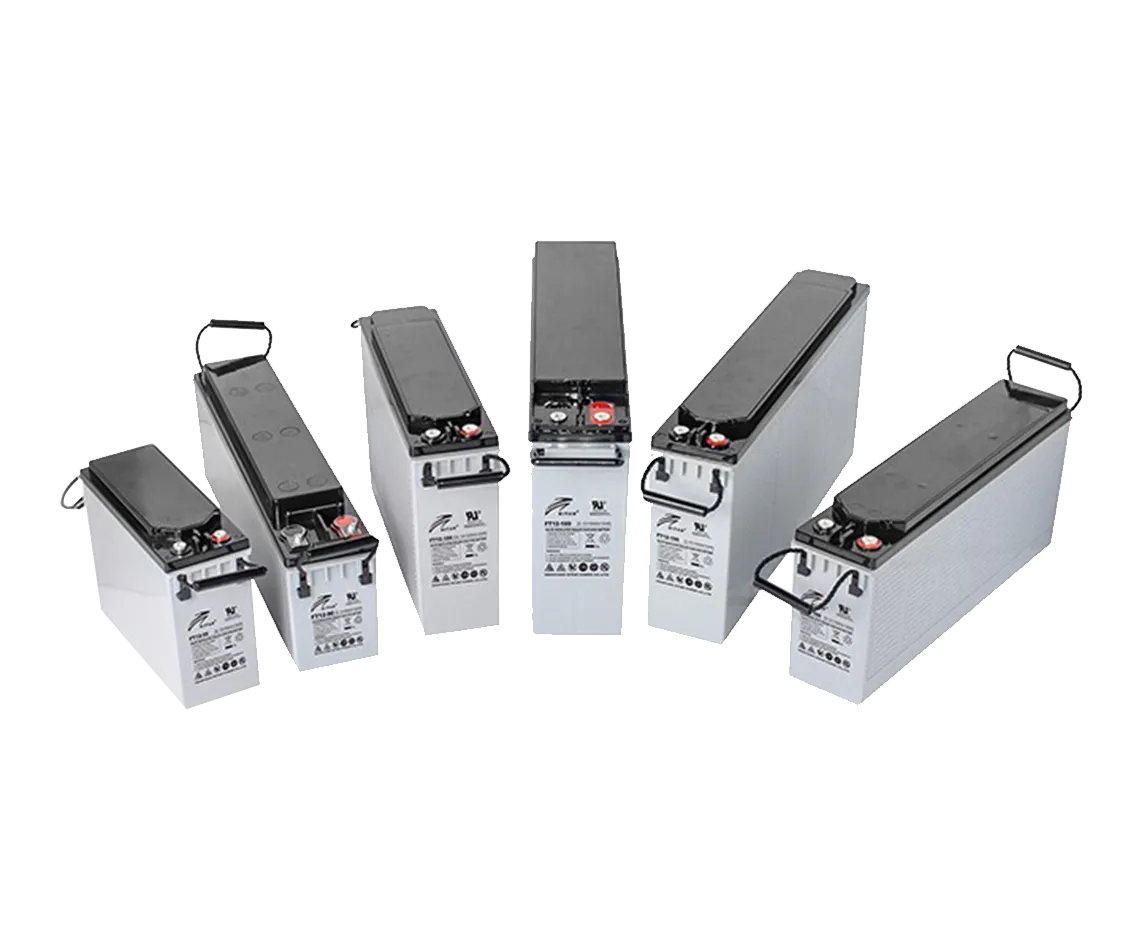

Front Terminal Batteries
FT (Front Terminal) Series is specially designed for telecom use with 12 years design life in float service. By adopting a new AGM separator andcentralised venting system, the battery can be installed in any positionwhile maintaining high reliability. The dimensions of the FT series isdesigned for 19" and 23" cabinet installation. It is suitable for UPS/EPS applications.
55Ah-200Ah
12V
12 years
≤3 %/month
≥99%
-20°C - 60°C
| Battery model | Rated voltage （V） | Rated capacity C10（Ah） | Battery size | Terminal options | Terminal location | |||
| Length/mm | Width/mm | Height/mm | Total height/mm | |||||
| FT12-55 | 12 | 55 | 291 | 106 | 230 | 230 | F11(M6) | E |
| FT12-55A | 12 | 55 | 291 | 106 | 230 | 230 | F11(M6) | E |

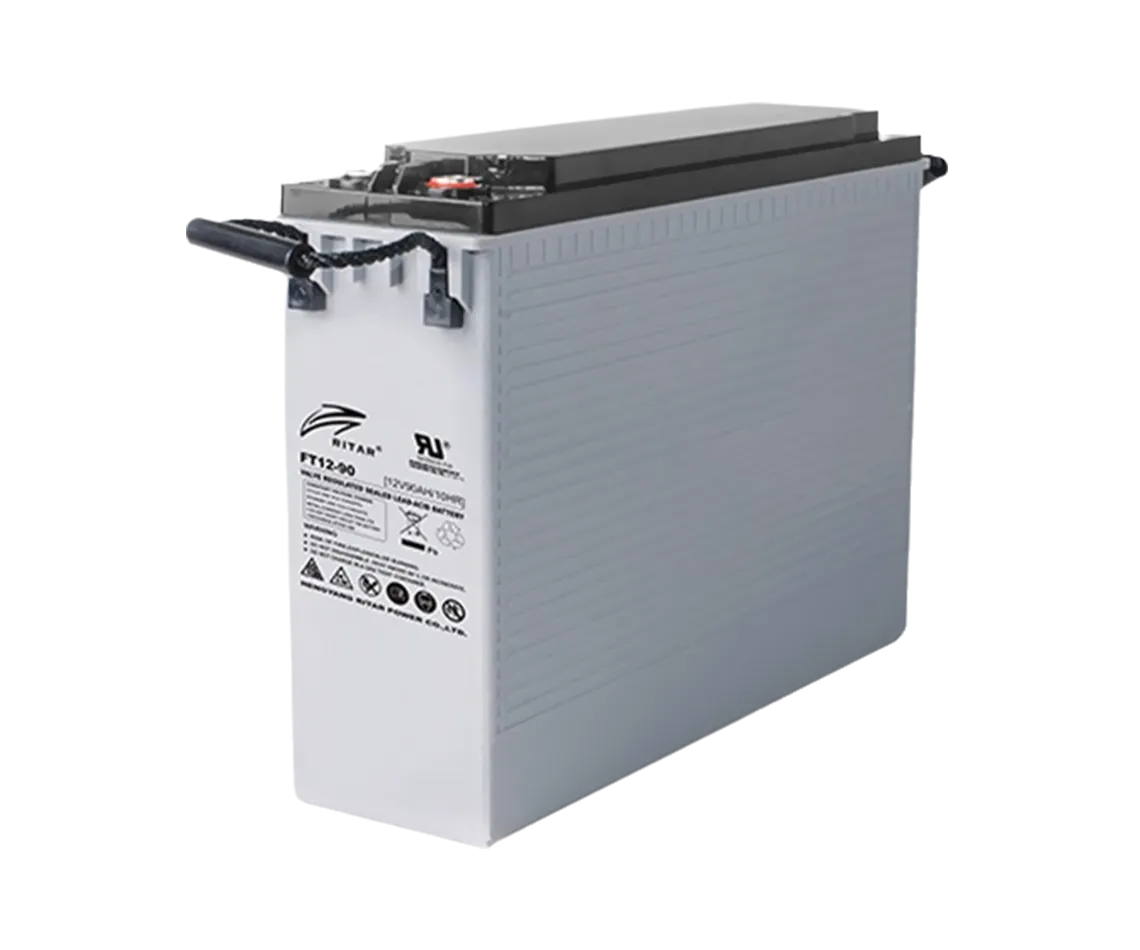

| FT12-90 | 12 | 90 | 562 | 114 | 188 | 188 | F6(M8) | E |
| FT12-90A | 12 | 90 | 562 | 114 | 188 | 188 | F6(M8) | E |
| FT12-100 | 12 | 100 | 508 | 110 | 236 | 236 | F14(M8) | E |
| FT12-100A | 12 | 100 | 508 | 110 | 236 | 236 | F14(M8) | E |
| FT12-100S | 12 | 100 | 410 | 109 | 285 | 293 | F14(M8) | E |
| FT12-100SA | 12 | 100 | 410 | 109 | 285 | 293 | F14(M8) | E |
| FT12-105 | 12 | 105 | 508 | 110 | 236 | 236 | F14(M8)/F8(M6) | E |
| FT12-105A | 12 | 105 | 508 | 110 | 236 | 236 | F14(M8)/F8(M6) | E |
| FT12-110 | 12 | 110 | 410 | 109 | 285 | 293 | F14(M8) | E |
| FT12-110A | 12 | 110 | 410 | 109 | 285 | 293 | F14(M8) | E |

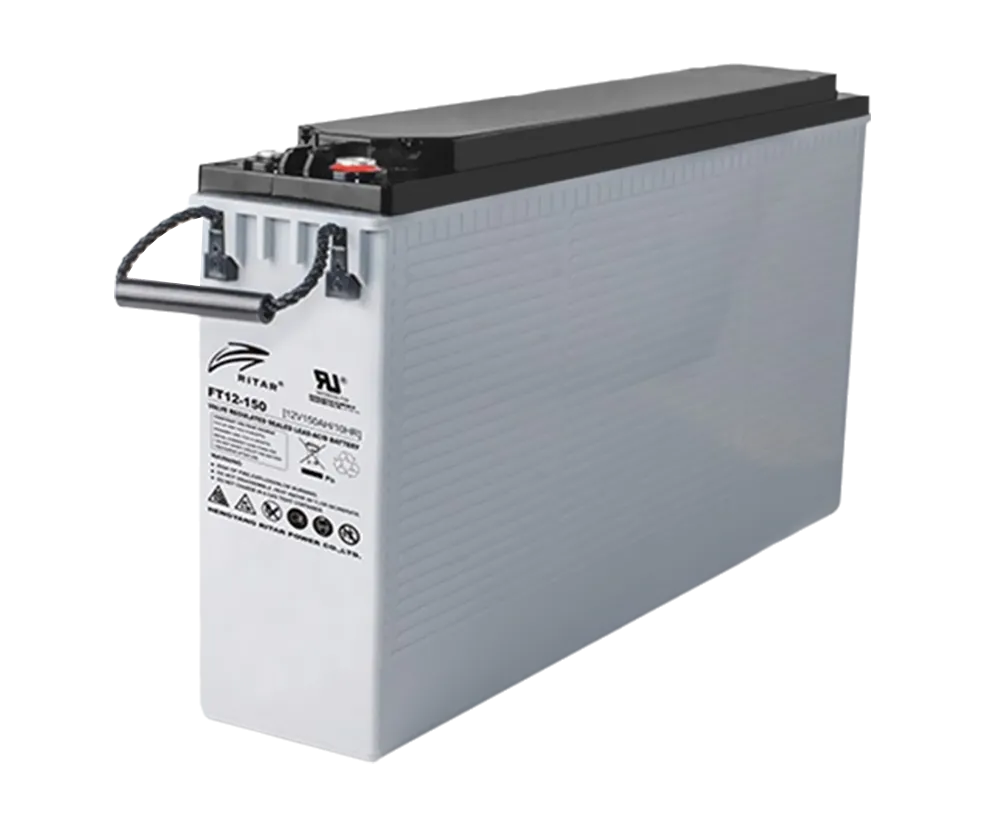

| FT12-150 | 12 | 150 | 565 | 110 | 288 | 288 | F14(M8) | E |
| FT12-150A | 12 | 150 | 565 | 110 | 288 | 288 | F14(M8) | E |
| FT12-160 | 12 | 160 | 565 | 110 | 288 | 288 | F14(M8) | E |
| FT12-170 | 12 | 170 | 560 | 125 | 316 | 316 | F14(M8) | E |
| FT12-180 | 12 | 180 | 560 | 125 | 316 | 316 | F14(M8) | E |
| FT12-180A | 12 | 180 | 560 | 125 | 316 | 316 | F14(M8) | E |
| FT12-185 | 12 | 185 | 560 | 125 | 316 | 316 | F14(M8) | E |

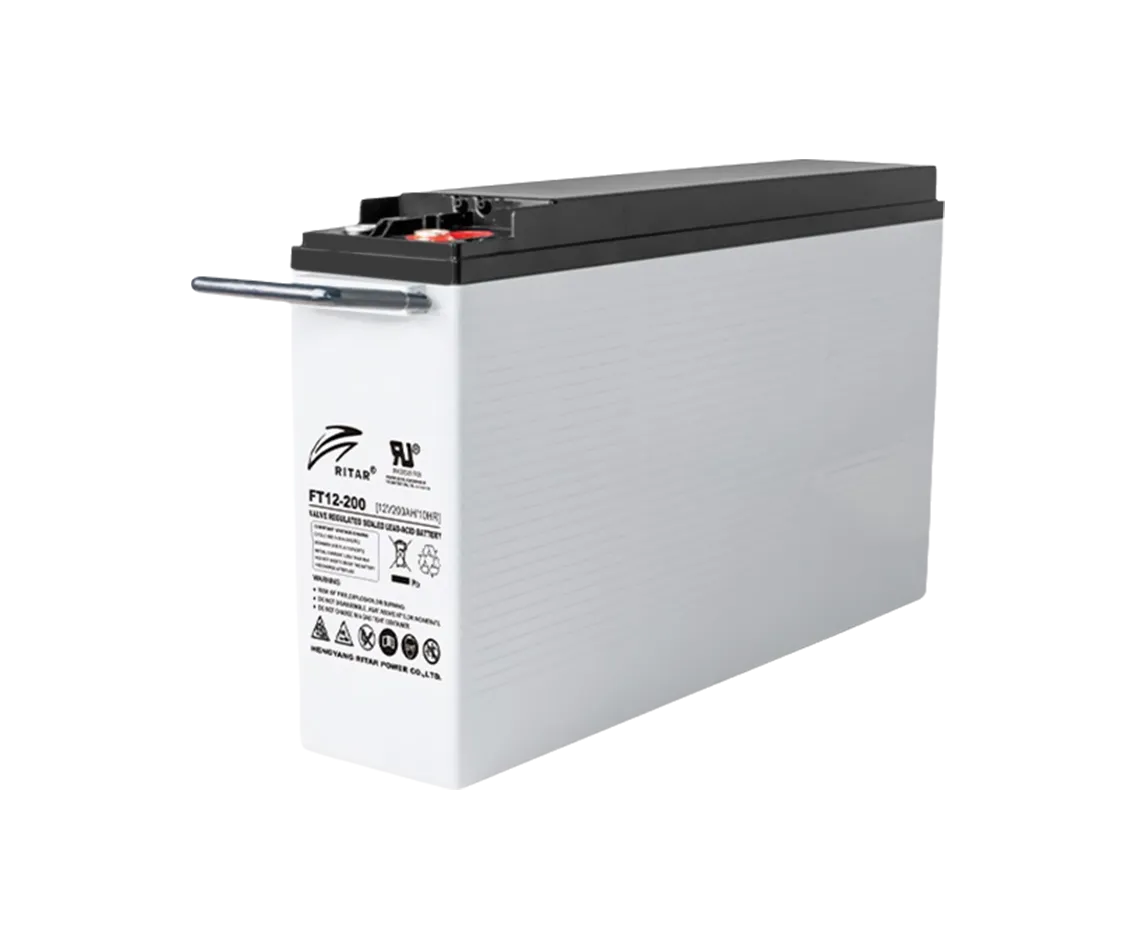

| FT12-200 | 12 | 200 | 560 | 125 | 316 | 316 | F14(M8) | E |
| FT12-200A | 12 | 200 | 560 | 125 | 316 | 316 | F14(M8) | E |
| Battery model | Rated voltage （V） | Rated capacity C20（Ah） | Battery size | Terminal options | Terminal location | |||
| Length/mm | Width/mm | Height/mm | Total height/mm | |||||
| FT12-55D | 12 | 55 | 291 | 106 | 230 | 230 | F11(M6) | E |
| FT12-90D | 12 | 90 | 562 | 114 | 188 | 188 | F6(M8) | E |
| FT12-100D | 12 | 100 | 508 | 110 | 236 | 236 | F14(M8) | E |
| FT12-100SD | 12 | 100 | 410 | 109 | 285 | 293 | F14(M8) | E |
| FT12-105D | 12 | 105 | 508 | 110 | 236 | 236 | F14(M8)/F8(M6) | E |
| FT12-110D | 12 | 110 | 410 | 109 | 285 | 293 | F14(M8) | E |
| FT12-150D | 12 | 150 | 565 | 110 | 288 | 288 | F14(M8) | E |
| FT12-160D | 12 | 160 | 565 | 110 | 288 | 288 | F14(M8) | E |
| FT12-180D | 12 | 180 | 560 | 125 | 316 | 316 | F14(M8) | E |
| FT12-185D | 12 | 185 | 560 | 125 | 316 | 316 | F14(M8) | E |
| FT12-200D | 12 | 200 | 560 | 125 | 316 | 316 | F14(M8) | E |
| Battery model | Rated voltage （V） | Rated capacity C20（Ah） | Battery size | Terminal options | Terminal location | |||
| Length/mm | Width/mm | Height/mm | Total height/mm | |||||
| FT12-55G | 12 | 55 | 291 | 106 | 230 | 230 | F11(M6) | E |
| FT12-90G | 12 | 90 | 562 | 114 | 188 | 188 | F6(M8) | E |
| FT12-100G | 12 | 100 | 508 | 110 | 236 | 236 | F14(M8) | E |
| FT12-105G | 12 | 105 | 508 | 110 | 236 | 236 | F17(M8)/F8(M6) | E |
| FT12-110G | 12 | 110 | 410 | 109 | 285 | 293 | F14(M8) | E |
| FT12-150G | 12 | 150 | 565 | 110 | 288 | 288 | F14(M8) | E |
| FT12-160G | 12 | 160 | 565 | 110 | 288 | 288 | F14(M8) | E |
| FT12-180G | 12 | 180 | 560 | 125 | 316 | 316 | F14(M8) | E |
