Engineered for Continuous Motion

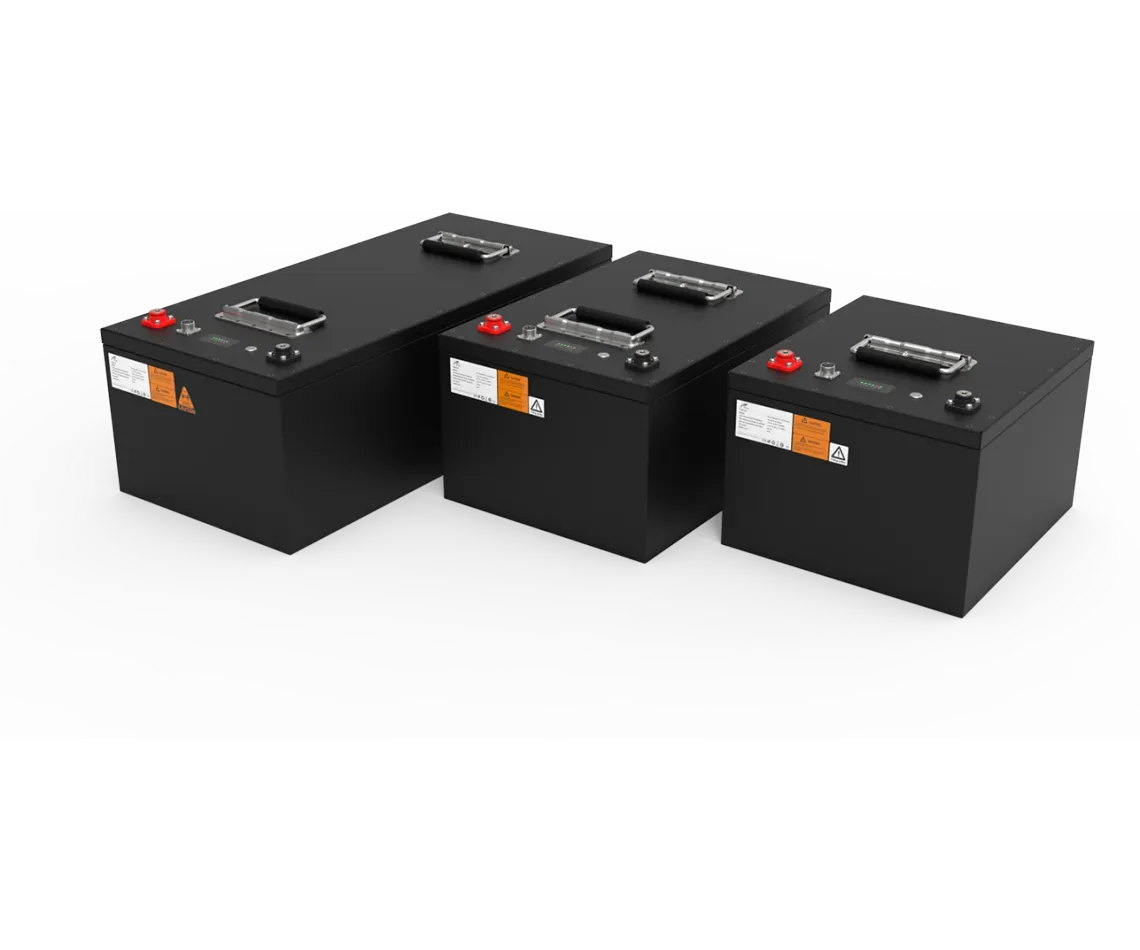

Experience the next level of motive power with Ritar’s Power Lithium-Ion Battery Series. Available in 38.4V, 51.2V, and 76.8V configurations, these units are specifically designed for high-intensity power applications. Utilizing long-life prismatic LiFePO4 cells, this series delivers an exceptional cycle life of 4000+ cycles, ensuring years of reliable service in demanding industrial environments.
Ritar’s power batteries are more than just an energy source; they are a high-reliability power unit. Featuring independent charging and discharging protection, the system prevents overcharging and deep discharging, significantly prolonging battery health. With CE, UN38.3, and MSDS certifications, you can trust in a globally recognized energy solution that keeps your fleet moving with maximum efficiency.
Superior Longevity: 4000+ deep cycles at high discharge rates for reduced TCO (Total Cost of Ownership).
Industrial Safety: Integrated BMS with independent protection protocols for worry-free operation.
Global Compliance: Fully certified to international safety and shipping standards (CE, UN38.3).
38.4V/51.2V/76.8V
LCD display, remote control switch, Bluetooth module, heater.
UN38.3, MSDS, CE.
IP65
-20°C -55°C
| Model | M-LFP38.4V100AH | M-LFP51 .2V100AH | M-LFP76.8V100AH | |||
| Nominal Voltage [V] | 38.4 | 51.2 | 76.8 | |||
| Nominal Capacity [Ah] | 100 | 100 | 100 | |||
| Total Energy [Wh] | 3840 | 5120 | 7680 | |||
| Max . Charging Current [A] | 100 | 100 | 100 | |||
| Recommended Charging Current [A] | 50 | 50 | 50 | |||
| Charging Voltage [V] | 41.4~43.2 | 55.2~57.6 | 82.8~86.4 | |||
| Max . Discharging Current [A] | 100 | 100 | 100 | |||
| Peak Discharge Current [A] | 300 @10s | 300 @10s | 300 @10s | |||
| End of Dicharge Voltage [V] | 36 | 48 | 72 | |||
| Cycle Life | >4000 cycles | >4000 cycles | >4000 cycles | |||
| Designed Calendar Life | 10 Years | 10 Years | 10 Years | |||
| Dimension (L*W*H, mm) | 385*338*245 | 490*338*245 | 740*338*245 | |||
| Weight [Kg] | 34.4 | 45.2 | 70 | |||
| Charge: 0 ~ +50°C ； Discharge: -20 ~ +55°C With optional heater parts: Charge/Discharge -30~+55°C | ||||||
| Operation Humidity | 0~95% RH (No condensing) | |||||
| Protection | Over charge, Over discharge, Over temperature, Low Temperature, Over Current, Short circuit | |||||
| Communication Port | RS485 | |||||
| LED Indicator and Button | Yes， SOC, RUN, ALARM LEDs indicator | |||||
| IP Class | IP65 | |||||
| Parallel Support | No | |||||
| Series Support | No | |||||
| Certification-Cell | IEC62619; UL1973; UL9540A, ROHS; | |||||
| Certification-Battery | UN38.3; MSDS; CE | |||||
| Optional Parts | LCD display ； Remote Switch ； Bluetooth Module | |||||
| Note: (1) If the optional heater is stalled, it will automatic start to work once the cell temperature is below 5°C during charge process, The heater can help to increase cell temperature 4~8°C/hour.With Optional Heater: Charge / Discharge: -30 ~ +55°C (2) 25°C ,0.5C/0.5C, 100%DOD and 80% EOL | ||||||
