Applications
Vehicle starting.
Marine vessel starting.
Emergency jump‑starting.
Starting power for machinery & diesel engines.
Starting power for agricultural machinery equipment.
Caution
Strictly prohibit positive/negative short-circuit.
Do not use outside specified voltage range.
Use only compatible cells and charge-discharge systems.
Do not store in direct sunlight, high humidity or rain.
For long period storage, disconnect ports and recharge every 3 months.
High safety, no thermal runaway.
Ultra-wide temperature start, stable ignition at -40°C~100°C.
Cycle life over 3,500 cycles, outperforms lead-acid batteries.
Easy installation & replacement.
High consistency & good compatibility.
Low internal resistance & high-current discharge.
Cranking cycles over 120,000 times.
Only 40% the weight of lead‑acid batteries.
Ultra-high Cold Cranking Amperes (CCA) current.
Active Balancing.

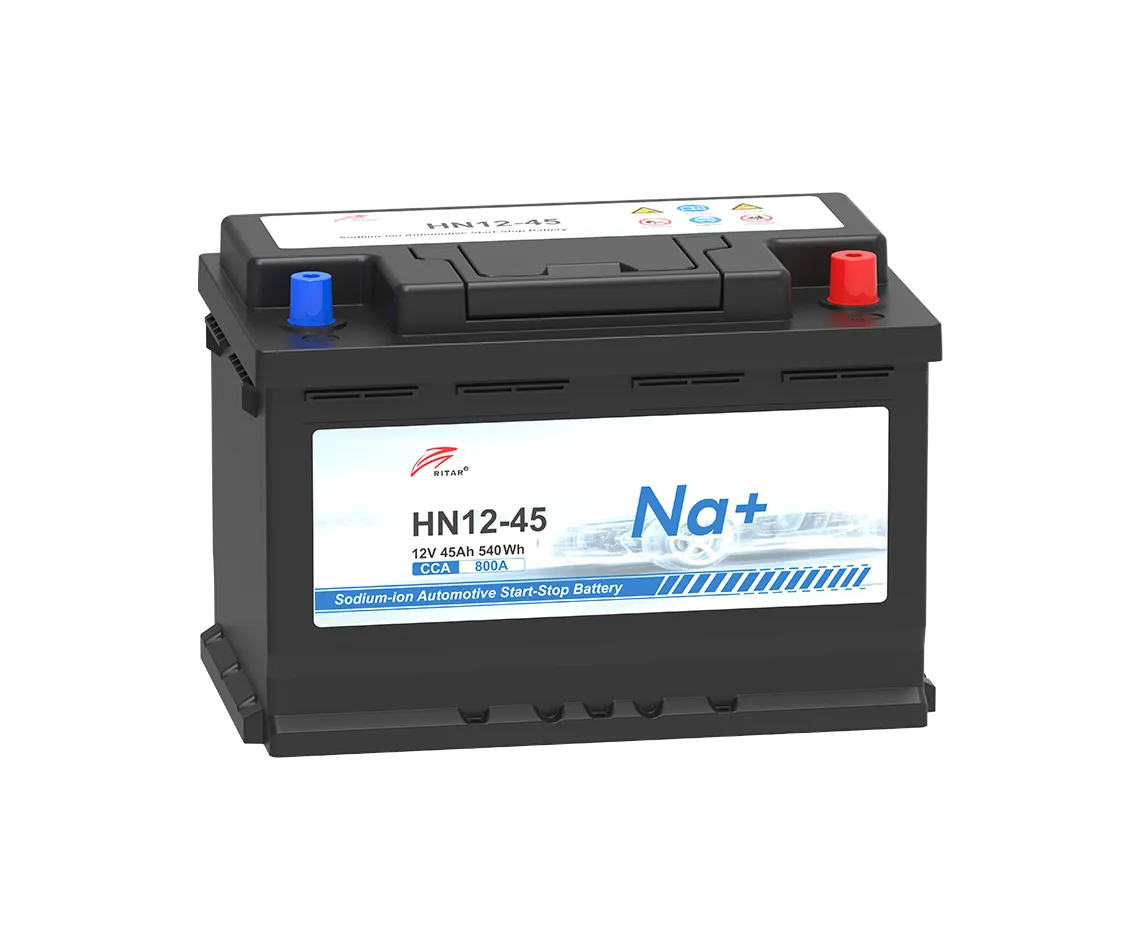

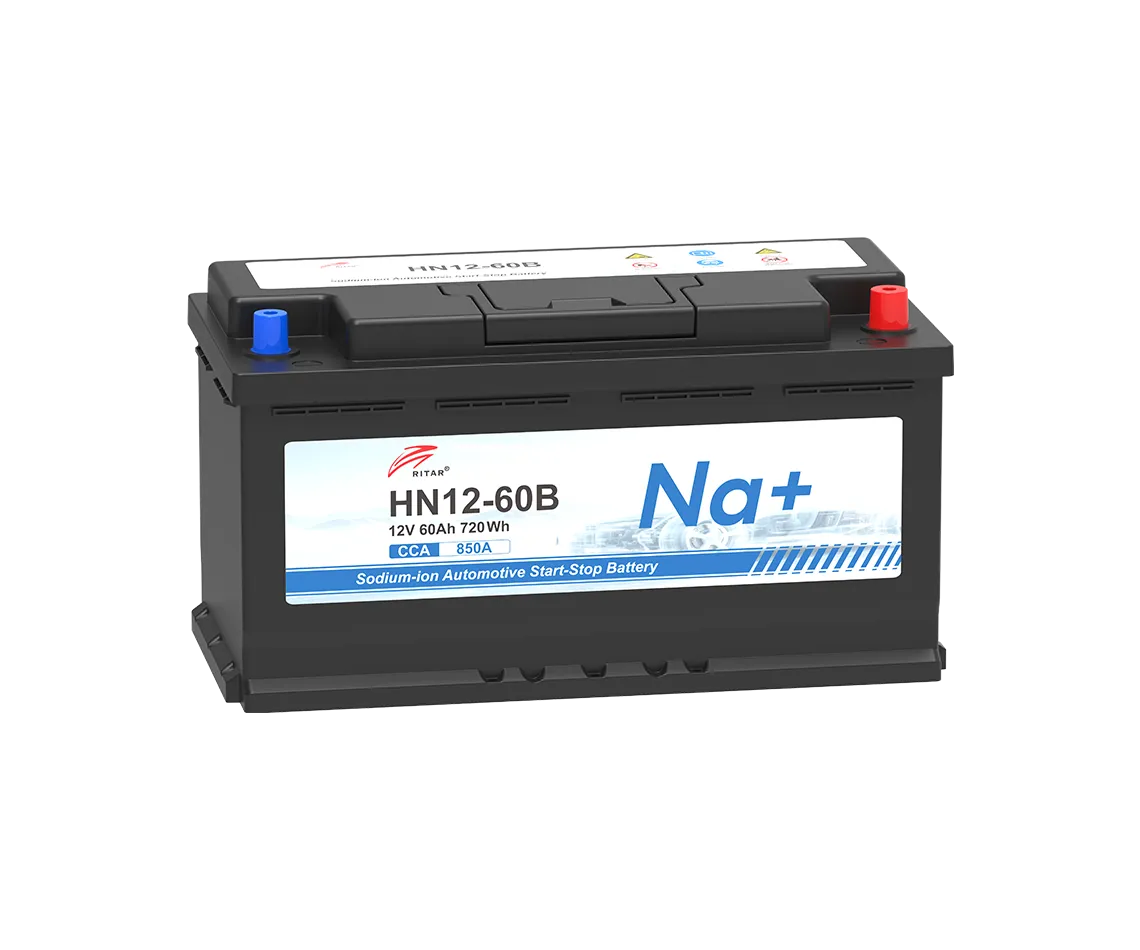

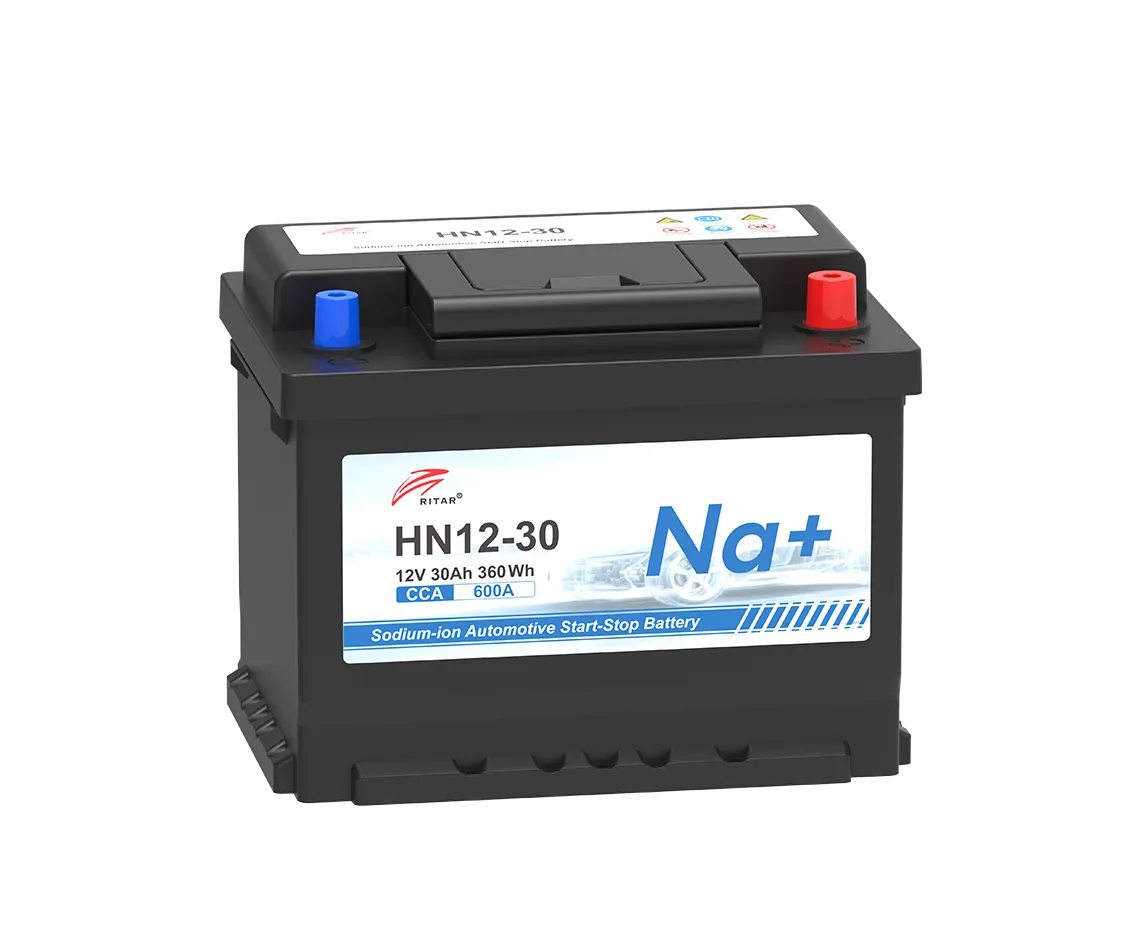

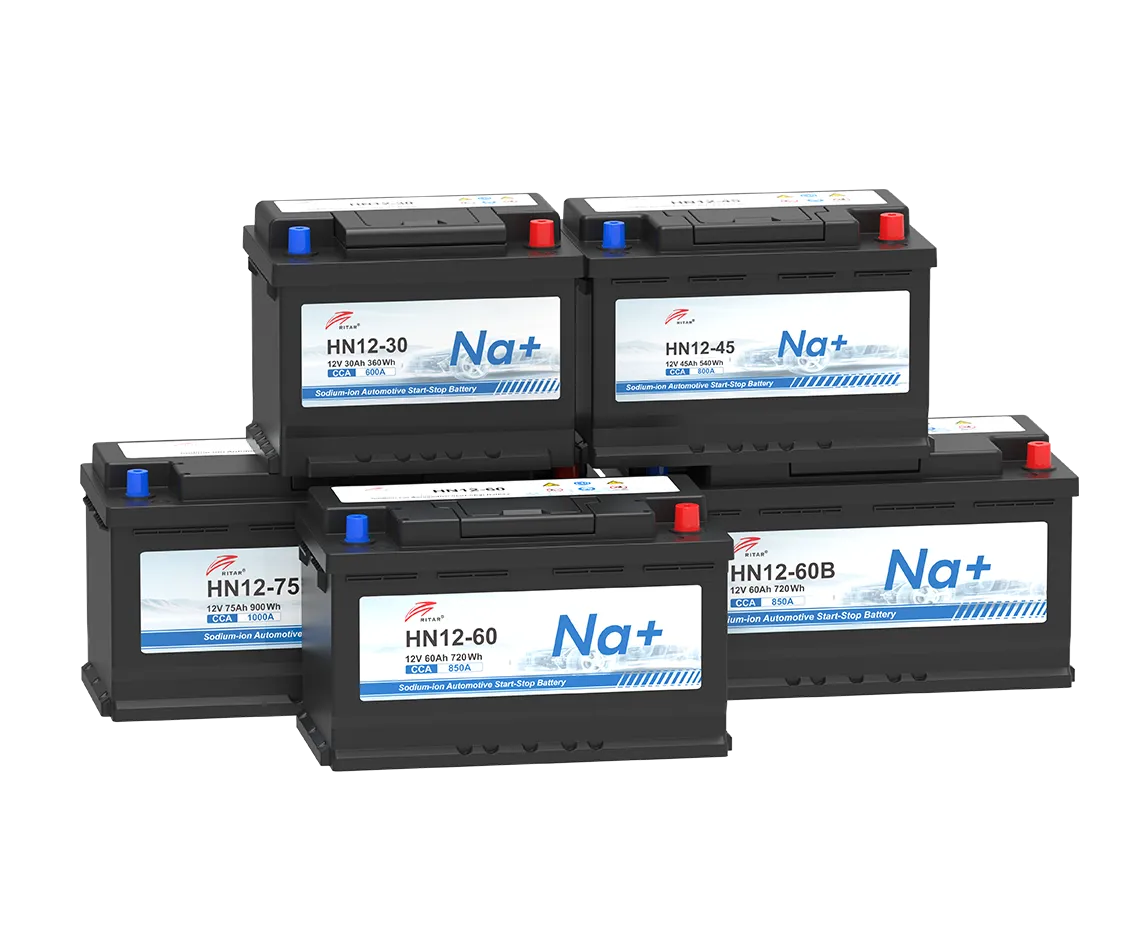

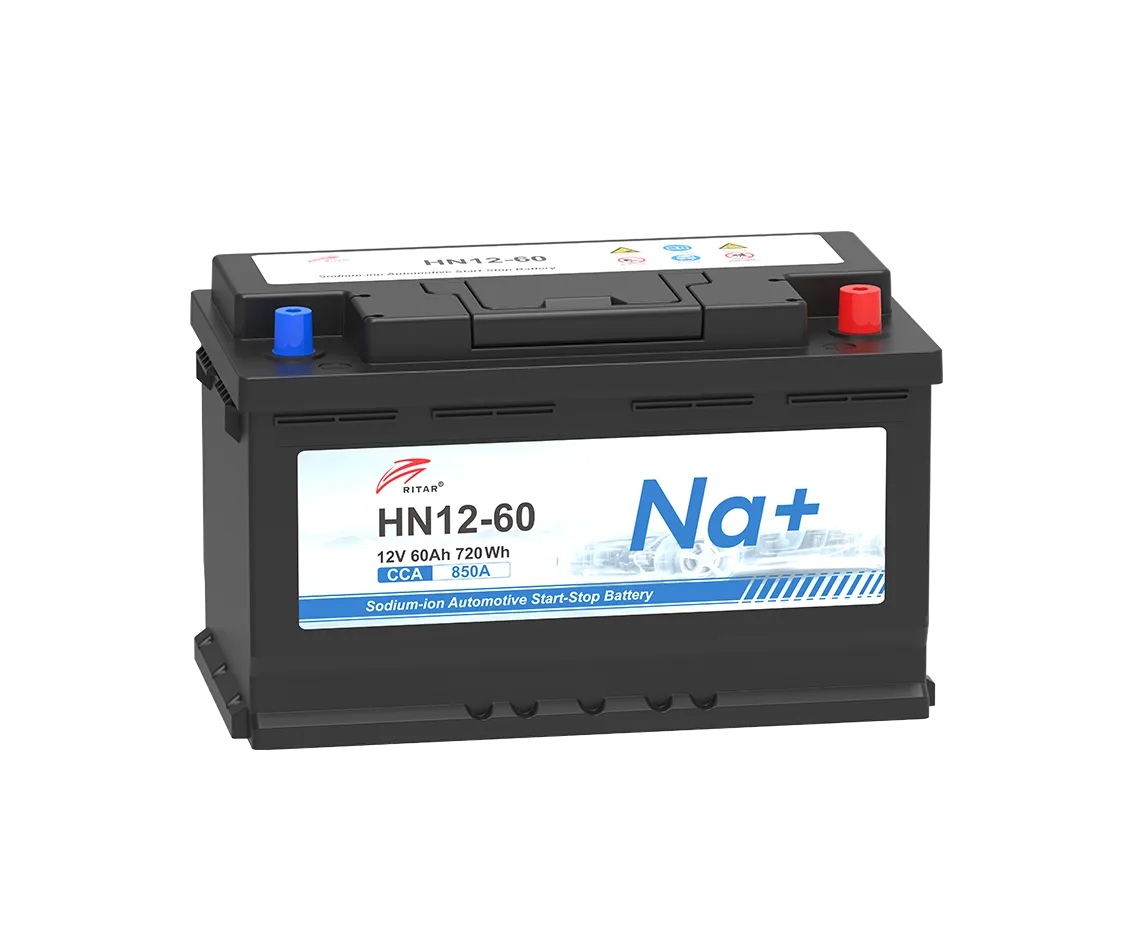

Battery Model | HN12-30 | HN12-45 | HN12-60 | HN12-60B | HN12-75 |
Cell Type | Sodium-ion Cylindrical Cell (NFPP cathode) | ||||
Nominal Voltage | 12 V | ||||
Nominal Capacity | 30 Ah | 45 Ah | 60 Ah | 60 Ah | 75 Ah |
Rated Energy | 360 Wh | 540 Wh | 720 Wh | 720 Wh | 900 Wh |
Rated Discharge Current | 30 A | 45 A | 60 A | 60 A | 75 A |
Cold Cranking Amperes (CCA) | 600 A | 800 A | 850 A | 850 A | 1000 A |
Voltage Range | 8 ~ 15 V | ||||
Charging Voltage | 13.4 ~ 15 V | ||||
Internal Resistance | ≤2.5 mΩ | ≤2.0 mΩ | ≤1.8 mΩ | ≤1.8 mΩ | ≤1.6 mΩ |
Net Weight (N.W.) | 5.5±3% kg | 7.5±3% kg | 9.5±3% kg | 9.8±3% kg | 11.5±3% kg |
Charging Temperature | -10℃ ~ 100℃ | ||||
Discharging Temperature | -40℃ ~ 100℃ | ||||
Storage Temperature | 0℃ ~ 45℃ (Long-term) | ||||
Humidity Range | 5 ~ 90%RH (No Condensation) | ||||
Cranking Cycles | ≥120000 times | ||||
IP Rating | IP67 | ||||
Self-Discharge Rate | ≤3%/Month | ||||
Dimensions (L*W*H, mm) | 242*175*190 | 278*175*190 | 315*175*190 | 353*175*190 | 394*175*190 |
Case Model | H5 (LN2) | H6 (LN3) | H7 (LN4) | H8 (LN5) | H9 (LN6) |
Case Material | ABS+30%PC | ||||
Terminal Post | Full‑knurled Single‑thread T2 Terminal Post | ||||
Balance Mode | Active Balancing Mode, Max Balancing Current: 3 A | ||||
