Patented automatic assembly technology
Safe, low-voltage operation
National fire safety certified
Overheating and explosion-proof for safe, reliable performance
Integrated 10kW/40kWh unified design
Supports PV and grid input for on/off-grid operation
Anti-islanding and AC short circuit protection
DC reverse connection and output over-current protection
AI-powered PV string fault monitoring
Natural cooling for silent operation
Ultra-slim body with flexible installation
LCD smart display with WIFI/4G support
Cloud data connection for remote monitoring via mobile/PC
Modular design for easy installation/disassembly
Zero commissioning for quick adaptation
315-450V
-20℃~50℃
Intelligent air-cooled
200kWh
IP54
OPzV Solid lead battery

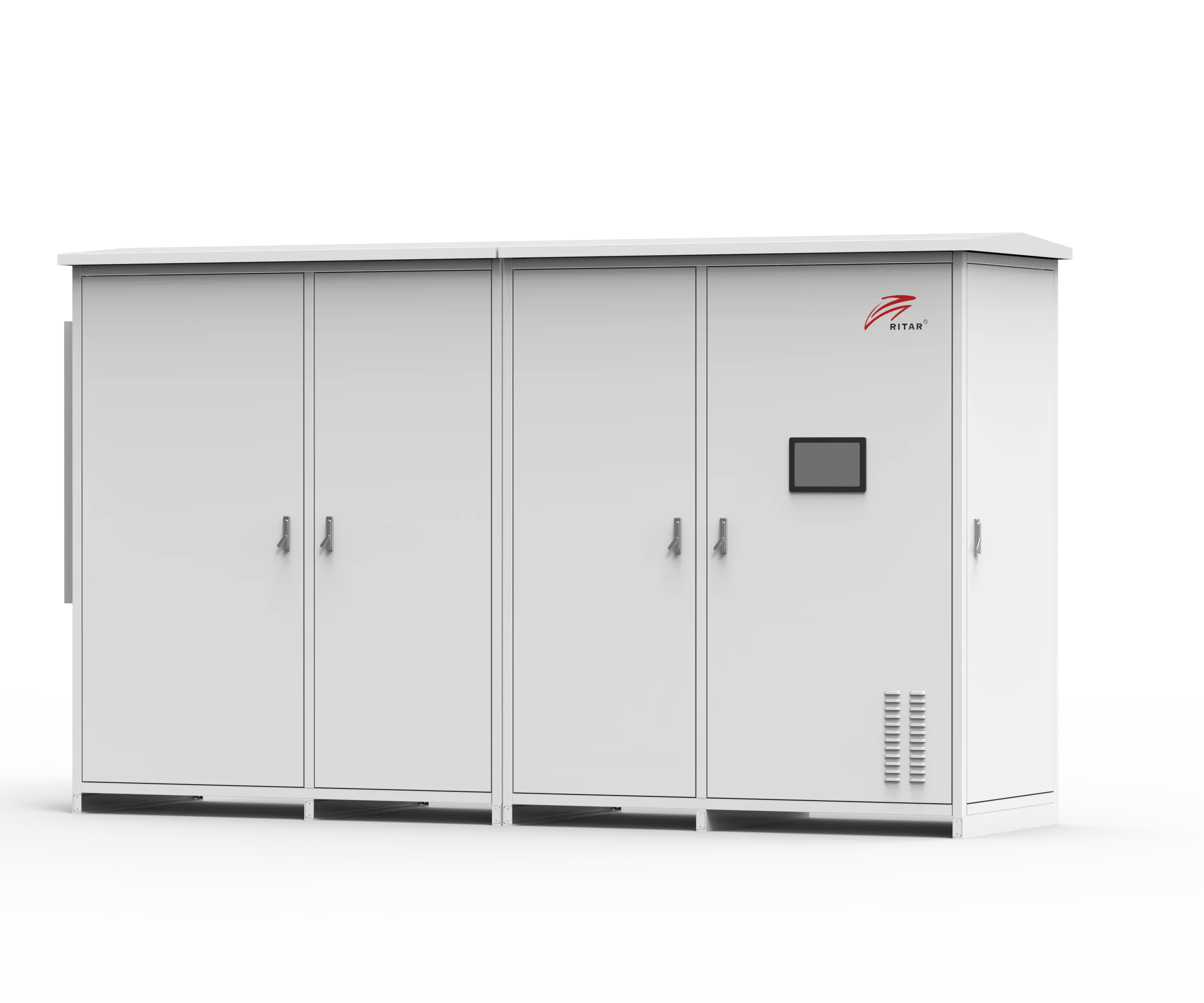

| Model | 50kW/200kWh |
|---|---|
| DC Side Parameters | |
| Maximum DC Power | 80kW |
| Maximum Current | 125A |
| DC Voltage Range | 560-850Vdc |
| AC Side Parameters | |
| Rated Output Power | 62.5kW |
| Maximum AC Current | 120A |
| Rated AC Voltage | 400Vac |
| Rated AC Current | 86A |
| Grid Frequency | 50Hz/60Hz |
| Grid Voltage | 315-450Vac |
| Output Mode | On-grid |
| Protection | Anti-islanding protection, Output overcurrent protection, DC reverse connection protection, String fault detection, AC/DC surge protection, AC short-circuit protection |
| Battery Parameters | |
| Battery Type | OPzV Solid lead battery |
| Cell Voltage | 2V |
| Cell Capacity | 300Ah |
| Energy Storage Capacity | 200kWh |
| Battery Number | 352 |
| Voltage Range | 633.6~827.2V |
| Rated Battery Voltage | 704Vdc |
| General Parameters | |
| Dimensions(WHD) | 452012002655 |
| Weight | 11.2t |
| Operating Temperature Range | -20°C~50°C |
| Cooling Method | Intelligent air-cooled |
| Maximum Working Altitude | 0~2000m (2000-4000 derating) |
| Operating Humidity | 0~95% (Condensation-free) |
| IP Code | IP54 |
| Display | LCD |
| Communication | RS485/CAN/LAN |
Residential
Industrial and Commercial
Data Center
Railway
Telecom Base Station
Motive Power
Others
