Patented automatic assembly technology
Safe, low-voltage operation
National fire safety certified
Overheating and explosion-proof for safe, reliable performance
Integrated 10kW/40kWh unified design
Supports PV and grid input for on/off-grid operation
Anti-islanding and AC short circuit protection
DC reverse connection and output over-current protection
AI-powered PV string fault monitoring
Natural cooling for silent operation
Ultra-slim body with flexible installation
LCD smart display with WIFI/4G support
Cloud data connection for remote monitoring via mobile/PC
Modular design for easy installation/disassembly
Zero commissioning for quick adaptation
380V/400V
-25℃~60℃
Intelligent air-cooled
40kWh
IP54
OPzV Solid lead battery

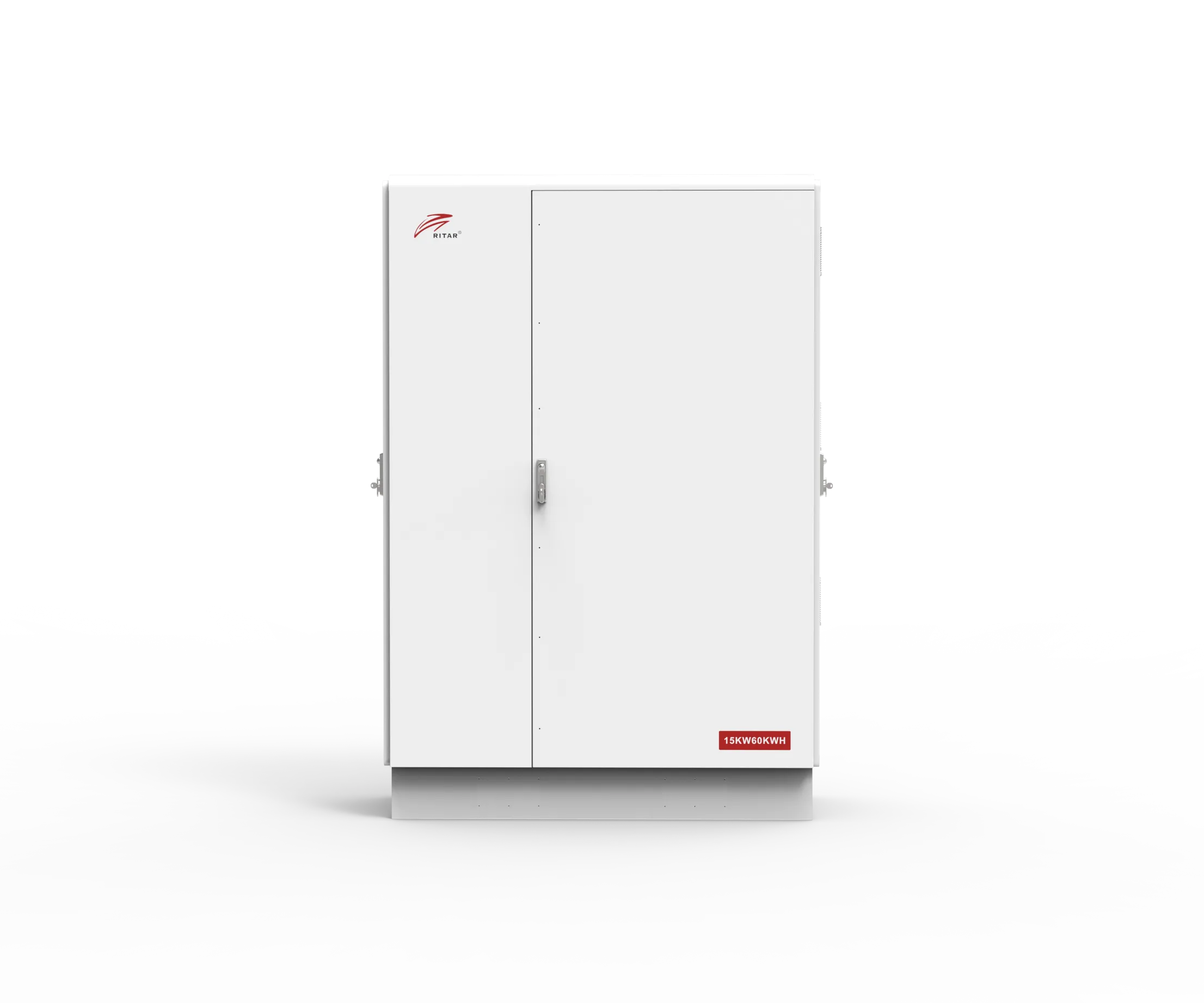

| Model | 15kW/60kWh |
|---|---|
| On-grid Parameters | |
| Rated Power | 15kW |
| Maximum Output Power | 16.5kW |
| Grid Voltage | 380-400V |
| Frequency | 50/60Hz |
| Maximum AC Current | 25A |
| Off-grid Parameters | |
| Output Power | 15kVA |
| Instantaneous Power | 16.5kVA |
| Off-grid Voltage | 380V/400V |
| Rated Current | 25A |
| Output Mode | On Grid (Default) / Off Grid |
| Protection | AC output overcurrent protection, Leakage protection, Insulation impedance testing, AC overvoltage/undervoltage protection, Load output short circuit protection |
| Battery Parameters | |
| Battery Type | OPzV Solid lead battery |
| Cell Voltage | 2V |
| Cell Capacity | 300Ah |
| Energy Storage Capacity | 60kWh |
| Battery Number | 98 |
| Voltage Range | 176.4~230.3V |
| Rated Battery Voltage | 196Vdc |
| General Parameters | |
| Dimensions(WHD) | 160010002000 |
| Weight | 3400kg |
| Operating Temperature Range | -25°C~60°C |
| Cooling Method | Intelligent air-cooled |
| Maximum Working Altitude | 0~3000m (>2000 derating) |
| Operating Humidity | 0~95% (Condensation-free) |
| IP Code | IP54 |
| Display | LCD |
| Communication | RS485/CAN/WiFi |
Residential
Industrial and Commercial
Data Center
Railway
Telecom Base Station
Motive Power
Others
