Patented automatic assembly technology
Safe, low-voltage operation
National fire safety certified
Overheating and explosion-proof for safe, reliable performance
Integrated 10kW/40kWh unified design
Supports PV and grid input for on/off-grid operation
Anti-islanding and AC short circuit protection
DC reverse connection and output over-current protection
AI-powered PV string fault monitoring
Natural cooling for silent operation
Ultra-slim body with flexible installation
LCD smart display with WIFI/4G support
Cloud data connection for remote monitoring via mobile/PC
Modular design for easy installation/disassembly
Zero commissioning for quick adaptation
400V/230V
-30℃~60℃
Intelligent air-cooled
100kWh
IP54
OPzV Solid lead battery

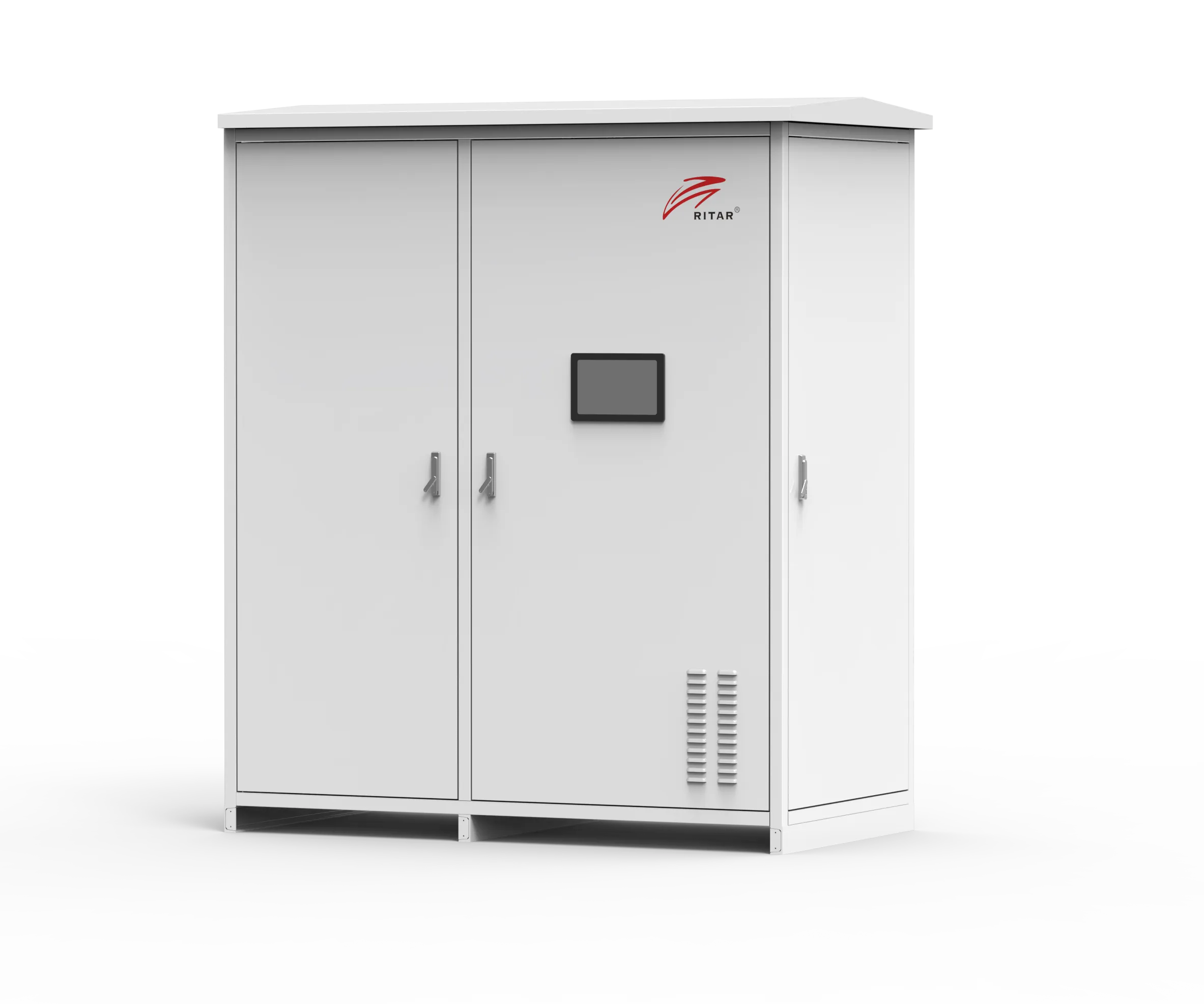

| Model | 30kW/100kWh |
|---|---|
| PV Parameters | |
| Maximum DC Power | 19.2kW+19.2kW |
| Maximum PV Voltage | 850V |
| MPPT Voltage Range | 200V~830V |
| Maximum PV Current | 32A+32A |
| PV Starting Voltage | 250V |
| On-grid Parameters (AC Side) | |
| Rated Power | 30kVA |
| Rated Current | 43.5A |
| Rated Voltage | 400V/230V |
| Frequency Range | 50Hz/60Hz |
| Power Factor | -0.8~0.8 |
| Protection | Anti-islanding protection, Output overcurrent protection, DC reverse connection protection, String fault detection, AC/DC surge protection, AC short-circuit protection |
| Battery Parameters | |
| Battery Type | OPzV Solid lead battery |
| Cell Voltage | 2V |
| Cell Capacity | 300Ah |
| Energy Storage Capacity | 100kWh |
| Battery Number | 168 |
| Voltage Range | 302.4~394.8V |
| Rated Battery Voltage | 336V |
| Off-grid Parameters (AC Side) | |
| Rated Voltage | 400V/230V |
| Maximum Output Power | 33kVA |
| Rated Output Power | 30kVA |
| Rated Output Current | 43.5A |
| Maximum Output Current | 48A |
| General Parameters | |
| Dimensions(WHD) | 240012002655 |
| Weight | 5500KG |
| Operating Temperature Range | -30~60°C |
| Cooling Method | Intelligent air-cooled |
| Maximum Working Altitude | 2000m |
| Operating Humidity | 5~95% |
| IP Code | IP54 |
| Display | LCD |
| Communication | RS485/CAN |
