Patented automatic assembly technology
Safe, low-voltage operation
National fire safety certified
Overheating and explosion-proof for safe, reliable performance

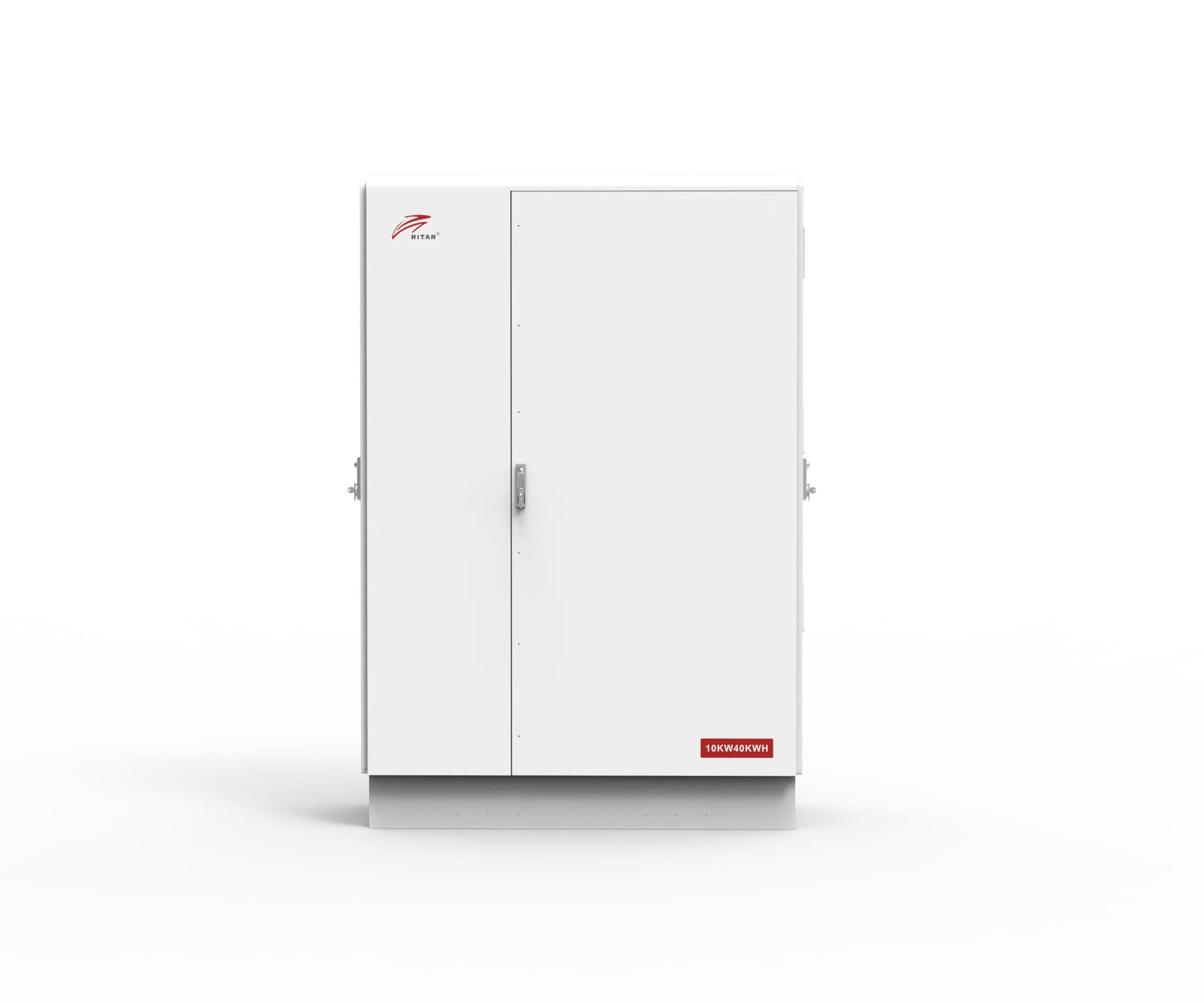

Integrated 10kW/40kWh unified design
Supports PV and grid input for on/off-grid operation
Anti-islanding and AC short circuit protection
DC reverse connection and output over-current protection
AI-powered PV string fault monitoring
Natural cooling for silent operation
Ultra-slim body with flexible installation
LCD smart display with WIFI/4G support
Cloud data connection for remote monitoring via mobile/PC
Modular design for easy installation/disassembly
Zero commissioning for quick adaptation
360V
-25℃~60℃
Intelligent air-cooled
40kWh
IP Code
OPzV Solid lead battery
| Model | 10kW/40kWh |
|---|---|
| PV Parameters | |
| Maximum Power | 15kW |
| Maximum Voltage | 550V |
| MPPT Voltage Range | 80-500V |
| MPPT Number | 2 |
| Number of Connectable Strings per MPPT | 1/2 |
| Maximum Input Current per MPPT | 16A/16A+16A |
| Rated PV Input Voltage | 360V |
| Starting Voltage | 100V |
| AC Parameters | |
| Rated Output Power | 10kW |
| Maximum Output Current | 43.5A |
| Grid Input Voltage | 230V |
| Maximum Apparent Output Power | 10kVA |
| Rated Grid Frequency | 50Hz/60Hz |
| Output Mode | On Grid (Default) / Off Grid / Hybrid |
| Protection | Anti-islanding protection, AC output overcurrent protection, Ground fault protection, Leakage protection, AC overvoltage/undervoltage protection, etc. |
| Battery Parameters | |
| Battery Type | OPzV Solid lead battery |
| Cell Voltage | 2V |
| Cell Capacity | 770Ah |
| Energy Storage Capacity | 40kWh |
| Battery Number | 24 |
| Voltage Range | 43.2~56.4V |
| Rated Battery Voltage | 48Vdc |
| General Parameters | |
| Dimensions(WHD) | 16008002370 |
| Weight | 1900kg |
| Operating Temperature | -25℃~60℃ |
| Cooling Method | Intelligent air-cooled |
| Maximum Working Altitude | 0~2000m (>2000 derating) |
| Operating Humidity | 0~95% (Condensation-free) |
| IP Code | IP54 |
| Display | LCD |
| Communication | RS485/CAN/WiFi (Optional) |
