EN

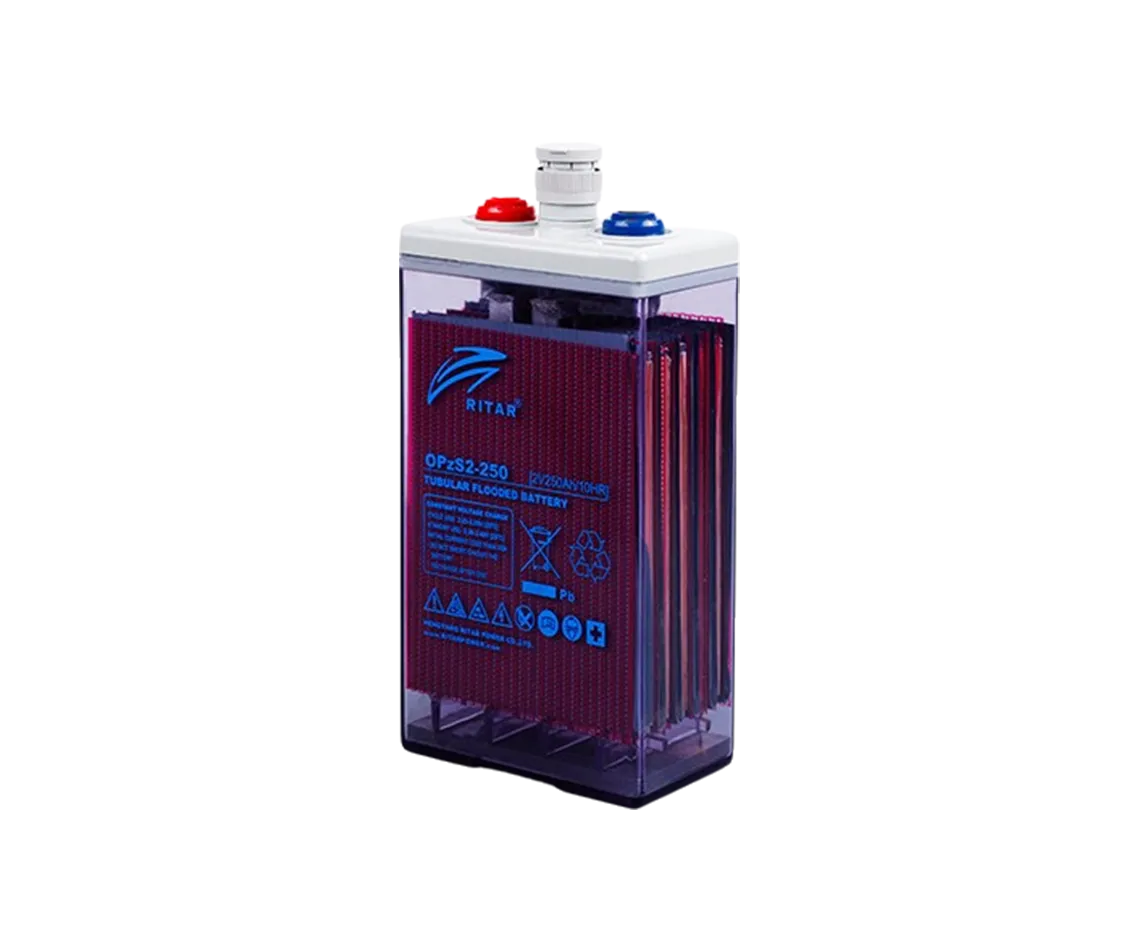

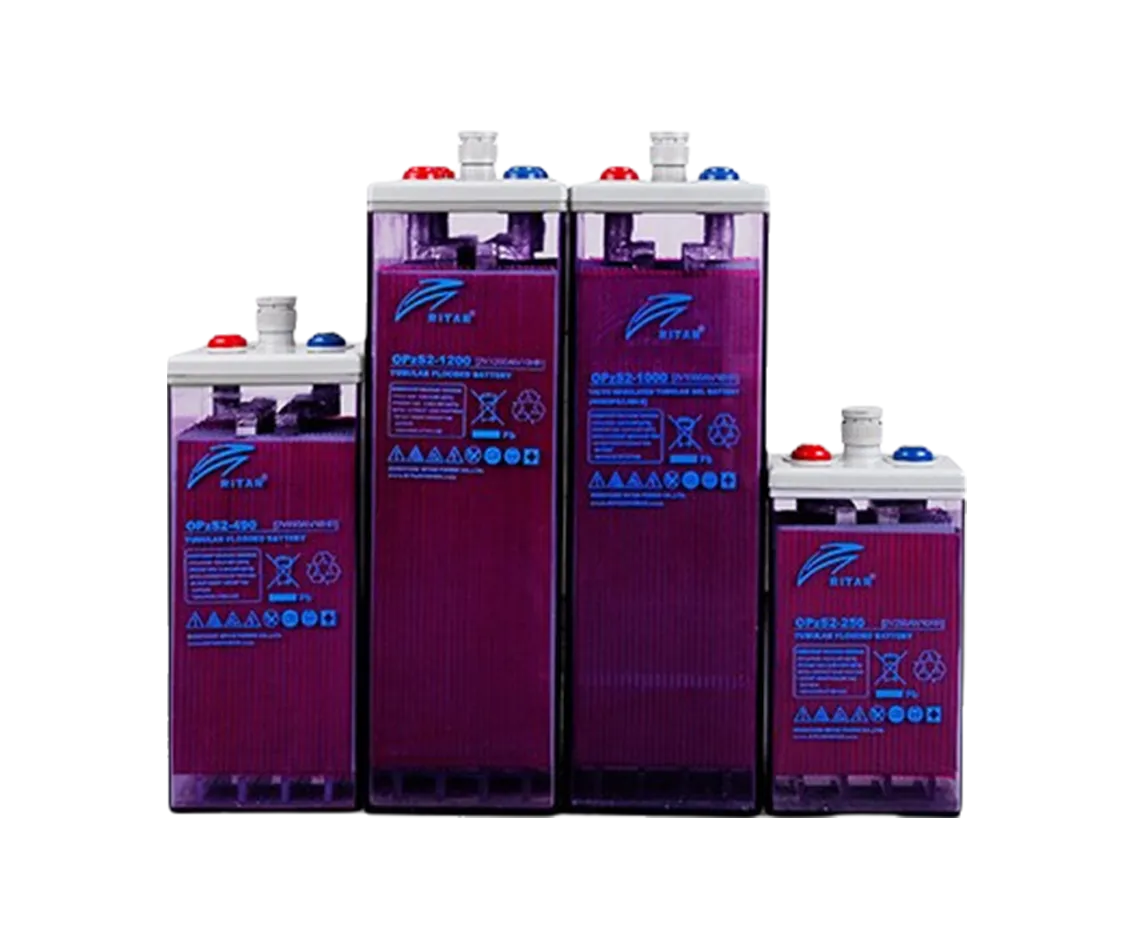

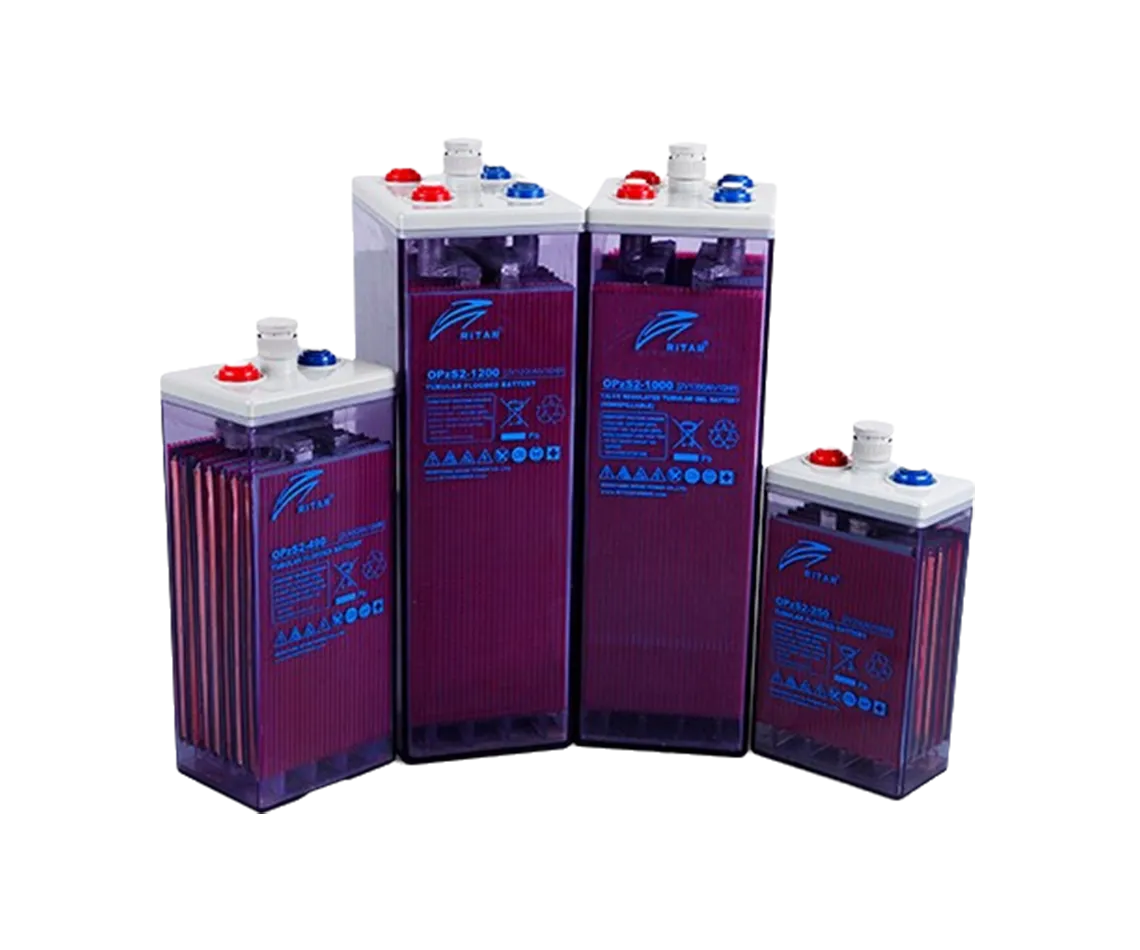

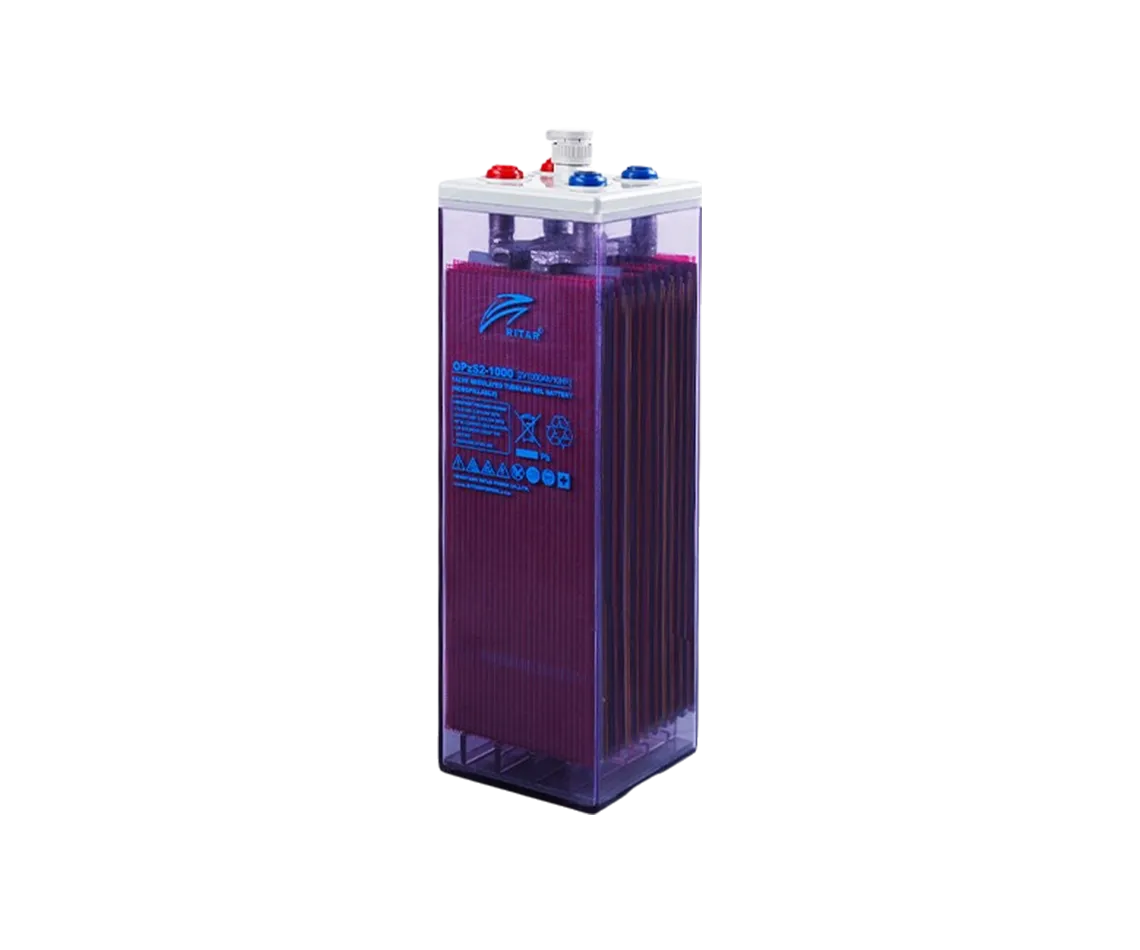

Flooded Tubular Batteries
OPzS series is a flooded Lead Acid battery that adopts Tubular Plate technology to offer high reliability and performance. The Battery is designed and manufactured according to DIN40736-2/IEC60896-11 standards and with die-casting positive spine and patent formula of active material. The OPzS series batteries offer 400% more cyclic life than the standby series. It is suitable for solar and wind renewable energy storage, traction etc. The OPzS series is the best choice for energy system in high altitude area.
250Ah -3000Ah
12V
6000 at 30% DOD
≤3.5 %/month
-15°C - 50°C
| Battery model | Rated voltage （V） | Rated capacity C10（Ah） | Battery size | Terminal options | Terminal location | |||
| Length/mm | Width/mm | Height/mm | Total height/mm | |||||
| OPzS2-250 | 2 | 250 | 124 | 206 | 356 | 413 | F10(M8) | G |
| OPzS2-300 | 2 | 300 | 145 | 206 | 356 | 413 | F10(M8) | G |
| OPzS2-350 | 2 | 350 | 124 | 206 | 471 | 528 | F10(M8) | G |
| OPzS2-420 | 2 | 420 | 145 | 206 | 471 | 528 | F10(M8) | G |
| OPzS2-490 | 2 | 490 | 166 | 206 | 471 | 528 | F10(M8) | G |
| OPzS2-600 | 2 | 600 | 145 | 206 | 646 | 703 | F10(M8) | G |
| OPzS2-770 | 2 | 770 | 210 | 254 | 471 | 528 | F10(M8) | G |
| OPzS2-800 | 2 | 800 | 191 | 210 | 646 | 703 | F10(M8) | H |
| OPzS2-1000 | 2 | 1000 | 233 | 210 | 646 | 703 | F10(M8) | H |
| OPzS2-1200 | 2 | 1200 | 275 | 210 | 646 | 703 | F10(M8) | H |
| OPzS2-1500 | 2 | 1500 | 275 | 210 | 795 | 852 | F10(M8) | H |
| OPzS2-2000 | 2 | 2000 | 399 | 214 | 770 | 827 | F10(M8) | I |
| OPzS2-2500 | 2 | 2500 | 487 | 212 | 770 | 827 | F10(M8) | J |
| OPzS2-3000 | 2 | 3000 | 576 | 212 | 770 | 827 | F10(M8) | J |
Residential
Industrial and Commercial
Data Center
Railway
Telecom Base Station
Motive Power
Others
