Flexible layout, supports parallel connection
Integrated design for easy installation and transportation
Liquid cooling solution system temperature deviation <3°C
IP55 protection level, meeting outdoor application requirements
Multiple intelligent fire protection systems, multi-layer electrical protection from battery to system
Six-sided flame retardant, triple fire protection design
Intelligent thermal management strategy
Cloud platform management and operation & maintenance
Energy-saving EMS, supports multi-site cloud management

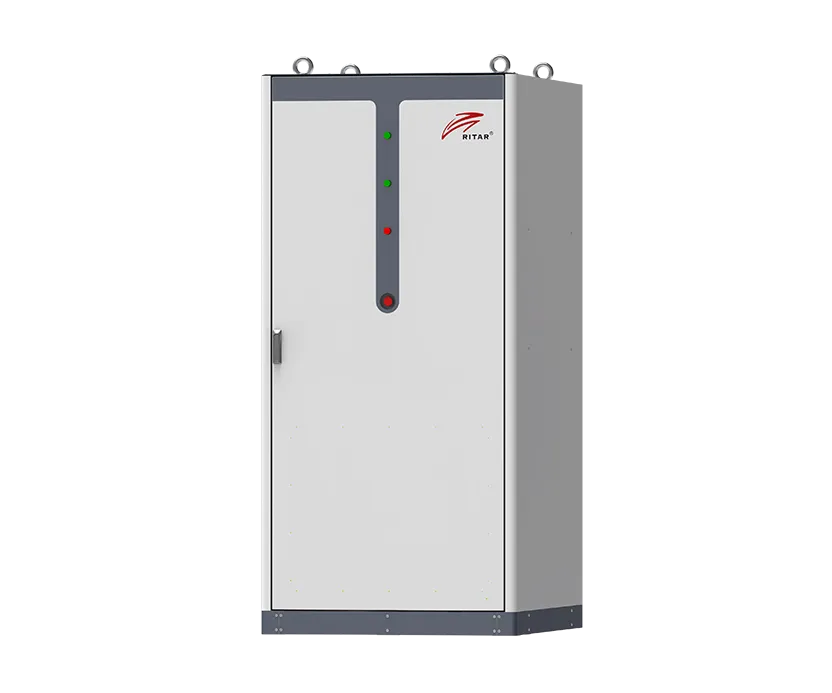

MegaCool BESS DC 20F5015KWH
LFP 314Ah
1331.2V
IP55
6000
-30℃ to 60℃
| Product Type | Liquid-cooled energy storage container | ||
| Product Mode | LFP battery energy storage system | ||
| S.N. | Item | Specification | |
| 1 | Configuration | 12P416S | |
| 2 | Battery Cells | 314Ah LFP, CALB L173F314A | |
| 3 | Rated Energy | 5.015MWh | |
| 4 | Rated Voltage | 1331.2V | |
| 5 | Voltage Range | 1164.8~1497.6V | |
| 0.5P SYSTEM | |||
| 6 | Charging Current (0.5P) | Rated | 157A |
| Maximum | 200.96A | ||
| 7 | Charging Power (0.5P) | Rated | 2508kW |
| 8 | Discharging Current (0.5P) | Rated | 157A |
| Maximum | 200.96A | ||
| 9 | Discharging Power (0.5P) | Rated | 2508kW |
| 10 | Auxiliary power supply (0.5P) | Voltage range | 3AC 380~480V |
| Power① | Max. 39.0 kW (Including BMS & Chiller consumption) | ||
| 11 | Operating Ambient Temperature | Charge② | -20°C~+55°C |
| Discharge | -20°C~+55°C | ||
| 12 | Environment condition | Storage Temperature③ | -30°C~+60°C |
| Application altitude | ≤3000 m.a.s.l. | ||
| 13 | General Parameters | Size | 2438mm(W)*6058mm(D)*2896mm(H) |
| Weight | ≤43t | ||
| IP Level | IP67 (Battery Module) / IP55 (Battery container) / IPX5 (Electrical cabin) / IPX6(Cooling unit) | ||
| Cooling mode | Liquid Cooling | ||
| Communication protocol | CAN, TCP/IP | ||
| Communication port | RS485, Fiber ST | ||
| Power connection | Cable lug: External: 8 x M12 single hole or double hole / phase Internal: 10 x M8 single hole or double hole /phase | ||
| Communication connection | Fast plug | ||
| Aux Power connection | Terminal | ||
| Coolant | 50% Ethylene glycol aqueous solution | ||
| 14 | Compliance | Battery cell | IEC62619 / UL1973 / UL9540A / UN38.3 |
| Battery Module | UL 9540A | ||
| Battery cluster | IEC 62619/IEC 63056/IEC 61000-6-2/4 UL1973/UL 9540A | ||
| Container | UN38.3/UN3536 | ||
