Standardized Safety Isolation & Partitioning
Active Safety Monitoring & Early Warning Systems
Pack-Level Immersion Fire Suppression Technology
IP54 Protection Grade for Enhanced Environmental Resilience
High-Efficiency Balancing BMS Technology
Advanced MPPT Technology for Maximum Solar Harvest
Reduced No-Loading Loss & High Operational Stability
Highly Integrated, All-in-One Design
Factory Prefabricated for Rapid On-Site Installation
Multi-Source Support: Load, Battery, Grid, and Diesel Generators
Multi-Mode Capability: Peak Shaving & Valley Filling
Off-Grid Uninterrupted Power Supply (UPS)

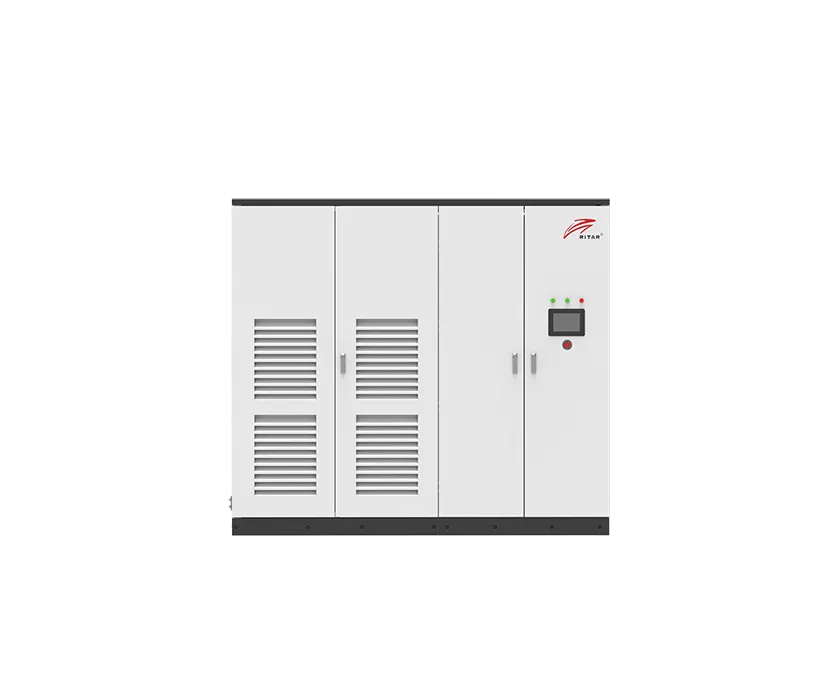

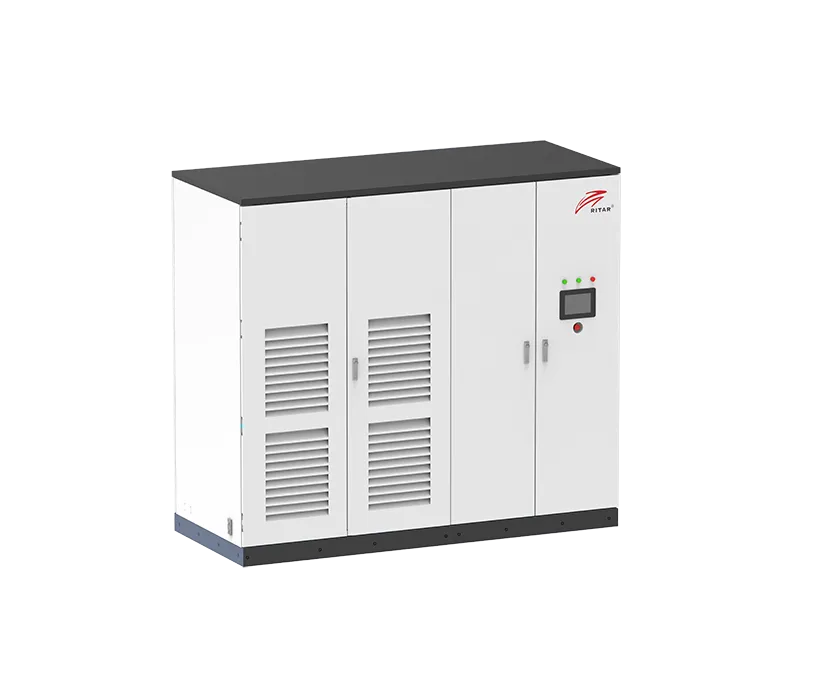

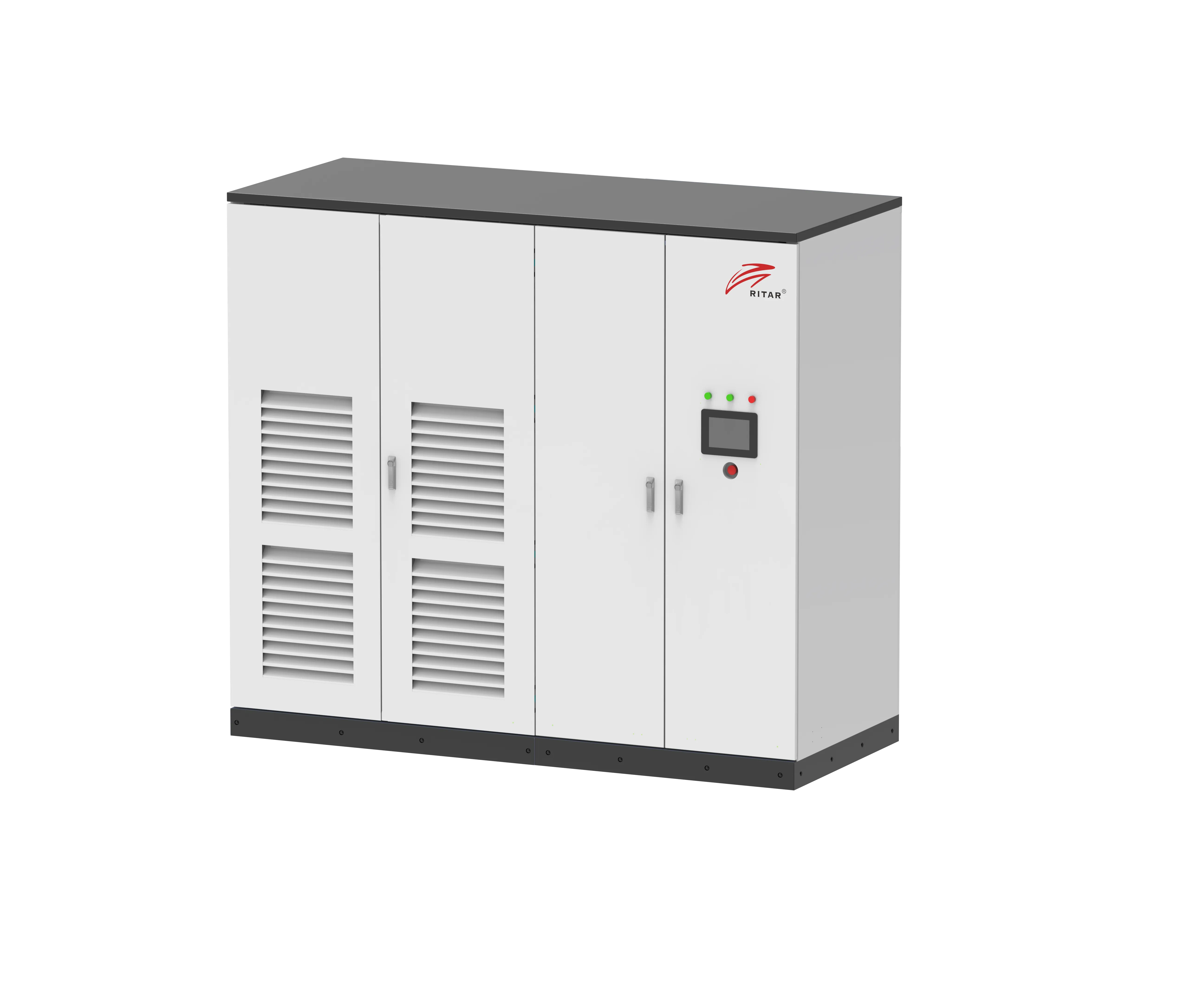

EnerCube-100KW215KWh-H
LFP 280Ah
672~864V
IP55/IP54
＞8000
-30℃ to 55℃
| Model | EnerCube-100KW215KWh-H | |
| Battery parameter | ||
| Cell type | LFP 280Ah | |
| Battery Pack configuration | 14.336KWh/1P16S | |
| Battery system configuration | 215KWh/1P240S | |
| Battery voltage range | 672~864V | |
| Temperature measurement quantity | 90 | |
| AC parameter | ||
| Rated AC power | 100KW | |
| Maximum AC power | 110KW | |
| Rated voltage | 400V | |
| Rated current | 144A | |
| Rated frequency | 50/60Hz | |
| DC current component | <0.5%Ipn | |
| AC current distortion rate | <3% | |
| Power factor | -1~+1 | |
| Overload capacity | 110% long term | |
| Alternating current system | Three-phase four-wire + ground wire (3W+N+PE) | |
| Isolation transformer | Yes | |
| Photovoltaic parameter | ||
| Maximum photovoltaic input voltage | 1000V | |
| Maximum photovoltaic power | 120KW | |
| MPPT voltage range | 250VDC-850VDC | |
| MPPT voltage range @ full load | 450VDC-850VDC | |
| Common parameter | ||
| Outdoor battery cabinet | Hybrid inverter outdoor cabinet | |
| Protection class | IP55 | IP54 |
| Fire protection system | Perfluorohexone + aerosol | -- |
| Operating temperature range | -30℃ to 55℃ | -30℃ to 55℃ |
| Cooling mode | Air conditioning cooling | Intelligent air cooling |
| Size WDH (mm) | 1200 * 1100 * 2280 | 1500 * 1100 * 2280 |
| Weight (kg) | 2600 | 1500 |
| Communication mode | CAN, RS485 | RS485, TCP/IP |
| Display | Touch LCD display | Touch LCD display |
| Relative humidity | 5~95%RH, no condensation | 5~95%RH, no condensation |
| Highest altitude | 4500m (> 3000 Derating required) | 4500m (> 3000 Derating required) |
| Noise | <70dB | < 70dB |
