Flexible layout, supports parallel connection
Integrated design for easy installation and transportation
Liquid cooling solution system temperature deviation <3°C
IP55 protection level, meeting outdoor application requirements
Multiple intelligent fire protection systems, multi-layer electrical protection from battery to system
Six-sided flame retardant, triple fire protection design
Intelligent thermal management strategy
Cloud platform management and operation & maintenance
Energy-saving EMS, supports multi-site cloud management

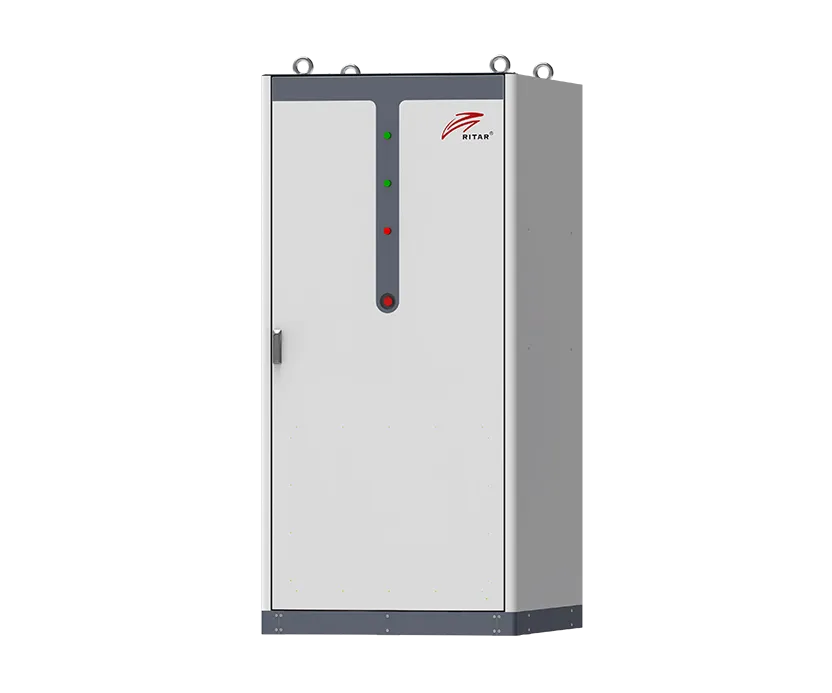

20C2H1500
LFP 314Ah
1075.2V-1363.2V
IP55
＞6000
-30℃ to 55℃
| Item | 20C2H1500 |
| DC Data | |
| Battery chemistry | Lithium Iron Phosphate (LFP) |
| Cell life cycle | 70% Retention with 8000 Cycles @0.5C 25℃ |
| Cell specification | 3.2V314Ah |
| String conguration | 1P384S |
| Number of strings | 8 |
| DC rated energy capacity | 3,086 kWh |
| Rated voltage | 1228.8V |
| Voltage range | 1075.2V-1363.2V |
| BMS communication interface | Rs485, Ethernet |
| BMS communication protocol | CAN,TCP/IP |
| AC Data | |
| Rated AC Power | 1725kW |
| Maximum AC power | 1898kW |
| Rated voltage | AC 690V |
| Grid voltage range | 690(-15%~10%)V |
| AC frequency | 50/60(-5~5)Hz |
| Output THDi | <3% (rated output power) |
| AC PF | 0.99/-1~+1 |
| AC output | 3W+PE |
| General Data | |
| Dimension w/o clearances (LWH) | Container size 6058x2438x2896mm |
| Weight of the whole system | ≤35t |
| Degree of protection | Ip55 |
| Operating temperature range | -20~50℃ ( Max.-30~55℃) |
| Relative humidity | 0~95℃ (non-condensing) |
| Max working altitude | ≤2000 m.a.s.l. |
| Cooling concept of DC hatch | Liquid cooling |
| Fire fighting system | aerosol + water |
| Communication interfaces | Modbus |
| Certificate | IEC62619, IEC63056, CE, UN38.3, IEC61000-6-2/4, UL1973, UL9540A |
