Solid-state Lead Battery
25-Year Ultra-Long Life
Solid-State Electrolyte Technology
Maintenance-Free & Leak-Proof
Excellent Deep Cycle Recovery
Advanced Tubular Plate Design

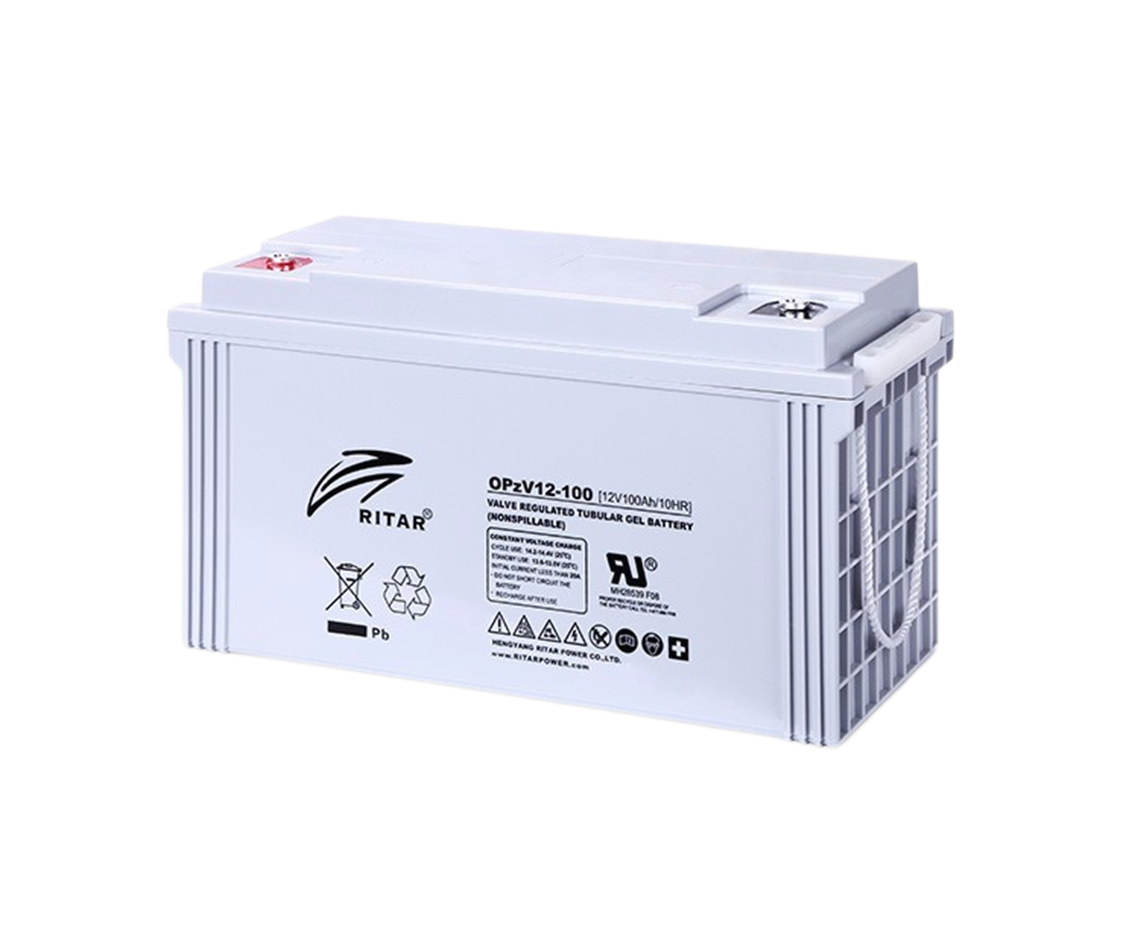

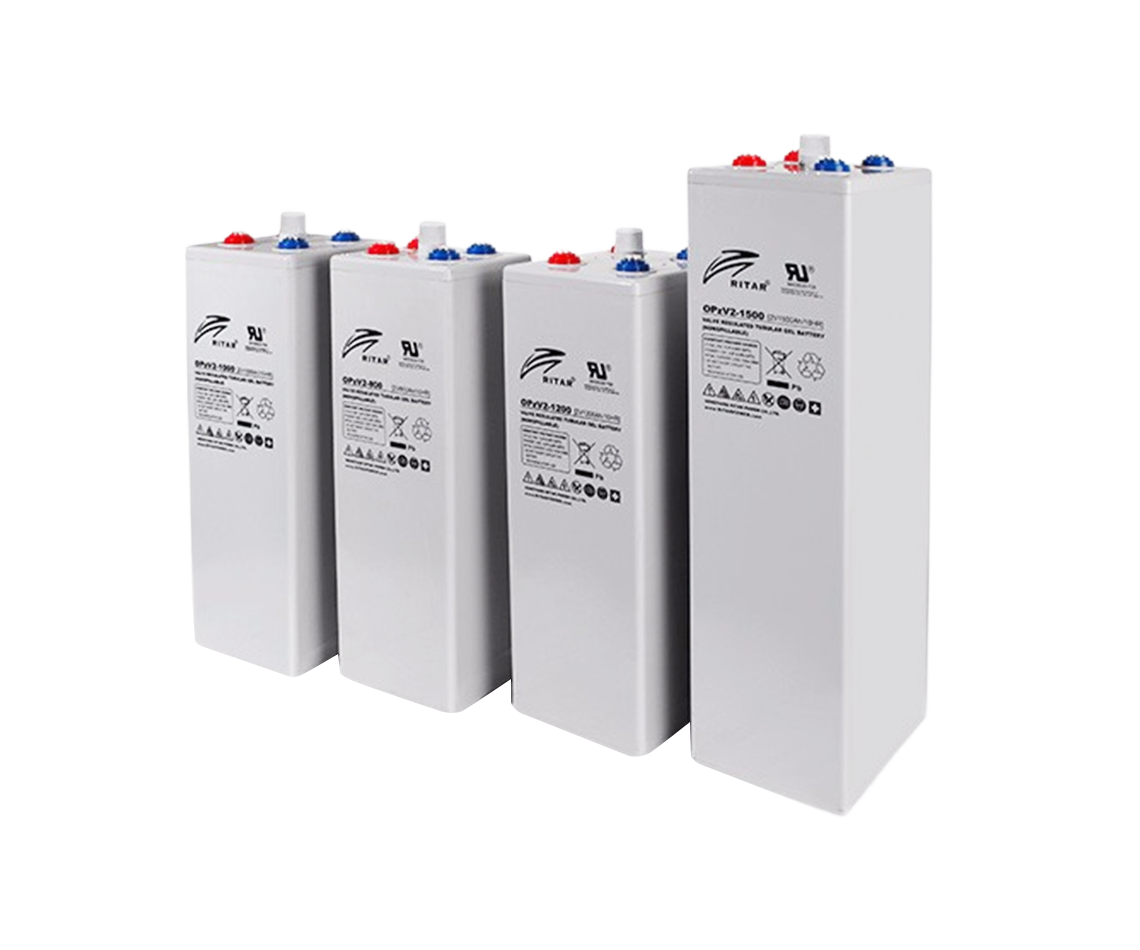

OPzV series adopts nano gas-phase silica solid-state electrolyte and Tubular Plate technology, offering high reliability and stable performance.The OPzV series is designed and manufactured according to DIN standards, with die-casted positive grid and patented active material formula, they exceed the DIN standard values. They offer 20~25 cyclic years design life in float service 25°C and are suitable for cyclic use under extreme operating conditions. Suitable for power supply in photovoltaic/wind energy storage, telecommunication and UPS applications.
160Ah-3000Ah
2V/12V
20-25 Years
≤2 %/month
3500 at 80%DOD (2V)
2200 at 80%DOD (12V)
-40°C - 60°C
Featuring Advanced Tubular Plates and Silica Nanofibre Electrolyte for Superior Deep Cycle Performance in Extreme Environments.
Superior thermal stability and a wide operating temperature range, performing perfectly in scorched deserts or freezing remote areas.
Exceptional recovery capabilities after deep discharges, making it the ideal choice for solar, wind, and renewable energy systems.
Robust tubular positive plates prevent active material shedding, ensuring consistent performance even under frequent deep cycles.
Ritar Solid State OPzV Technology: Defining New Standards in Long-Duration Energy Storage
·Ultimate Security ·Sustainable Development ·ECO Friendly ·Highly Economical
Adopting the indoor flexible stacking method to maximize space utilization. It features flexible installation layout and can be deployed in stairwells, underground parking lots, beside power distribution rooms and other locations. For urban land-scarce scenarios, it is an ideal solution to reduce the footprint of energy storage power stations.
| Battery Model | Rated Voltage (V) | Rated Capacity C₁₀ (Ah) | Battery Dimensions (mm) | Terminal Option | Terminal Position | |||
| Length | Width | Height | Total Height | |||||
| OPzV6-160 | 6 | 160 | 322 | 177.5 | 226 | 231 | F14(M8) | C |
| OPzV12-70 | 12 | 70 | 306.5 | 168.5 | 210 | 215 | F12(M8) | C |
| OPzV12-80 | 12 | 80 | 328 | 172 | 215 | 220 | F12(M8) | C |
| OPzV12-90 | 12 | 90 | 407 | 177 | 225 | 225 | F12(M8) | C |
| OPzV12-110 | 12 | 110 | 483 | 170 | 241 | 241 | F12(M8) | C |
| OPzV12-120 | 12 | 120 | 483 | 170 | 241 | 241 | F12(M8) | C |
| OPzV12-140 | 12 | 140 | 532 | 207 | 214 | 219 | F12(M8) | E |
| OPzV12-160 | 12 | 160 | 522 | 240 | 219 | 224 | F12(M8) | E |
| OPzV12-180 | 12 | 180 | 522 | 240 | 219 | 224 | F10(M8) | E |
| OPzV12-200 | 12 | 200 | 521 | 268 | 220 | 225 | F14(M8) | E |
| OPzV2-200 | 2 | 200 | 103 | 206 | 355 | 390 | F10(M8) | G |
| OPzV2-250 | 2 | 250 | 124 | 206 | 355 | 390 | F10(M8) | G |
| OPzV2-300 | 2 | 300 | 145 | 206 | 355 | 390 | F10(M8) | G |
| OPzV2-350 | 2 | 350 | 124 | 206 | 470 | 505 | F10(M8) | G |
| OPzV2-420 | 2 | 420 | 145 | 206 | 470 | 505 | F10(M8) | G |
| OPzV2-500 | 2 | 490 | 166 | 206 | 470 | 505 | F10(M8) | G |
| OPzV2-770 | 2 | 770 | 210 | 254 | 470 | 505 | F10(M8) | G |
| OPzV2-600 | 2 | 600 | 145 | 206 | 645 | 680 | F10(M8) | G |
| OPzV2-800 | 2 | 800 | 191 | 210 | 645 | 680 | F10(M8) | H |
| OPzV2-1000 | 2 | 1000 | 233 | 210 | 645 | 680 | F10(M8) | H |
| OPzV2-1200 | 2 | 1200 | 276 | 210 | 645 | 680 | F10(M8) | H |
| OPzV2-1500 | 2 | 1500 | 275 | 210 | 795 | 830 | F10(M8) | H |
| OPzV2-2000 | 2 | 2000 | 399 | 214 | 770 | 805 | F10(M8) | I |
| OPzV2-2500 | 2 | 2500 | 487 | 212 | 770 | 805 | F10(M8) | J |
| OPzV2-3000 | 2 | 3000 | 576 | 212 | 770 | 805 | F10(M8) | J |
