Standardized cabinets realize partition safety isolation of energy storage system, active safety monitoring and early warning design, and Pack-level immersion fire technology to ensure the safety and control of the system;
Efficient thermal management design, hierarchical linkage protection, to ensure the safe and stable operation of products;
Integrated design, highly integrated; Decentralized deployment and centralized scheduling;
Compact structure, small footprint, easy to install operation and maintenance;
IP54 protection grade, stronger environmental adaptability;
Standardized design reduces operation and maintenance costs, standardized production achieves rapid delivery, and reduces overall life cycle costs;
High-efficiency balancing BMS: single-group string design + high-efficiency balancing technology;
High-performance optical storage all-in-one: support load, battery, power grid or diesel generator, photovoltaic simultaneously;
Multi-capability of one machine: photovoltaic + energy storage mode, solve the small power supply in remote areas, and off-grid uninterrupted power supply, dynamic capacity expansion, peak cutting and valley filling optimization power mode;
The energy storage system is prefabricated in the factory to reduce the cost of on-site installation;
Maximize the use of green energy and save money on electricity bills.

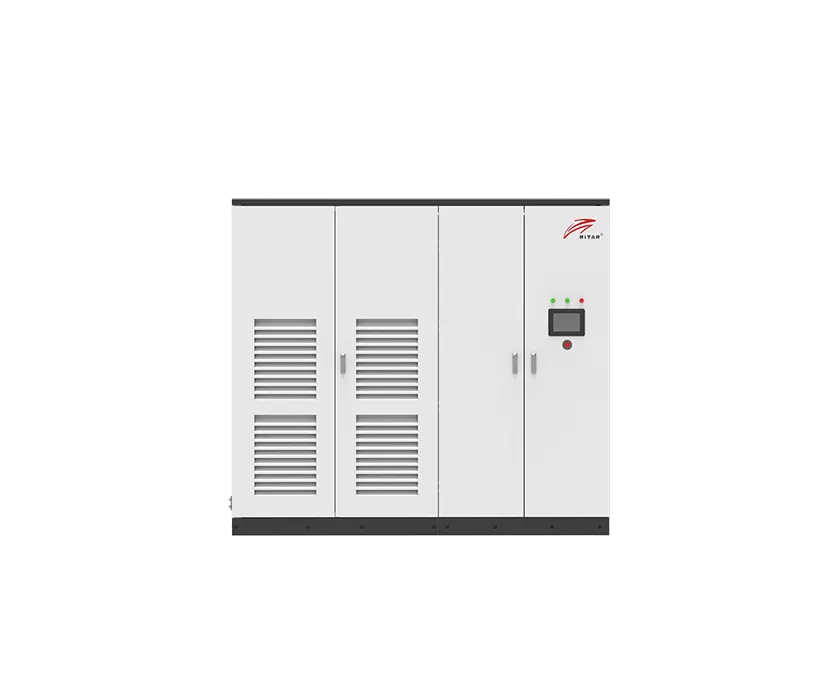

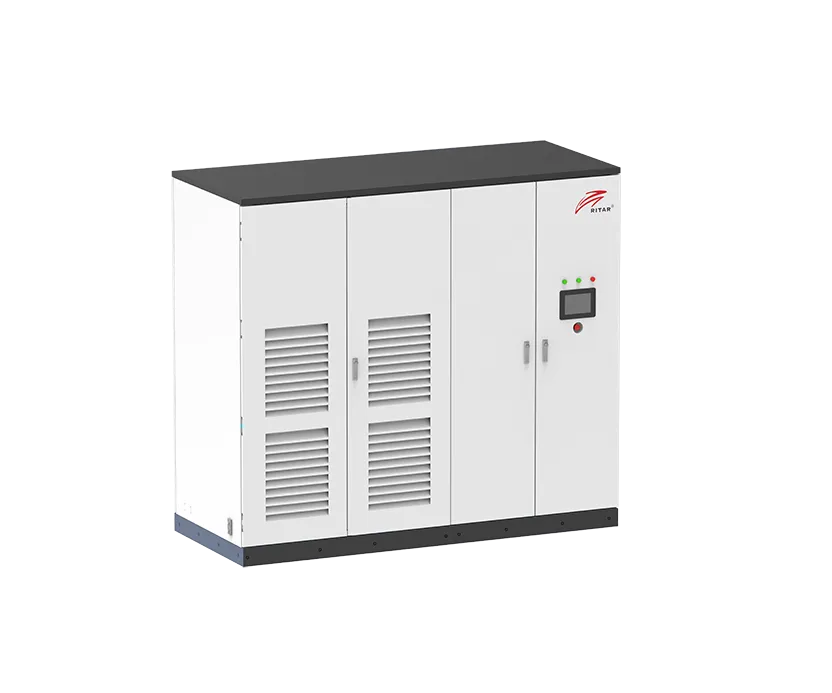

| Model | EnerCube-100KW200KWh-H | |
| Battery parameter | ||
| Cell type | LFP 280Ah | |
| Battery Pack configuration | 14.336KWh/1P16S | |
| Battery system configuration | 200KWh/1P224S | |
| Battery voltage range | 627~806V | |
| Temperature measurement quantity | 84 | |
| AC parameter | ||
| Rated AC power | 100KW | |
| Maximum AC power | 110KW | |
| Rated voltage | 400V | |
| Rated current | 144A | |
| Rated frequency | 50/60Hz | |
| DC current component | <0.5%Ipn | |
| AC current distortion rate | <3% | |
| Power factor | -1~+1 | |
| Overload capacity | 110% long term | |
| Alternating current system | Three-phase four-wire + ground wire (3W+N+PE) | |
| Isolation transformer | Yes | |
| Photovoltaic parameter | ||
| Maximum photovoltaic input voltage | 1000V | |
| Maximum photovoltaic power | 120KW | |
| MPPT voltage range | 250VDC-850VDC | |
| MPPT voltage range @ full load | 450VDC-850VDC | |
| Common parameter | ||
| Outdoor battery cabinet | Hybrid inverter outdoor cabinet | |
| Protection class | IP55 | IP54 |
| Fire protection system | Perfluorohexone + aerosol | -- |
| Operating temperature range | -30℃ to 55℃ | -30℃ to 55℃ |
| Cooling mode | Air conditioning cooling | Intelligent air cooling |
| Size WDH (mm) | 1200 * 1100 * 2280 | 1500 * 1100 * 2280 |
| Weight (kg) | 2500 | 1500 |
| Communication mode | CAN, RS485 | RS485, TCP/IP |
| Display | Touch LCD display | Touch LCD display |
| Relative humidity | 5~95%RH, no condensation | 5~95%RH, no condensation |
| Highest altitude | 4500m (> 3000 Derating required) | 4500m (> 3000 Derating required) |
| Noise | <70dB | < 70dB |
