High safety LFP battery is selected with UL9540A test.
Fire detection and pack level fire suppression system with combustible gas linkage ventilation and explosion panel design on the roof.
Multiple electrical protection and highly strength structure design to meet seismic, wind and other load requirement with high protection level and anti-corrosion level.
Innovation individual rack based liquid cooling technology with cell temperature difference controlled within 3 ℃ and prolonged life cycle above 20% with minimum service interventions during the life span.
Less LCOS within life span: Smart battery management system enhancing the cell consistency, supporting deployment and augmentation in batches. LCOS decreased up to 20% for the entire life.

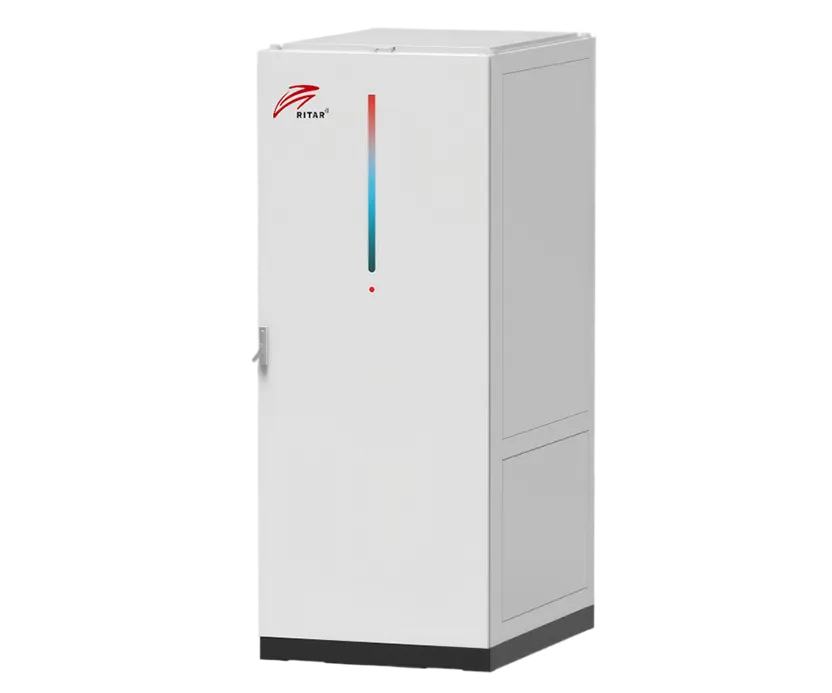

All-in-one design with liquid cooled battery rack pre-installed and a plug and play interface for auxiliary power supply, communication, and DC connection, which can be installed as a single system or as a system of multiple paralleled cabinets.
Supports remote and local monitoring and O&M.
Fully tested before delivery, easy to transport and less on-site installation.
| Model | EnerCube-372KWh | ||
| Item | Cell | Cell Pack | Cell Cluster |
| Rated Voltage (V) | 3.2 | 166.4 | 1331.2 |
| Rated Capacity (Ah) | 280 | 280 | 280 |
| Rated Energy (KWh) | 0.896 | 36.592 | 372.726 |
| Charge Cut-off Voltage (V) | 3.65 | 187.2 | 1497.6 |
| Discharge Cut-off Voltage (V) | 2.5 | 145.6 | 1164.8 |
| Max. Charge current (C) | 1 | 0.5 | 0.5 |
| Max. Discharge current (C) | 1 | 0.5 | 0.5 |
| DC Protection | Breaker + Fuse | ||
| Battery Pack Protection Level | IP67 | ||
| Operating Temperature(℃) | Charge: 0~45; Discharge: -20~60 | ||
| Dimensions(WDH) (mm) | 71174204 | 8101130232 | 92511802200 |
| Weight (kg) | 5.34±0.15 | 330±5 | 2800 |
| System parameters | |||
| Rated Energy | 372.7kWh | ||
| No. of Modules | 8 pcs | ||
| DC Round Trip Efficiency (0.5CP) | >93% | ||
| Rated Voltage | 1331.2V | ||
| Operating Voltage | 1165~1498V | ||
| Rated C-rate | 0.5CP | ||
| Max. C-rate | 1CP(≤1min) | ||
| Operating Temperature | -30℃~60℃ | ||
| Working Relative Humidity | 0~100% | ||
| Altitude | Maximum 3000m (derating above 3000m) | ||
| Cooling Method | Liquid cooling (water and glycol mix) | ||
| Fire Suppression | Water FSS/Aerosol (Optional) | ||
| Auxiliary Power Input | 220VAC/50Hz;110VAC/60Hz ( Optional) | ||
| Communication Interface | CAN/RS485/Ethernet | ||
| Communication Protocol | Modbus/IEC 61850 | ||
| Standards & Compliance | NFPA68/69, NFPA855, GB36276, IEC62619, IEC62933, UN38.3, UN3536, UL1973, UL9540A | ||
| IP Rating | IP55 | ||
| Dimensions(WDH) | 130013002316mm | ||
| Weight | 3,500kg | ||
