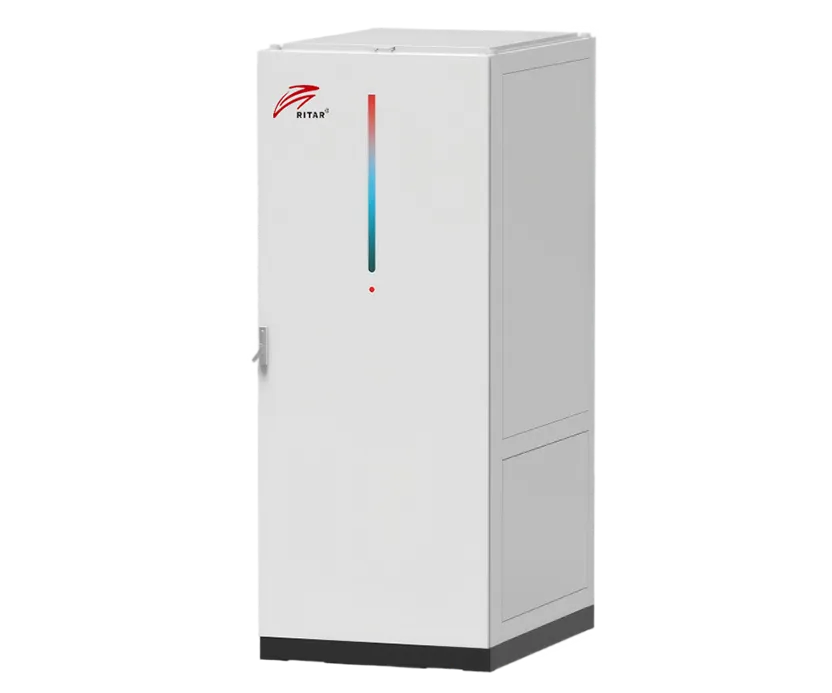

Liquid-cooled Energy Storage Cabinet
Modular energy block design, modular spare parts, more convenient maintenance.
Data, video high-speed access to the cloud, remote active fire extinguishing, to achieve true unattended.
Profits are clearer, data is more transparent, operation and maintenance is easier.
High safety LFP battery is selected with UL9540A test.
Multi-layer fire protection, rapid suppression of thermal runaway.
Top burst design to prevent the risk of explosion.
Battery health AI management, early warning of failure battery.
Noise reduction by 50%, suitable for large commercial buildings, parks and other areas.
Multiple electrical protection and highly strength structure design to meet seismic, wind and other load requirement with high protection level and anti-corrosion level.
High energy density, no junction cabinet, saving floor space.
PCAK/PCS modular design, reduce failure loss, high system availability.
Single rack management, no inter rack circulation, improve the system energy charge/discharge capacity.
Liquid cooling, longer system life, lower auxiliary power consumption.
Modular products plug and play.
Automatic SOC balancing between Packs.
Equipment foundation no need excavation design, save the site civil construction cost.
With the functions of parallel off-grid, backup power, three-phase imbalance management, etc.
Fully tested before delivery, easy to transport and less on-site installation.
Suitable for various application scenarios.
| Product | EnerCube-125kw/261kwh | |
| Product Mode | LFP battery energy storage system | |
| AC Side | ||
| S.N. | Item | Specification |
| 1 | Rated Power | 125kW |
| 2 | Rated Grid Voltage | AC 400V |
| 3 | Grid Voltage Range | AC 340V~460V |
| 4 | Distribution Power Supply | AC 220V |
| 5 | AC Access Method | Three-phase four wire system |
| 6 | Grid Frequency Range | 50±2.5Hz |
| 7 | Grid Voltage Range | -15% ~ +15% |
| 8 | Total Harmonic Distortion Rate of Current | ≤3% Full Load |
| 9 | Power Factor | -1 ~ +1 |
| DC Side | ||
| S.N. | Item | Specification |
| 10 | Battery Cell Type | LFP 314Ah |
| 11 | System Configuration | 5×1p52s |
| 12 | Installed Energy Capacity | 261.248kWh |
| 13 | Voltage Range | DC 728V ~ 923V |
| 14 | Nominal Voltage | 832V |
| 15 | Rated DC Current | 157A |
| 16 | Maximum DC Current | 179.4A |
| 17 | Operating Temperature Range | 0℃~55℃ (Charge) / -30℃~55℃ (Discharge) |
| System Specification | ||
| S.N. | Item | Specification |
| 18 | Overall Dimension (W×D×H) | 1100mm×1400mm×2350mm |
| 19 | Maximum Efficiency | Under Rated ≥90% |
| 20 | Operating Temperature | -30℃ ~ +55℃ |
| 21 | Allowable Relative Humidity | ≤95% Free of condensation |
| 22 | Noise | ≤75dB |
| 23 | Cooling Method | PCS: Air-cooling / Battery: Liquid Cooling |
| 24 | Protection Grade | IP55 |
| 25 | Altitude | ≤2000 m.a.s.l. |
| 26 | Weight | 3t |
| 27 | Communication Protocol | MODBUS TCP, IEC104, 4G |
