RT Series Lead-Acid Batteries

Capacity range: ≤28Ah (C20, 25℃)
Rated voltage: 6V/12V/24V
Designed floating charge life: 6-8 years
Meet IEC, JIS, BS, VDS and GB/T testing standards
Pass UL, CE, ISO9001, ISO14001 and ISO45001 certifications

Learn More

Get a Free Quote

Our Features

Features of RT Series Lead-Acid Batteries

Capacity range: ≤28Ah (C20, 25℃)

Rated voltage: 6V/12V/24V

Designed floating charge life: 6-8 years

Meet IEC, JIS, BS, VDS and GB/T testing standards

Pass UL, CE, ISO9001, ISO14001 and ISO45001 certifications

Adopt 1# electrolytic lead with a purity of up to 99.994%

Adopt special patented alloy formula, the grid has stronger corrosion resistance

Adopt high temperature and high humidity curing process, the life, capacity and batch consistency are guaranteed

The ear hanging process design has high consistency of plate curing and drying

Adopt hidden safety valve design to effectively avoid safety valve blockage

Capacity range: ≤28Ah (C20, 25℃)

Rated voltage: 6V/12V/24V

Designed floating charge life: 6-8 years

Meet IEC, JIS, BS, VDS and GB/T testing standards

Pass UL, CE, ISO9001, ISO14001 and ISO45001 certifications

Adopt 1# electrolytic lead with a purity of up to 99.994%

Adopt special patented alloy formula, the grid has stronger corrosion resistance

Adopt high temperature and high humidity curing process, the life, capacity and batch consistency are guaranteed

The ear hanging process design has high consistency of plate curing and drying

Adopt hidden safety valve design to effectively avoid safety valve blockage

Our Specifications

Specifications of RT Series Lead-Acid Batteries

Battery model	Rated voltage （V）	Rated capacity C₂₀（Ah）	Battery size				Terminal options	Terminal location
Battery model	Rated voltage （V）	Rated capacity C₂₀（Ah）	Length/mm	Width/mm	Height/mm	Total height/mm	Terminal options	Terminal location
RT613	6	1.3	97	24	52	58	F1	C
RT628	6	2.8	66.5	34	97	103	F1	A
RT632	6	3.2	134	34	60	66	F1	C
RT640S	6	4	194	25	62	62	T1	N
RT640	6	4	70	47	99	105	F1	A
RT645	6	4.5	70	47	99	105	F1	A
RT650	6	5	70	47	99	105	F1/F2	A
RT670	6	7	151	34	94	100	F1/F2	C
RT680	6	8	151	34	94	100	F1/F2	C
RT6100	6	10	150	50	93	99	F1/F2	C
RT6120	6	12	150	50	93	99	F1/F2	C
RT1213	12	1.3	98	43.5	53	59	F1	E
RT1223	12	2.3	177	35	62	68	F1	C
RT1232	12	3.2	134	67	60	66	F1	E
RT1240	12	4	90	70	101	107	F1/F2	C
RT1245	12	4.5	90	70	101	107	F1/F2	C
RT1245S	12	4.5	195	47	71	76	F1/F2	C
RT1245U	12	4.5	151	65	94	100	F1/F2	C
RT1250	12	5	90	70	101	107	F1/F2	C
RT1250B	12	5	151	50	95	101	F1/F2	C

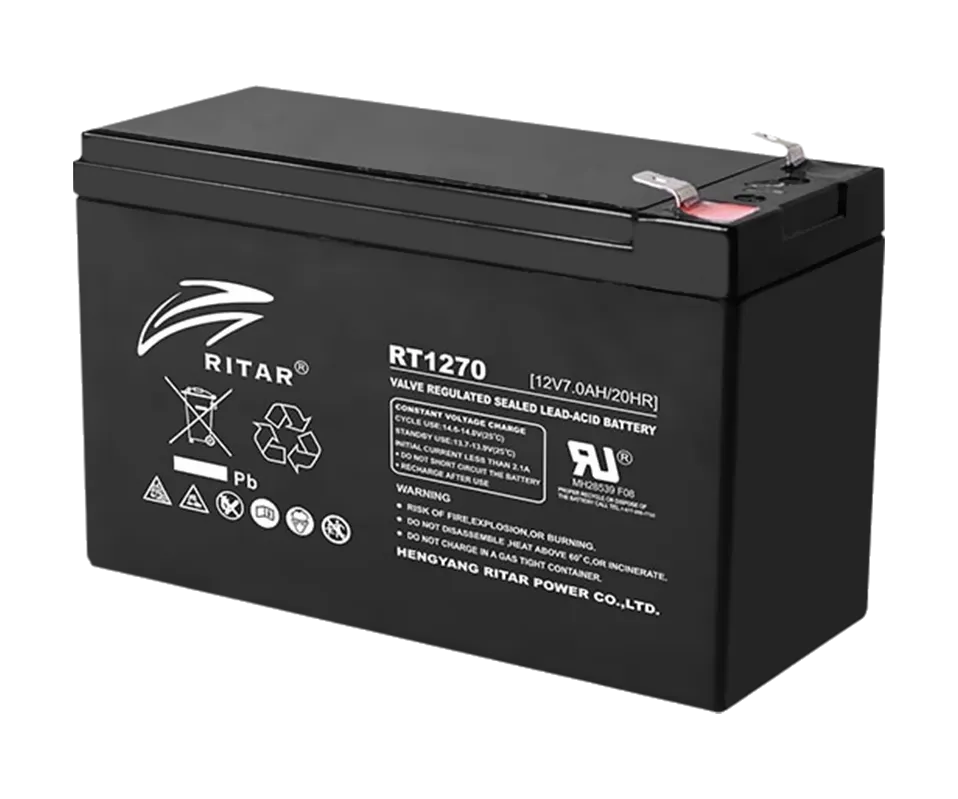

RT1270	12	7	151	65	94	100	F1/F2	F
RT1270A	12	7	151	65	94	100	F1/F2	F
RT1270L	12	7	151	65	94	100	F1/F2	F
RT1270(VDS)	12	7	151	65	94	100	F1/F2	F
RT1280	12	8	151	65	94	100	F1/F2	F
RT1280L	12	8	151	65	94	100	F1/F2	F
RT1290EP	12	9	151	65	94	100	F1/F2	F
RT1290	12	9	151	65	94	100	F1/F2	F
RT12100	12	10	151	98	95	101	F1/F2	F
RT12120	12	12	151	98	95	101	F1/F2	F
RT12120A	12	12	151	98	95	101	F1/F2	F
RT12180	12	18	181	77	167	167	F3(M5) / F13-BP(M5)	D
RT12200	12	20	181	77	167	167	F3(M5) / F13-BP(M5)	D
RT12220	12	22	181	77	167	167	F3(M5) / F13-BP(M5)	D
RT12240	12	24	166	176	125	125	F3(M5) / F13-BP(M5)	D
RT12260	12	26	166	176	125	125	F3(M5) / F13-BP(M5)	D
RT12240S	12	24	165	125	174	174	T28(M5) / F11(M6)	D
RT12280	12	28	166	176	125	125	F3(M5) / F13-BP(M5)/T24(M5)	D

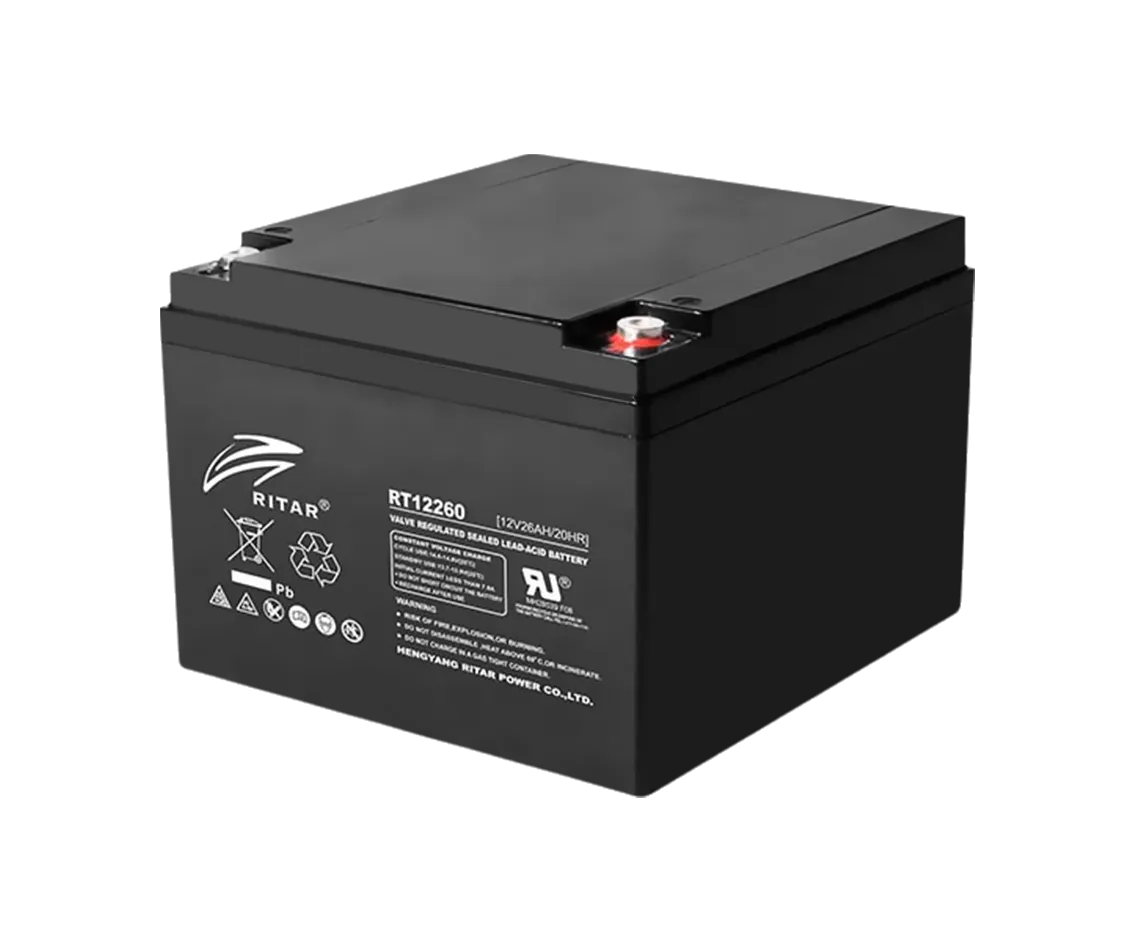

RT12260S	12	26	165	125	174	174	F7(M8) / F11(M6)	D
RT12280S	12	28	165	125	174	174	F7(M8) / F11(M6)	D
