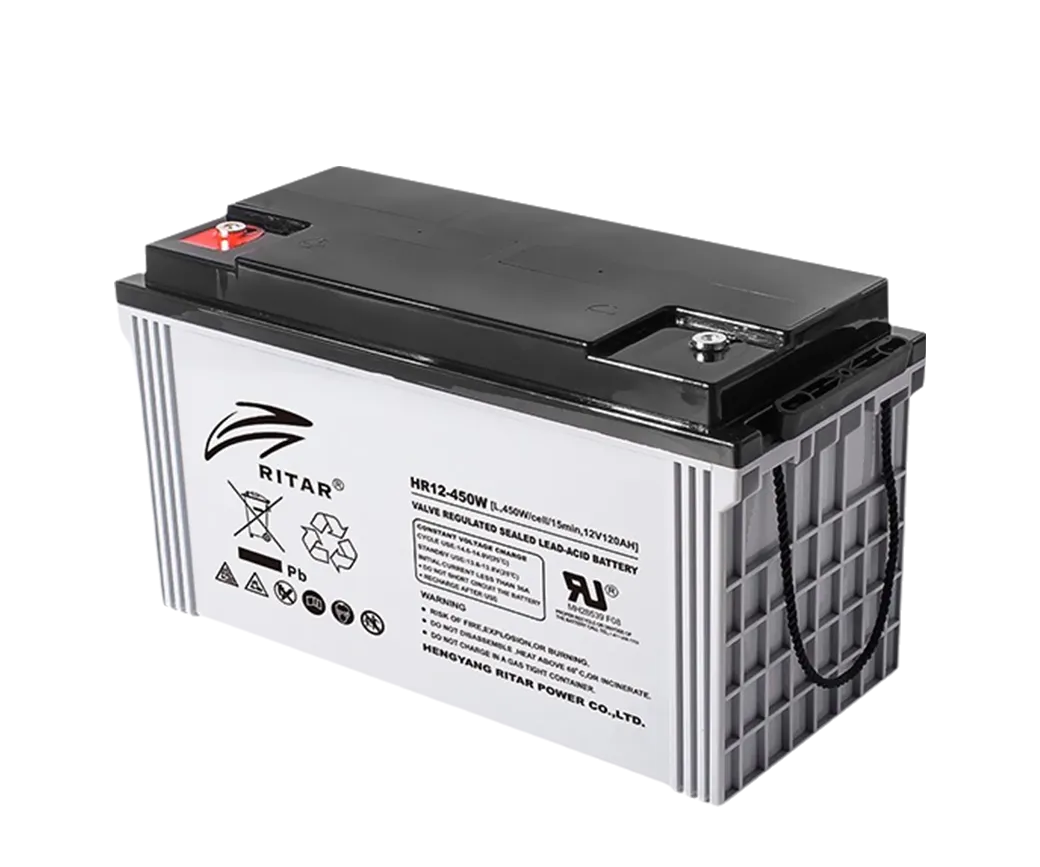

HR Series Lead-Acid Batteries

Name: HR Series Lead-Acid Batteries
Brand: Ritar International Group

High Rate Discharge Batteries

HR (High Rate) series is especially designed for heavy load dischargeapplications with 8 to15 years design life in float service. By using stronggrids and specially designed active material the HR series offers stableperformance during high current discharge. The HR series offers 30%more power output than the standard range. Suitable for UPS/EPS wherehigh current loads are required.

Learn More

Get a Free Quote

Features Description Specifications

Our Features

Features of HR Series Lead-Acid Batteries

Capacity range

16W-850W

Voltage class

6V/12V

Design life (25°C)

8-15 years

Self-discharge rate

3%/month

Reaction efficiency

> 99%

Operating temperature

-20°C -60°C

16W-850W

6V/12V

8-15 years

3%/month

Pass UL, CE, TLC, ISO9001, ISO14001 and ISO45001 certifications

Adopt 1# electrolytic lead with a purity of up to 99.994%

Description

Ritar High Rate Discharge Batteries: Globally Trusted for Safety and Performance.

Engineered with 30% Higher Power Density and a 15-Year Design Life for Critical UPS & Data Center Infrastructure.

Our Specifications

Specifications of HR Series Lead-Acid Batteries

Battery model	Rated voltage （V）	Rated capacity P₁₅（W）	Battery size				Terminal options	Terminal location
Battery model	Rated voltage （V）	Rated capacity P₁₅（W）	Length/mm	Width/mm	Height/mm	Total height/mm	Terminal options	Terminal location
HR6-16W	6	16	70	47	99	105	F2	A
HR6-18W	6	18	70	47	99	105	F2	A
HR6-22W	6	22	70	47	99	105	F2	A
HR6-28W	6	28	151	34	94	100	F2	C
HR6-32W	6	32	151	34	94	100	F2	C
HR6-36W	6	36	151	34	94	100	F2	C
HR12-16W	12	16	90	70	101	107	F2	C
HR12-18W	12	18	90	70	101	107	F2	C
HR12-22BW	12	22	151	50	95	101	F2	F
HR12-22W	12	22	90	70	101	107	F2	C
HR12-32W	12	32	151	65	94	100	F2	F
HR12-36W	12	36	151	65	94	100	F2	F
HR12-48W	12	48	151	98	95	101	F2	F
HR12-50W	12	50	181	77	167	167	F13-BP(M5)	D
HR12-60W	12	60	181	77	167	167	F13-BP(M5)	D
HR12-70W	12	70	181	77	167	167	F13-BP(M5)	D
HR12-80W	12	80	181	77	167	167	F13-BP(M5)	D
HR12-88W	12	88	181	77	167	167	F13-BP(M5)/F18(M5)	D
HR12-96W	12	96	166	176	125	125	F13-BP(M5)	D
HR12-104W	12	104	166	176	125	125	F13-BP(M5)	D
HR12-125W	12	125	195	130	155	168	F11(M6)	C
HR12-150W	12	150	198	166	169	169	F11(M6)	D
HR12-200W	12	200	229	138	211	216	F11(M6)	C
HR12-240W	12	240	350	167	182	182	F11(M6)	C
HR12-280WL	12	280	260	169	211	216	F11(M6)	C
HR12-280W	12	280	260	169	211	216	F11(M6)	C
HR12-300W	12	300	260	169	211	216	F11(M6)	C
HR12-340WL	12	340	306.5	168.5	210	215	F12(M8)	C
HR12-340W	12	340	306.5	168.5	210	215	F12(M8)	C
HR12-380WL	12	380	328	172	215	220	F12(M8)	C
HR12-380W	12	380	328	172	215	220	F12(M8)	C
HR12-380SWL	12	380	306.5	168.5	210	215	F12(M8)	C
HR12-420W	12	420	328	172	215	220	F12(M8)	C
HR12-450WL	12	450	407	177	225	225	F12(M8)	C
HR12-450W	12	450	407	177	225	225	F12(M8)	C
HR12-580WL	12	580	340	173	280	287	F12(M8)	C
HR12-580W	12	580	340	173	280	287	F12(M8)	C
HR12-570WL	12	550	483	170	241	241	F12(M8)	C
HR12-570W	12	550	483	170	241	241	F12(M8)	C
HR12-600WL	12	600	532	207	214	219	F10(M8)	E
HR12-600W	12	600	532	207	214	219	F10(M8)	E
HR12-620WL	12	620	532	207	214	219	F10(M8)	E
HR12-650WL	12	650	522	240	219	224	F10(M8)	E
HR12-650W	12	650	522	240	219	224	F10(M8)	E
HR12-690WL	12	690	522	240	219	224	F10(M8)	E
HR12-690W	12	690	522	240	219	224	F10(M8)	E
HR12-700WL	12	700	522	240	219	224	F10(M8)	E
HR12-720WL	12	720	522	240	219	224	F10(M8)	E
HR12-750W	12	750	522	240	219	224	F10(M8)	E
HR12-780W	12	780	522	240	219	224	F10(M8)	E
HR12-800WL	12	800	522	240	219	224	F10(M8)	E
HR12-820W	12	820	522	240	219	224	F10(M8)	E
HR12-850WL	12	850	521	268	220	225	F10(M8)	E
HR12-1000W	12	1000	521	268	220	225	F10(M8)	E
HR2-500W	2	500	171	111	328	340	F10(M8)	G
HR2-650W	2	650	171	111	328	340	F10(M8)	G
HR2-750W	2	750	170	150	330	342	F10(M8)	G
HR2-1000W	2	1000	170	150	330	342	F10(M8)	G
HR2-1250W	2	1250	211	172	330	342	F10(M8)	H
HR2-1500W	2	1500	241	172	330	342	F10(M8)	H
HR2-2000W	2	2000	301	172	330	342	F10(M8)	H
HR2-2500W	2	2500	410	172	330	342	F10(M8)	J
HR2-3000W	2	3000	473	172	330	342	F10(M8)	J
HR2-3200W	2	3200	473	172	330	342	F10(M8)	J
