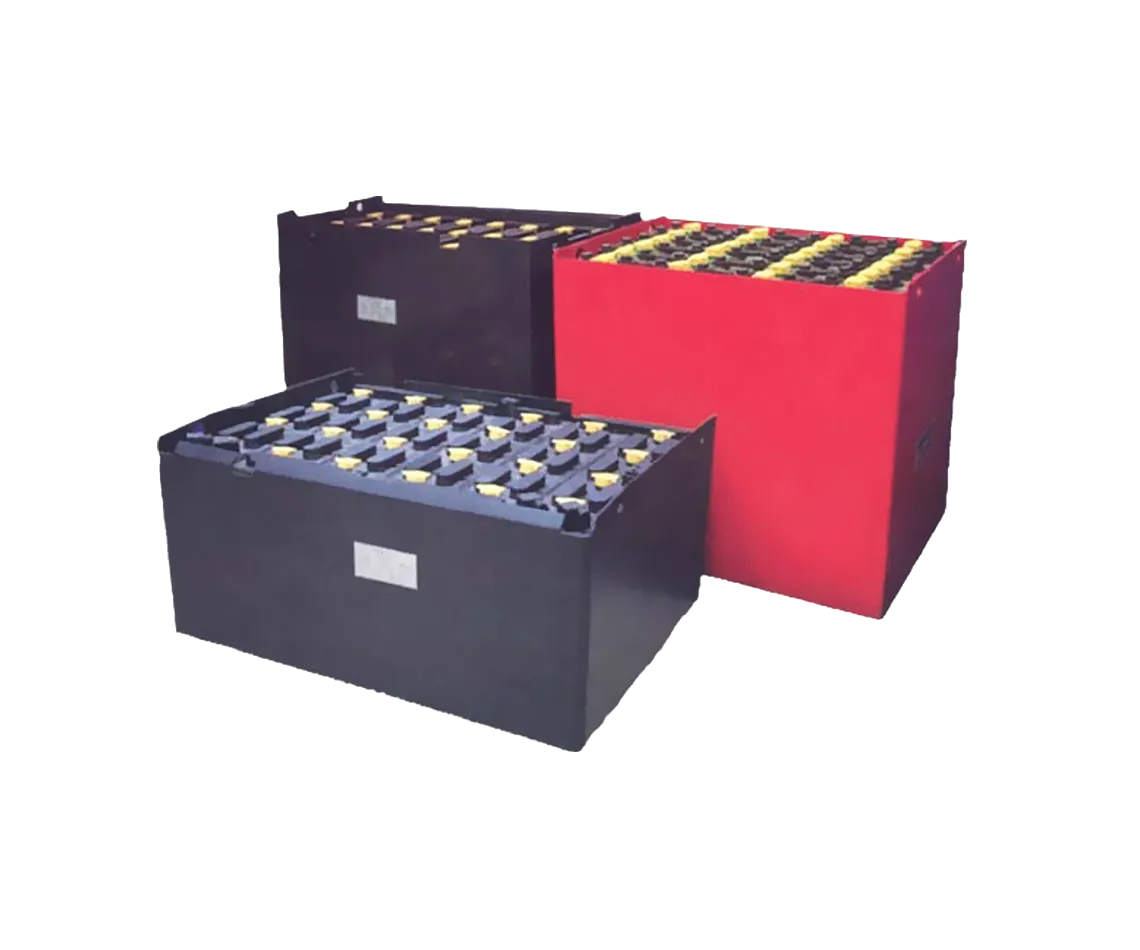

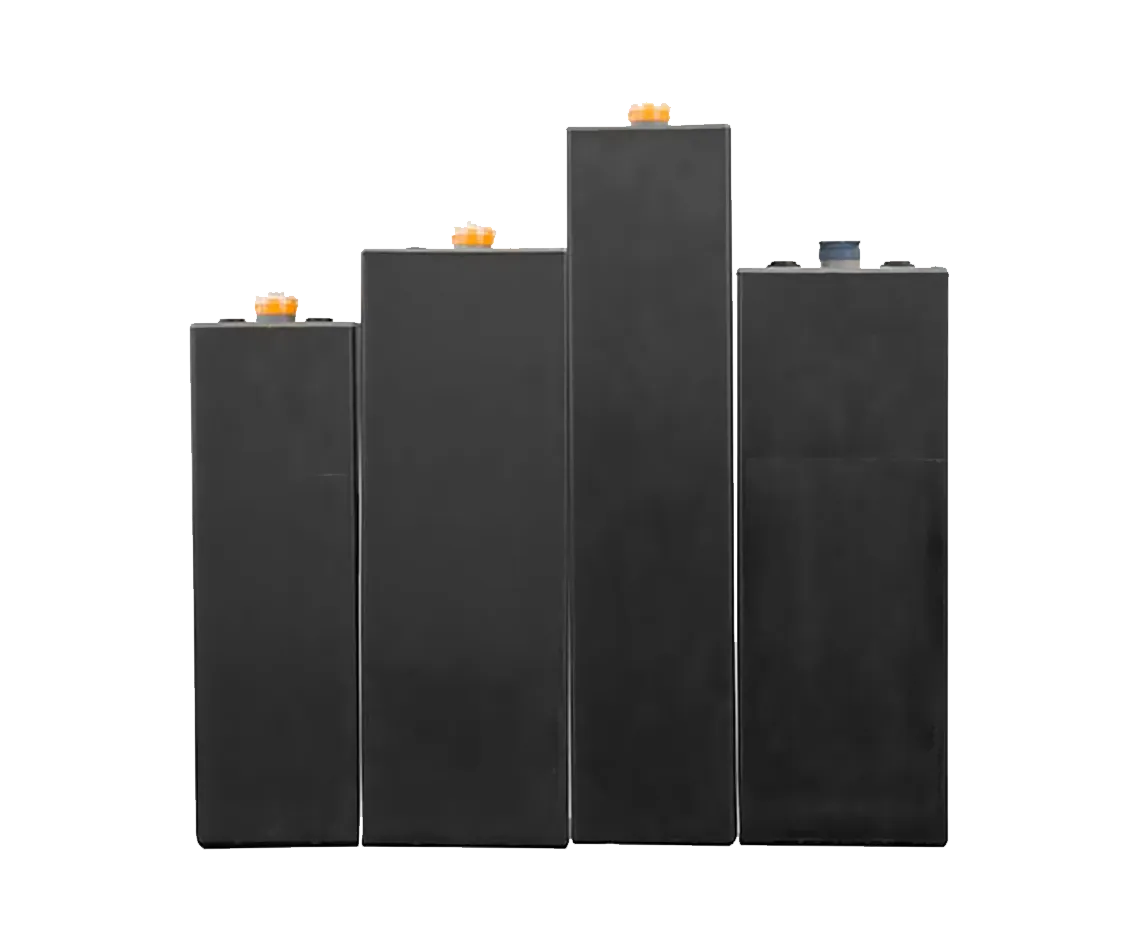

BS Series Lead-Acid Batteries

Capacity range: 84Ah-1260Ah (C5, 25℃)
Rated voltage: 2V
Meet DIN/EN 60254-2 &IEC 254-2 and other testing standards
Pass ISO9001, ISO14001 and ISO45001 certifications
Use 1# electrolytic lead with a purity of up to 99.994%

Learn More

Get a Free Quote

Our Features

Features of BS Series Lead-Acid Batteries

Capacity range: 84Ah-1260Ah (C5, 25℃)

Rated voltage: 2V

Meet DIN/EN 60254-2 &IEC 254-2 and other testing standards

Pass ISO9001, ISO14001 and ISO45001 certifications

Use 1# electrolytic lead with a purity of up to 99.994%

The positive electrode uses a tubular plate die-cast under a pressure of 10MPa, with a dense grid surface and stronger corrosion resistance

The flip-type independent valve design can clearly understand the liquid level and ensure convenient battery maintenance

The fully insulated terminal design is safe and reliable

Longer maintenance intervals and lower maintenance costs

Capacity range: 84Ah-1260Ah (C5, 25℃)

Rated voltage: 2V

Meet DIN/EN 60254-2 &IEC 254-2 and other testing standards

Pass ISO9001, ISO14001 and ISO45001 certifications

Use 1# electrolytic lead with a purity of up to 99.994%

The positive electrode uses a tubular plate die-cast under a pressure of 10MPa, with a dense grid surface and stronger corrosion resistance

The flip-type independent valve design can clearly understand the liquid level and ensure convenient battery maintenance

The fully insulated terminal design is safe and reliable

Longer maintenance intervals and lower maintenance costs

Our Specifications

Specifications of BS Series Lead-Acid Batteries

Battery model	Rated voltage （V）	Rated capacity C₅（Ah）	Battery size				Terminal options
Battery model	Rated voltage （V）	Rated capacity C₅（Ah）	Length/mm	Width/mm	Height/mm	Total height/mm	Terminal options
2PZB84	2	84	45	158	343	373	D2&D4
3PZB126	2	126	61	158	343	373	D2&D4
4PZB168	2	168	77	158	343	373	D2&D4
5PZB210	2	210	93	158	343	373	D2&D4
6PZB252	2	252	109	158	343	373	D2&D4
7PZB294	2	294	125	158	343	373	D2&D4
8PZB336	2	336	141	158	343	373	D2&D4
9PZB378	2	378	157	158	343	373	D2&D4
10PZB420	2	420	173	158	343	373	D2&D4
11PZB462	2	462	189	158	343	373	D2&D4
12PZB504	2	504	205	158	343	373	D2&D4
2PZB110	2	110	45	158	398	428	D2&D4
3PZB165	2	165	61	158	398	428	D2&D4
4PZB220	2	220	77	158	398	428	D2&D4
5PZB275	2	275	93	158	398	428	D2&D4
6PZB330	2	330	109	158	398	428	D2&D4
7PZB385	2	385	125	158	398	428	D2&D4
8PZB440	2	440	141	158	398	428	D2&D4
9PZB495	2	495	157	158	398	428	D2&D4
10PZB550	2	550	173	158	398	428	D2&D4
11PZB605	2	605	189	158	398	428	D2&D4
12PZB660	2	660	205	158	398	428	D2&D4
2PZB130	2	130	45	158	454	484	D2&D4
3PZB195	2	195	61	158	454	484	D2&D4
4PZB260	2	260	77	158	454	484	D2&D4
5PZB325	2	325	93	158	454	484	D2&D4
6PZB390	2	390	109	158	454	484	D2&D4
7PZB455	2	455	125	158	454	484	D2&D4
8PZB520	2	520	141	158	454	484	D2&D4
9PZB585	2	585	157	158	454	484	D2&D4
10PZB650	2	650	173	158	454	484	D2&D4
11PZB715	2	715	189	158	454	484	D2&D4
12PZB780	2	780	205	158	454	484	D2&D4
2PZB140	2	140	45	158	492	522	D2&D4
3PZB210	2	210	61	158	492	522	D2&D4
4PZB280	2	280	77	158	492	522	D2&D4
5PZB350	2	350	93	158	492	522	D2&D4
6PZB420	2	420	109	158	492	522	D2&D4
7PZB490	2	490	125	158	492	522	D2&D4
8PZB560	2	560	141	158	492	522	D2&D4
9PZB630	2	630	157	158	492	522	D2&D4
10PZB700	2	700	173	158	492	522	D2&D4
11PZB770	2	770	189	158	492	522	D2&D4
12PZB840	2	840	205	158	492	522	D2&D4
2PZB150	2	150	45	158	511	541	D2&D4
3PZB225	2	225	61	158	511	541	D2&D4
4PZB300	2	300	77	158	511	541	D2&D4
5PZB375	2	375	93*	158	511	541	D2&D4
6PZB450	2	450	109	158	511	541	D2&D4
7PZB525	2	525	125	158	511	541	D2&D4
8PZB600	2	600	141	158	511	541	D2&D4
9PZB675	2	675	157	158	511	541	D2&D4
10PZB750	2	750	173	158	511	541	D2&D4
11PZB825	2	825	189	158	511	541	D2&D4
12PZB900	2	900	205	158	511	541	D2&D4
2PZB160	2	160	45	158	546	576	D2&D4
3PZB240	2	240	61	158	546	576	D2&D4
4PZB320	2	320	77	158	546	576	D2&D4
5PZB400	2	400	93	158	546	576	D2&D4
6PZB480	2	480	109	158	546	576	D2&D4
7PZB560	2	560	125	158	546	576	D2&D4
8PZB640	2	640	141	158	546	576	D2&D4
9PZB720	2	720	157	158	546	576	D2&D4
10PZB800	2	800	173	158	546	576	D2&D4
2PZB170	2	170	45	158	567	597	D2&D4
3PZB255	2	255	61	158	567	597	D2&D4
4PZB340	2	340	77	158	567	597	D2&D4
5PZB425	2	425	93	158	567	597	D2&D4
6PZB510	2	510	109	158	567	597	D2&D4
7PZB595	2	595	125	158	567	597	D2&D4
8PZB680	2	680	141	158	567	597	D2&D4
9PZB765	2	765	157	158	567	597	D2&D4
10PZB850	2	850	173	158	567	597	D2&D4
11PZB935	2	935	189	158	567	597	D2&D4
12PZB1020	2	1020	205	158	567	597	D2&D4
2PZB180	2	180	45	158	612	642	D2&D4
3PZB270	2	270	61	158	612	642	D2&D4
4PZB360	2	360	77	158	612	642	D2&D4
5PZB450	2	450	93	158	612	642	D2&D4
6PZB540	2	540	109	158	612	642	D2&D4
7PZB630	2	630	125	158	612	642	D2&D4
8PZB720	2	720	141	158	612	642	D2&D4
9PZB810	2	810	157	158	612	642	D2&D4
10PZB900	2	900	173	158	612	642	D2&D4
2PZB200	2	200	45	158	683	713	D2&D4
3PZB300	2	300	61	158	683	713	D2&D4
4PZB400	2	400	77	158	683	713	D2&D4
5PZB500	2	500	93	158	683	713	D2&D4
6PZB600	2	600	109	158	683	713	D2&D4
7PZB700	2	700	125	158	683	713	D2&D4
8PZB800	2	800	141	158	683	713	D2&D4
9PZB900	2	900	157	158	683	713	D2&D4
10PZB1000	2	1000	173	158	683	713	D2&D4
11PZB1100	2	1100	189	158	683	713	D2&D4
12PZB1200	2	1200	205	158	683	713	D2&D4
2PZB210	2	210	45	158	683	713	D2&D4
3PZB315	2	315	61	158	683	713	D2&D4
4PZB420	2	420	77	158	683	713	D2&D4
5PZB525	2	525	93	158	683	713	D2&D4
6PZB630	2	630	109	158	683	713	D2&D4
7PZB735	2	735	125	158	683	713	D2&D4
8PZB840	2	840	141	158	683	713	D2&D4
9PZB945	2	945	157	158	683	713	D2&D4
10PZB1050	2	1050	173	158	683	713	D2&D4
11PZB1155	2	1155	189	158	683	713	D2&D4
12PZB1260	2	1260	205	158	683	713	D2&D4
