100kWh-M Lithium Battery
100kWh-M Lithium Battery

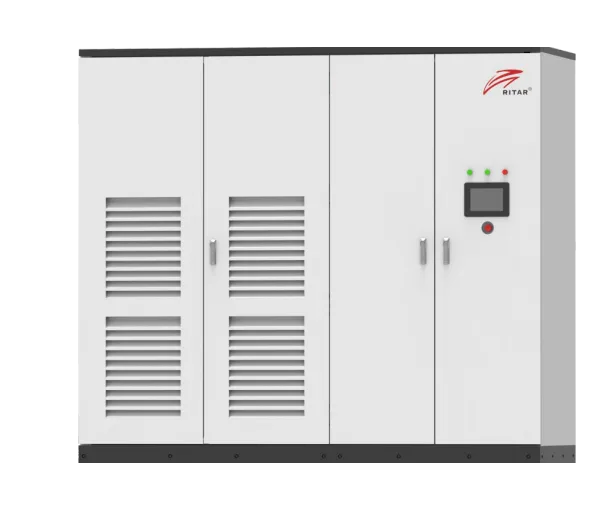

EnerCube-50kW/100kWh-M Battery Storage Cabinet

Learn More
Get a Free Quote
Our Features
Features of EnerCube-50kW/100kWh-M Lithium Battery
Cabinet design for easy installation & transportation

Cabinet design for easy installation & transportation

Support parallel connection of multiple systems on the DC & AC side

Support parallel connection of multiple systems on the DC & AC side

Efficient equalization BMS: single series design + efficient equalization technology

Efficient equalization BMS: single series design + efficient equalization technology

Air cooling solution, system temperature deviation ≤ 3°C

Air cooling solution, system temperature deviation ≤ 3°C

IP55 class protection

  • IP55 class protection

  • Cycle life > 8000


Cabinet partition security isolation + pack-level security warning and intelligent fire prevention systems with explosion proof strategy to ensure system safety and control

Cabinet partition security isolation + pack-level security warning and intelligent fire prevention systems with explosion proof strategy to ensure system safety and control

Cabinet design for easy installation & transportation
Support parallel connection of multiple systems on the DC & AC side
Efficient equalization BMS: single series design + efficient equalization technology
Air cooling solution, system temperature deviation ≤ 3°C
IP55 class protectionCycle life > 8000
Cabinet partition security isolation + pack-level security warning and intelligent fire prevention systems with explosion proof strategy to ensure system safety and control
01
/
05
Our Specifications

Specification of EnerCube-50kW/100kWh-M Lithium Battery

ModelEnerCube
50kW/100kWh-M		EnerCube
100kW/200kWh-M		EnerCube
100kW/215kWh-M
DC battery parameters
Types of batteriesLFP280AhLFP280AhLFP280Ah
Battery pack configuration14.336kWh/1P16S14.336kWh/1P16S14.336kWh/1P16S
Battery System Configuration100kWh/1P112S100kWh/1P224S100kWh/1P240S
Battery voltage range336~403V627~806V672~864V
Number of temperature measurements568490
AC Parameters(On-grid)
AC ratedpower50kW100kW100kW
AC maximum power55kW110kW110kW
AC curent distortion rate<3%<3%<3%
DC component
<0.5%Ipn
Grid voltage range380 / 400V
Power factor-1~ +1
Rated grid frequency50Hz / 60Hz
AC Parameters(Off-grid)
AC current distortion rate<1% Linear <5% nonlinear
Grid voltage range380/400V
Rated grid frequency50Hz/60Hz
Overload capacity110% long-term
System parameters
Maximum system effciency≥91%
Charge / discharge ratio≤0.5C
The depth of discharge100%DOD
Cycles>8000
CommunicationCAN / RS485 / LAN
IP classIP55
Type of coolingAir cooling
Operating temperature-35°C~+55°C
Relative humidity5-95%RH, No condensation
Noise<70dB
Altitude<2000m
Size(L*H*D)1200*2280*1100mm + 1500*2280*1100mm
Fire extinguishing systemAerosol+Pack-level immersion+Active warning
Weight2500kg(DC BESS) +1316kg(PCS)
