Select high quality LFP cell dedicated for energy storage, cycle life of more than 8000 times.
IP55 Protection rating to meet the requirements of outdoor applications.
Cabinet partition security isolation + pack-level security warning and fire prevention to ensure the system safety and control.
The air conditioner air-cools is adopted to maintain each cell of the battery Pack at the appropriate temperature to ensure battery performance and cycle life.
Efficient equalization BMS: single series design + efficient equalization technology, the system parallel capacity loss is 0.
Standardized design for lower O&M costs, standardized production for fast delivery, and lower overall lifecycle costs.
Infinite parallel connection can realize elastic expansion and fully modular maintenance of the energy storage power station. Supporting multi-scene applications from kWh to MWh level.

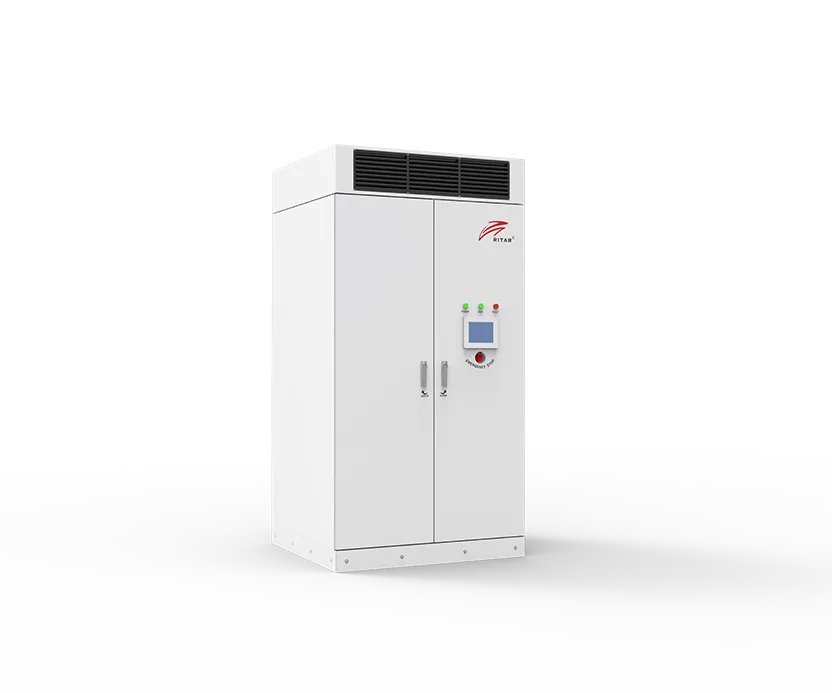

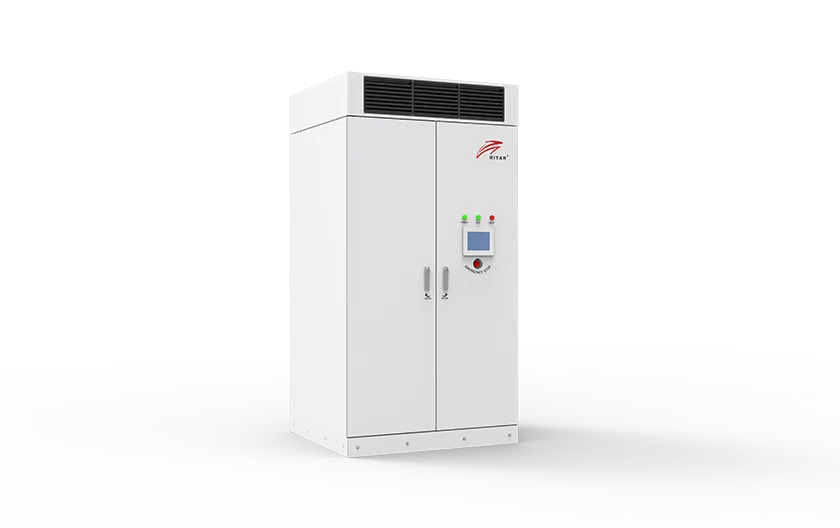

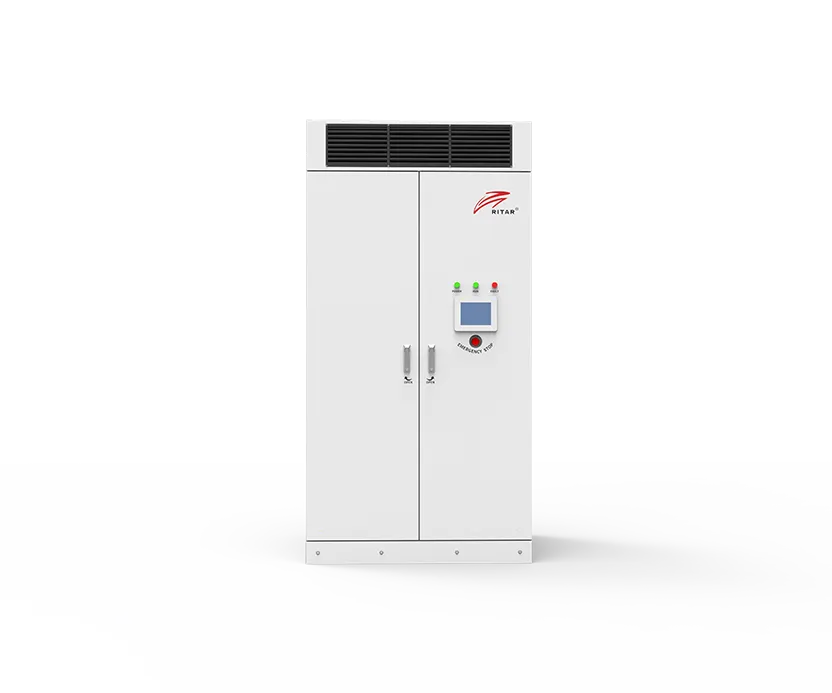

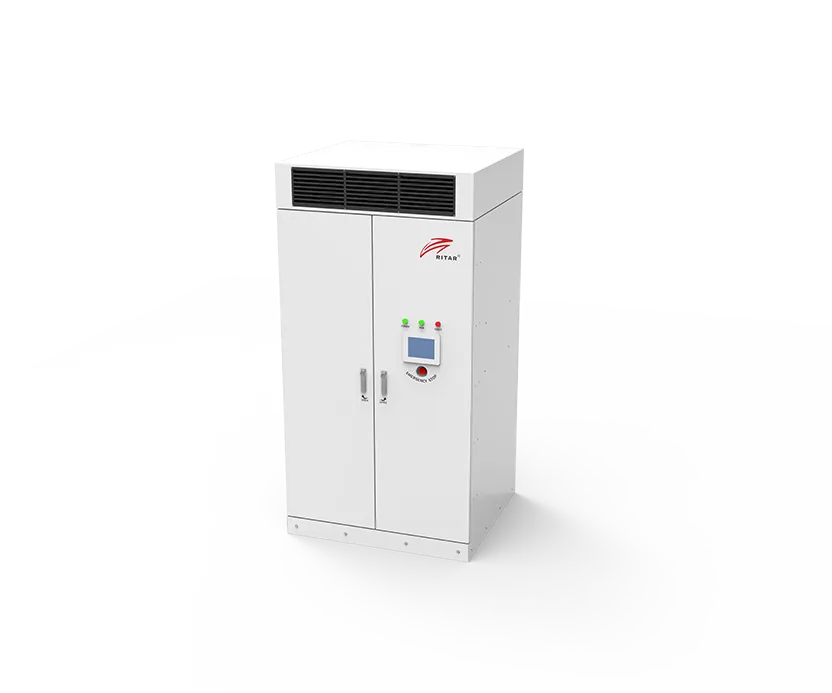

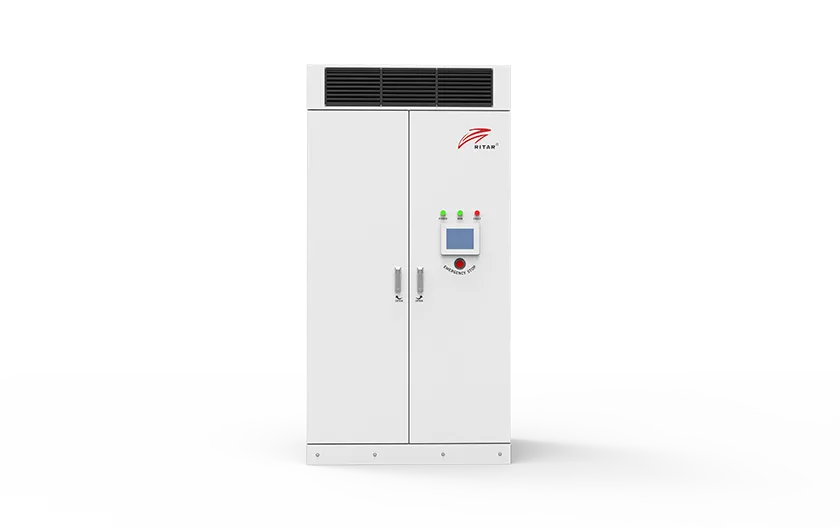

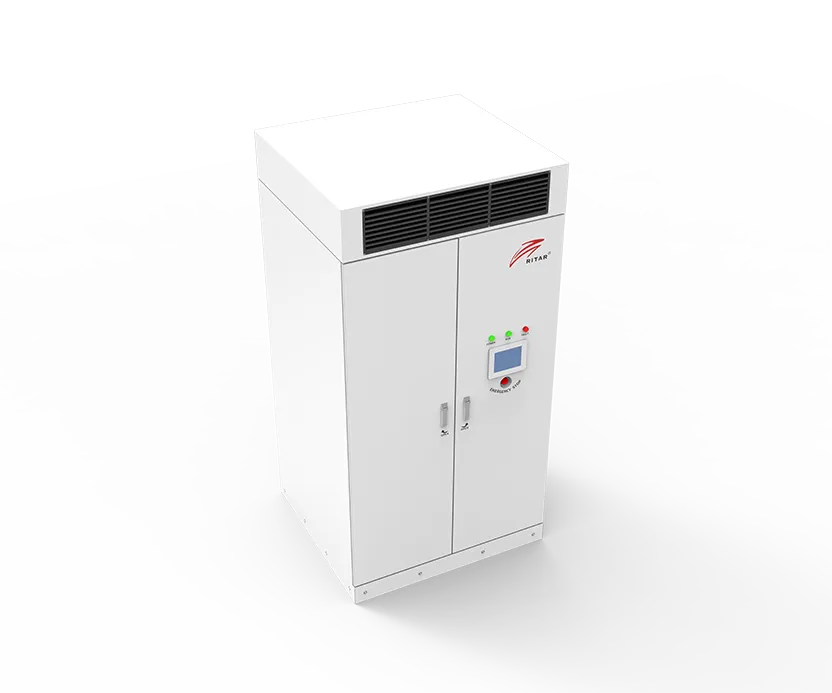

| Model | EnerCube-50KW200KWh |
| DC battery parameters | |
| Types of batteries | LFP 280Ah |
| Battery Pack Configuration | 14.336KWh/1P16S |
| Battery System Configuration | 200KWh/1P240S |
| Battery voltage range | 627~806V |
| Number of temperature measurements | 84 |
| AC Parameters | |
| AC rated power | 50KW |
| AC maximum power | 55KW |
| AC current distortion rate | ≤ 3% |
| DC component | ≤ 0.5%Ipn |
| Grid voltage range | 380/400V |
| Power factor | -1~+1 |
| Rated grid frequency | 50Hz/60Hz |
| System parameters | |
| Maximum system efficiency | ≥91% |
| Charge/discharge ratio | ≤0.5C |
| The depth of discharge | 100%DOD |
| Cycles | > 8000 |
| Communication interface | CAN/RS485/LAN |
| Protection grade | IP55 |
| Type of cooling | Air conditioning air cooling |
| Operating temperature | -35℃~+55℃ |
| Relative humidity | 5~95%RH, No condensation |
| Noise | ≤ 70dB |
| Altitude | ≤2000m |
| Size (LHD) | 120023501100mm |
| Fire fighting system | Aerosol + Pack-level immersion + Active warning |
| Weight | 2600kg |
