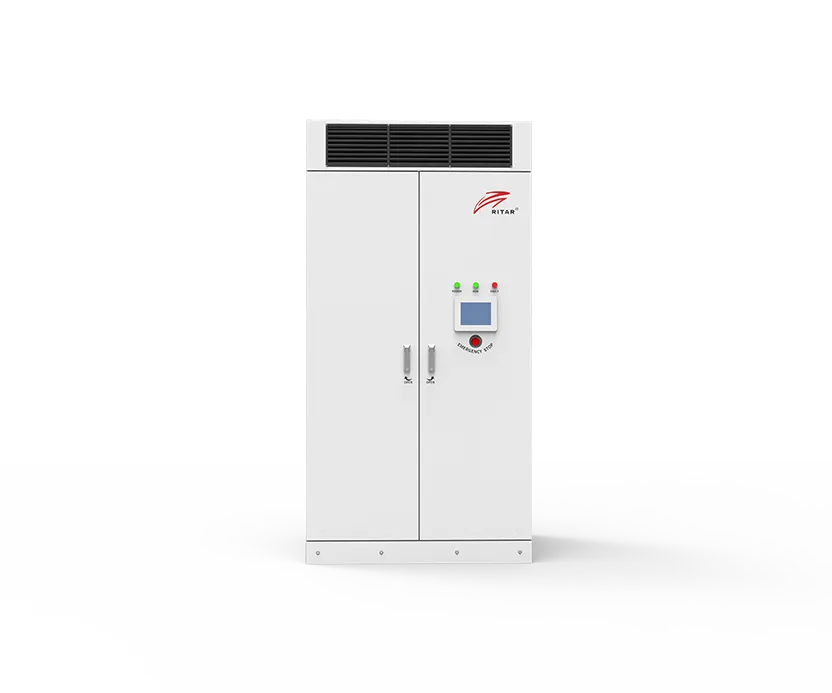

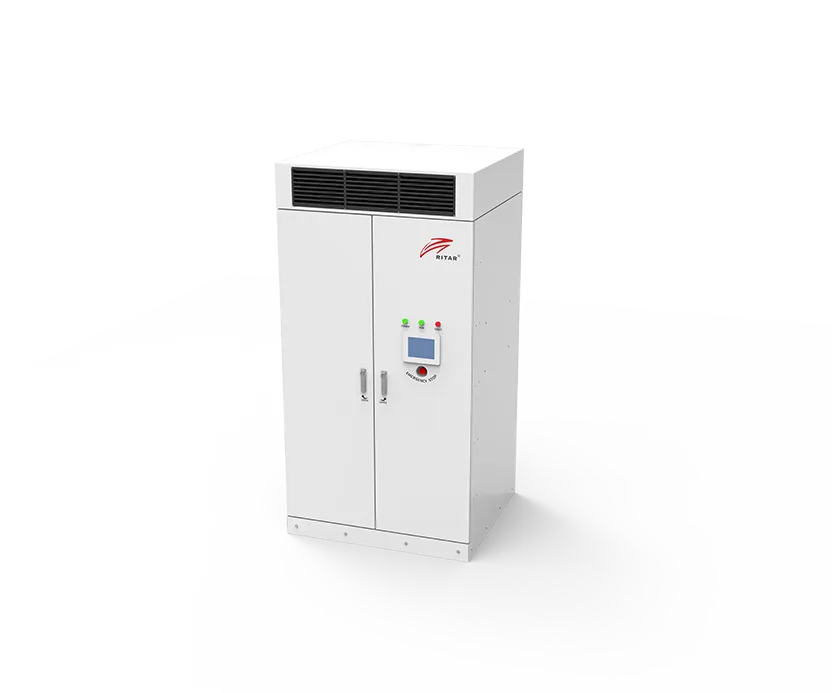

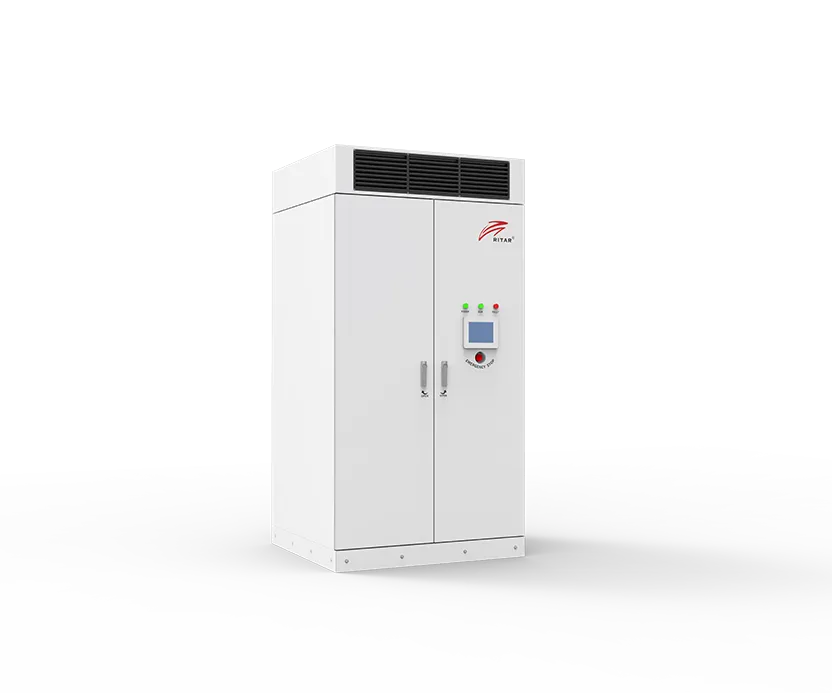

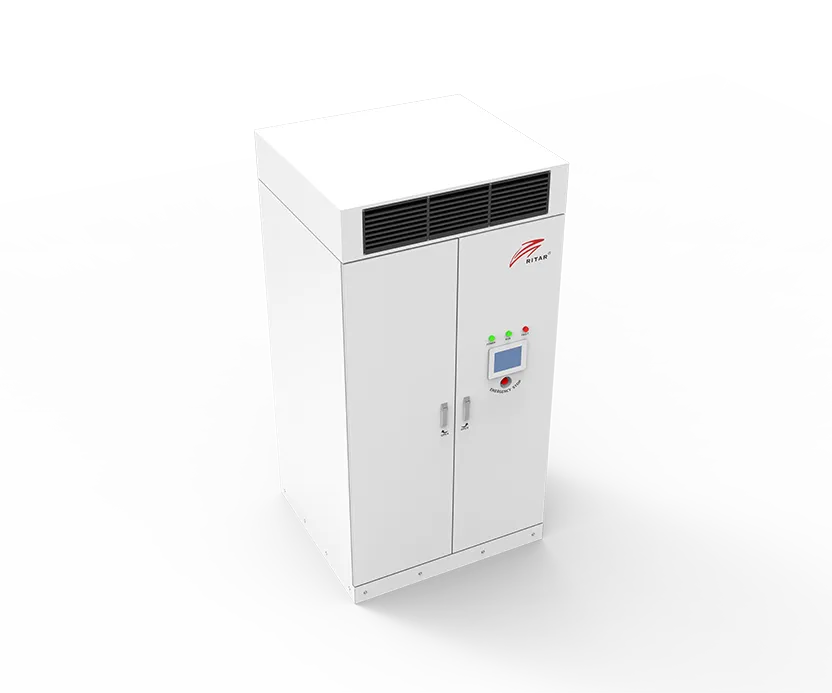

This product is a representative of highly modularized and standardized Ritar products, designed in accordance with the 3S (Safe/Strong/Smart) energy storage concept and automotive specification-level quality requirements. It integrates functions including peak shaving and valley filling, combined new energy power generation, dynamic capacity expansion, demand management, distributed power generation, and emergency power backup, and also supports the demand for fast charging of electric vehicles.
Select high-quality LFP cells dedicated for energy storage, with a cycle life of more than 8000 times.
IP55 protection rating to meet the requirements of outdoor applications.
Cabinet partition safety isolation + pack-level safety warning and fire prevention to ensure system safety and control.
Air conditioner air cooling is adopted to maintain each cell of the battery pack at an appropriate temperature, ensuring battery performance and cycle life.
Efficient equalization BMS: single series design + efficient equalization technology, with 0 system parallel capacity loss.
Standardized design for lower O&M costs, standardized production for fast delivery, and lower overall lifecycle costs.
Infinite parallel connection enables elastic expansion and fully modular maintenance of the energy storage power station, supporting multi-scenario applications from kWh to MWh level.
| Model | EnerCube-500KW1000KWh-M | |
| Battery parameter | ||
| Cell type | LFP 280Ah | |
| Battery Pack configuration | 14.336KWh/1P16S | |
| Battery system configuration | (200KWh/1P224S) *5 | |
| Battery voltage range | 627~806V | |
| Temperature measurement quantity | 84*5 | |
| Charging/discharge ratio | ≤0.5C | |
| The depth of discharge | 90%DOD | |
| Cycles | >8000 | |
| Maximum battery system efficiency | ≥96% | |
| AC parameter | ||
| Rated AC power | 500KW | |
| Maximum AC power | 550KW | |
| Rated voltage | 400V (-20%~+15%) | |
| Rated current | 722A | |
| Rated frequency | 50/60Hz | |
| DC current component | <0.5%Ipn | |
| AC current distortion rate | <3% | |
| Power factor | -1~+1 | |
| Overload capacity | 110% long term | |
| Alternating current system | Three-phase four-wire + ground wire (3W+N+PE) | |
| Isolation transformer | Yes | |
| Common parameter | Battery outdoor cabinet | PCS outdoor cabinet |
| Protection class | IP55 | IP54 |
| Fire protection system | Perfluorohexone + aerosol | -- |
| Operating temperature range | -30℃ to 55℃ | -30℃ to 55℃ |
| Cooling mode | Air conditioning cooling | Intelligent air cooling |
| Size WDH (mm) | (1200 * 1100 * 2280) *5 | 220022002490 |
| Weight (kg) | 2400*5 | 4500 |
| Communication mode | CAN, RS485 | RS485, TCP/IP |
| Display | Touch LCD display | Touch LCD display |
| Relative humidity | 5~95%RH, no condensation | 5~95%RH, no condensation |
| Highest altitude | 4500m (> 3000 Derating required) | 4500m (> 3000 Derating required) |
| Noise | <70dB | < 70dB |
