Using high quality LFP special energy storage cell, cycle life of more than 8000 times.
IP55 protection grade to meet the requirements of outdoor applications.
Cabinet partition security isolation + pack-level security warning and fire prevention to ensure the system safety and control.
The precise temperature control of industrial air conditioning ensures that each cell always works in the appropriate temperature range, ensuring battery performance and cycle life.
Efficient equalization BMS: single series design + efficient equalization technology, the system parallel capacity loss of the system is 0.
Standardized design for lower O&M costs, standardized production for fast delivery, and lower overall life cycle costs.
Infinite parallel connection can realize elastic expansion and fully modular maintenance of the energy storage power station. Supporting multi-scene applications from kWh to MWh level.

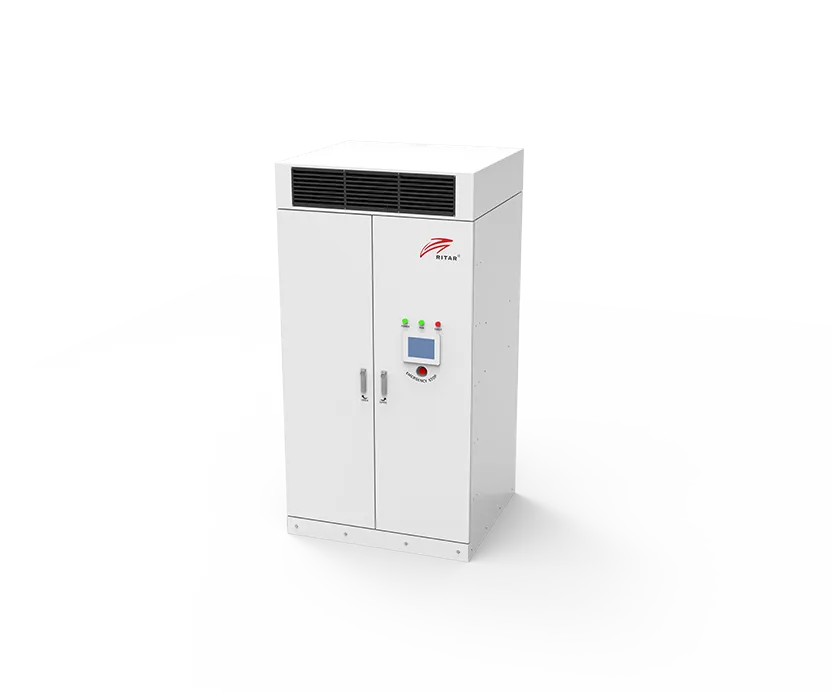

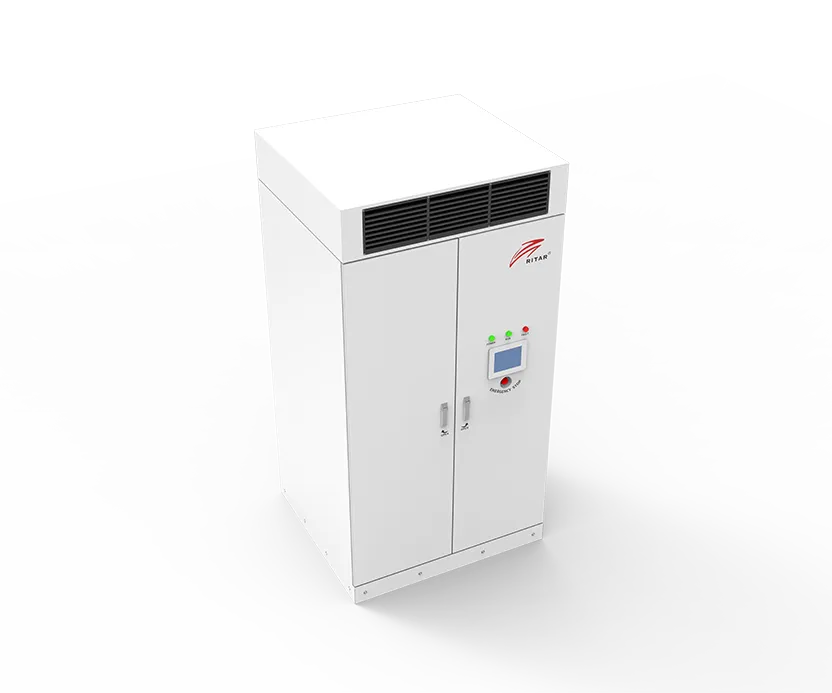

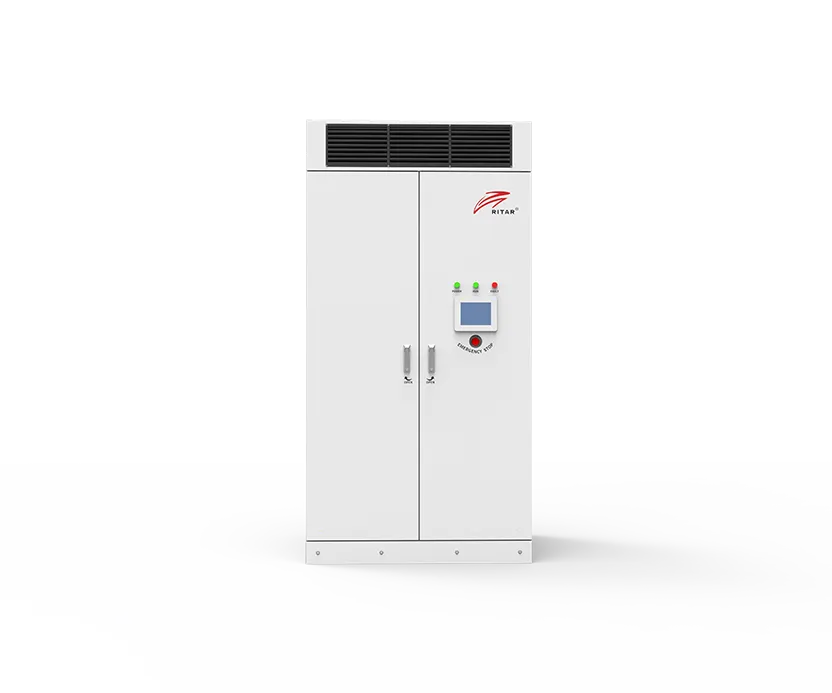

| Model | EnerCube-100KW200KWh |
| DC battery parameters | |
| Types of batteries | LFP280Ah |
| Battery Pack Configuration | 14.336KWh/1P16S |
| Battery System Configuration | 200KWh/1P224S |
| Battery voltage range | 627~806V |
| Number of temperature measurements | 84 |
| AC Parameters | |
| AC rated power | 100KW |
| AC maximum power | 110KW |
| AC current distortion rate | < 3% |
| DC component | < 0.5%Ipn |
| Grid voltage range | 380/400(-15%~+15%)Vac |
| Power factor | -1~+1 |
| Rated grid frequency | 50Hz/60Hz |
| System parameters | |
| Maximum system efficiency | ≥ 91% |
| Charge/discharge ratio | ≤ 0.5C |
| The depth of discharge | 100%DOD |
| Cycles | > 8000 |
| Communication interface | CAN/RS485/LAN |
| Protection grade | IP55 |
| Type of cooling | Air conditioning air cooling |
| Operating temperature | -35℃~+55℃ |
| Relative humidity | 5~95%RH, No condensation |
| Noise | < 70dB |
| Altitude | < 2000m |
| Size | 1200(L)*2350(H)*1100(D)mm |
| Fire protection system | Aerosol+Pack-level immersion+Active warning |
| Weight | 2600kg |
