Safety
• Nano-fumed silica solid electrolyte, 100% solid
• Material safety: positive and negative electrodes, separators, electrolytes and other materials are fireproof and explosion-proof
• EMS intelligent control management: ensures that the battery temperature rise does not exceed 40°C and does not cause thermal runaway
Environmentally friendly recycling
• During the manufacturing process, there is no discharge of waste water, waste gas, waste residue, etc.
• 100% recycling of waste batteries
Safety
• Nano-fumed silica solid electrolyte, 100% solid
• Material safety: positive and negative electrodes, separators, electrolytes and other materials are fireproof and explosion-proof
• EMS intelligent control management: ensures that the battery temperature rise does not exceed 40°C and does not cause thermal runaway
Environmentally friendly recycling
• During the manufacturing process, there is no discharge of waste water, waste gas, waste residue, etc.
• 100% recycling of waste batteries
High efficiency
• Low cost, long life, design life of 25 years
• Charge and discharge efficiency over 94%
Wide application scenarios
• Wind and solar power generation and energy storage, power grid peak and frequency regulation, virtual power plants, peak-valley electricity price differences, power security
• Energy security for rural revitalization, charging piles + energy storage, UPS + energy storage, thermal power plants + energy storage, pumped storage + solid-state energy storage, etc.
Energy storage system parameters | |
Energy storage installed capacity | 1MWh |
Energy storage installed power | 250kW |
Grid voltage | 400V±10% |
Grid connection frequency | 50Hz/-6%+3% |
Wiring | Three-phase four-wire system |
Operation Mode | On-grid/off-grid |
System efficiency | ≥80% |

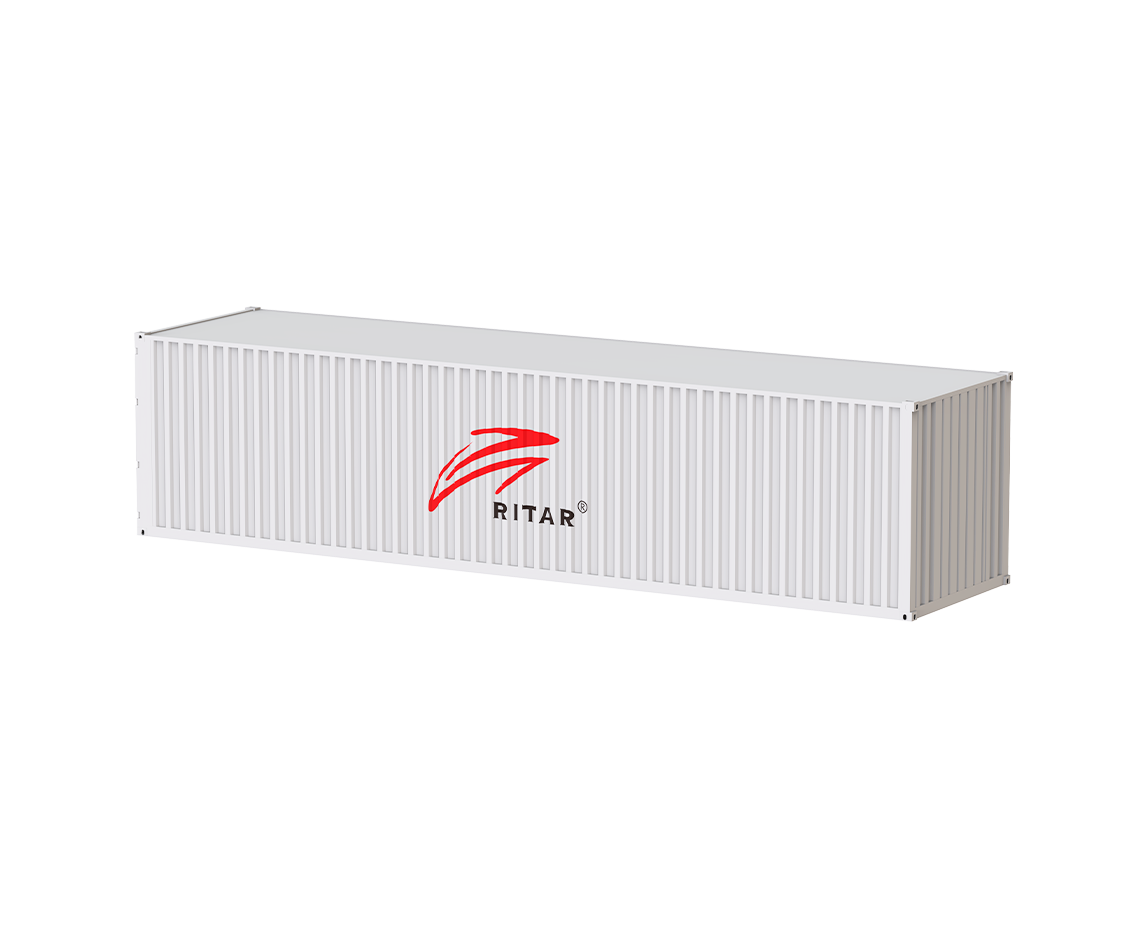

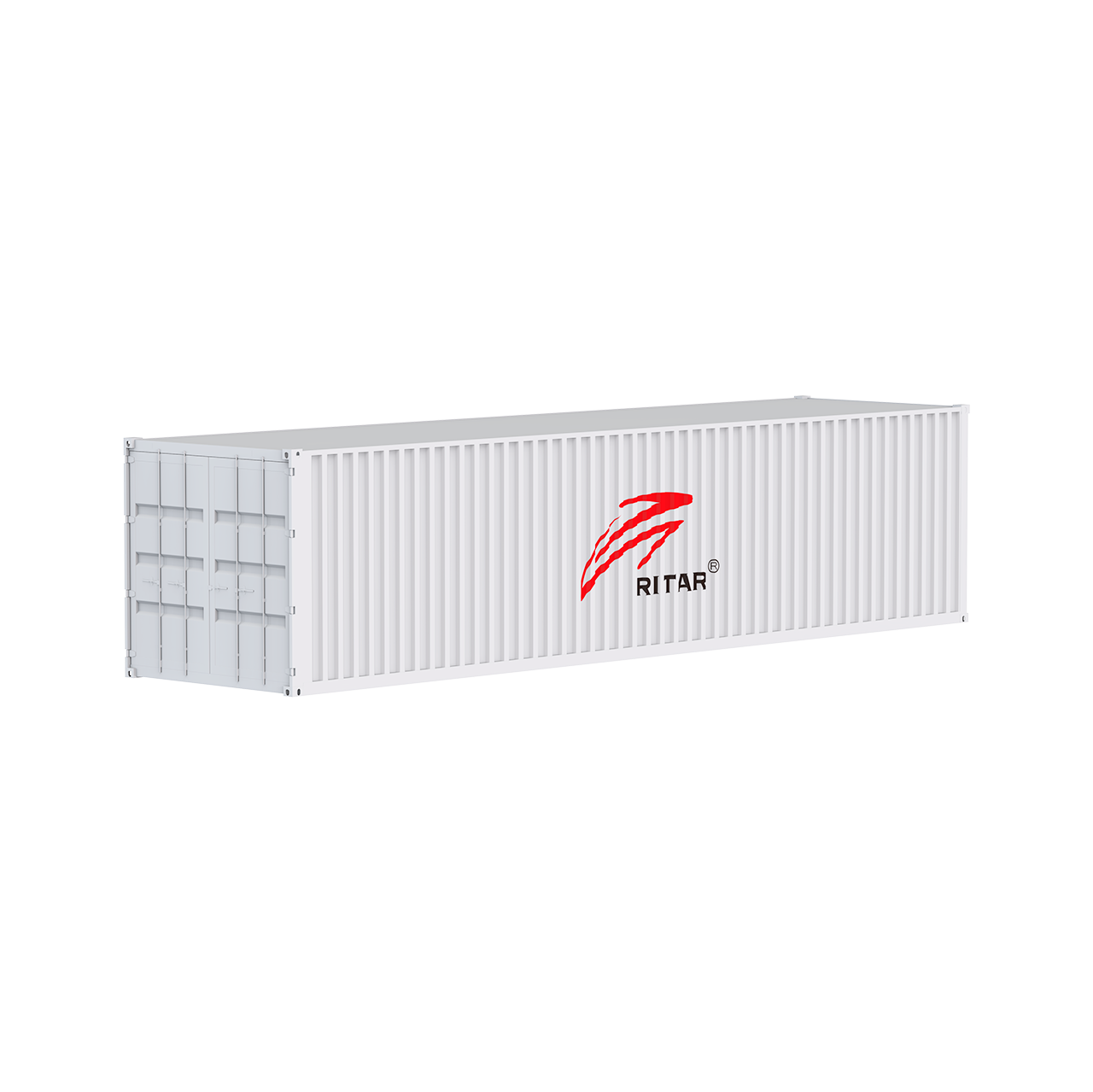

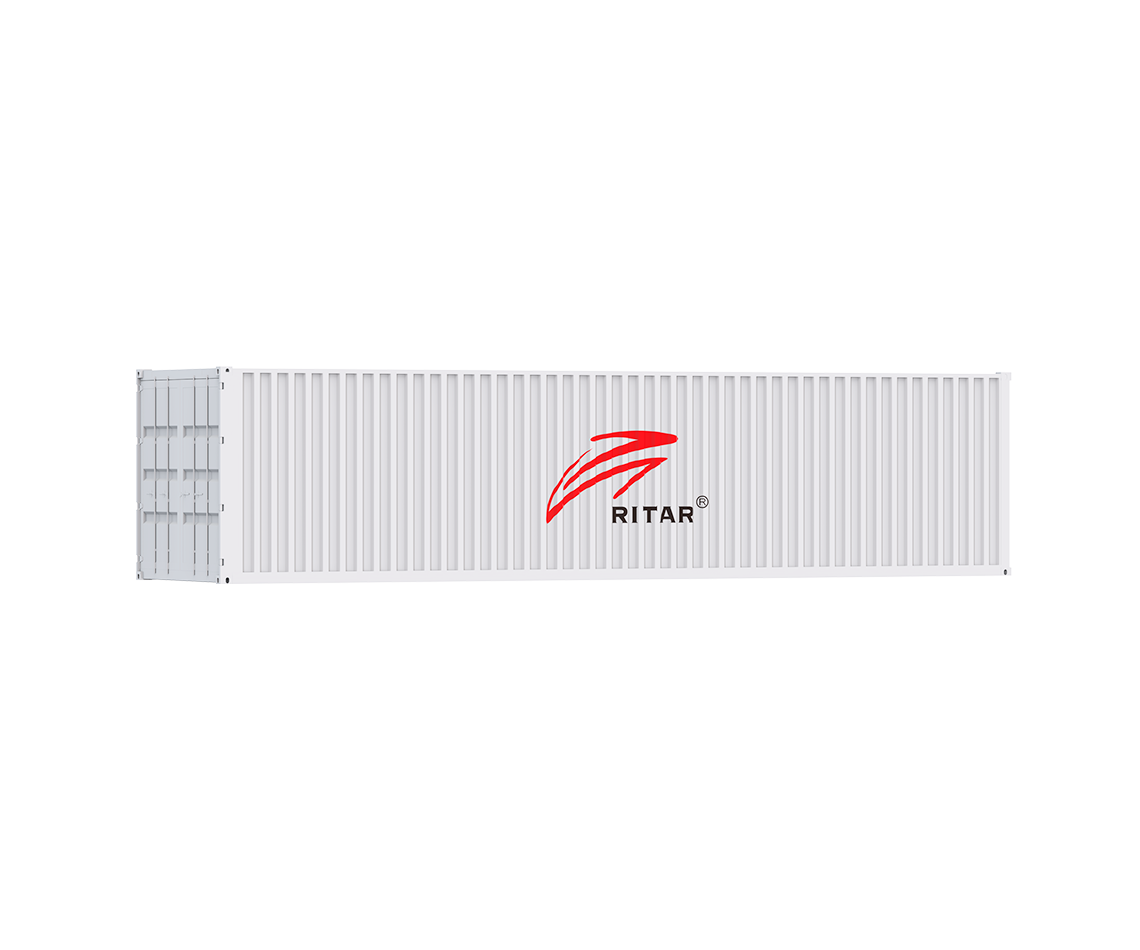

Container Specifications | Customized 40-foot container |
Container size (mm) | 12192*2980*2896 |
Fire Fighting System | Heptafluoropropane |
Protection level | IP54 |
Energy storage inverter parameters | |
Rated power | 250kW |
Overload capacity | 1.2P/5min |
THD | <3% |
Power Factor | ≥0.99 |
Communication Interface | RS485/CAN/RJ45 |
Communication protocol | MODBUS TCP/RTU、104 |
Off-grid switching | Support (optional) |
Maximum inverter efficiency | 98% |
Energy storage battery system | |
Battery Type | Acid-free solid state battery |
Rated voltage | 696V |
Operating voltage range | 661V-835V |
Energy storage rated capacity | 1.034MWh |
Cycle life | 3500 times@80%DOD |
Battery Management System | Yes |
